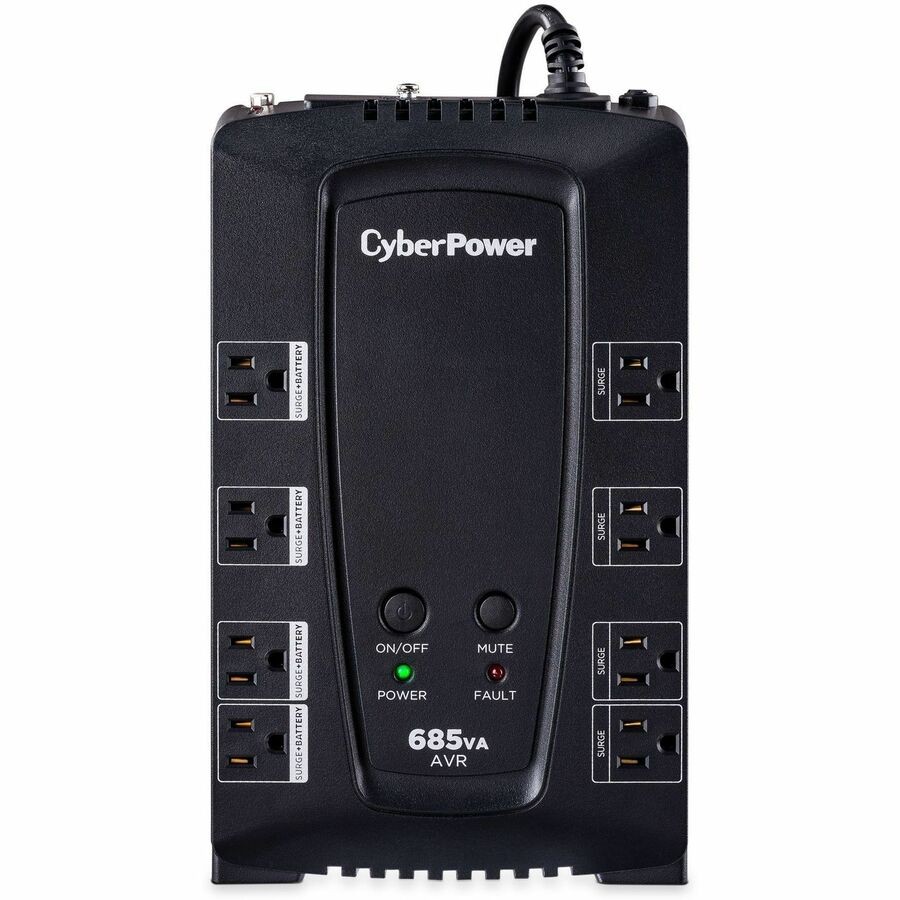

CyberPower CP685AVRG AVR UPS Series Brand: Cyberpower UPC: 0649532006854 Mfr Part #: CP685AVRG

General Information

The CyberPower CP685AVRG uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver battery backup to power connected electronics during a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems.

The CP685AVRG uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit's battery life. CyberPower designed the CP685AVRG to minimize noise for a quieter work environment and run efficiently to reduce power consumption.

With a $125,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of this battery backup with surge protection.

More from the Manufacturer

Technical InformationPlug/Connector Type:NEMA 5-15PReceptacle Type:NEMA 5-15RReceptacle Detail:8 x NEMA 5-15RTransfer Time:4 msApplication/Usage:Desktop ComputerApplication/Usage:Network DeviceApplication/Usage:Home Phone SystemApplication/Usage:Workstation

Power DescriptionLoad Capacity (VA):685 VALoad Capacity (Watt):390 WInput Voltage:120 V ACInput Voltage Range:90 V AC - 140 V ACOutput Voltage:120 V ACWaveform Type:Simulated Sine Wave

Battery InformationBackup/Run Time (Full Load):2 MinuteTypical Battery Recharge Time:8 Hour

Physical Factor:CompactWeight (Approximate):12 lb

CP685AVRG AVR UPS Series

User's Manual

USB Device Cable

PowerPanel Personal Software CD or Free Download Card

Energy Star:YesCountry of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)

Energy Saving : GreenPower UPS™ Bypass Technology

Energy Star Certified : Yes

UPS Topology : Line Interactive

Battery Quantity : 1

Battery Size : 12 V / 7 Ah

Battery Type : Sealed Lead-Acid Battery

Hot Swappable : No

Replacement Battery Cartridge : RB1270B (for serial numbers that with "CXA")

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 2 min

Runtime at Half Load : 11 min

Typical Recharge Time : 8 Hours

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 27.94 x 17.27 x 8.89 (cm)

Physical Dimensions - (WxHxD) (in) : 11 x 6.8 x 3.5 (in)

Physical Dimensions - (WxHxD) (mm) : 279 x 173 x 89 (mm)

Weight (kg) : 5.27

Weight (lb) : 11.62

Shipping Dimensions - (WxHxD) (cm) : 25.4 x 13.97 x 36.83 (cm)

Shipping - Dimensions (WxHxD, in) : 10.0 x 5.5 x 14.5 (in)

Shipping - Dimensions (WxHxD, mm) : 254.0 x 139.7 x 368.3 (mm)

Shipping - Weight (kg) : 5.67

Shipping - Weight (lb) : 12.5

Circuit Breaker : 15 A

Cord Length : 6 ft (1.8 m)

Input Frequency Range : 57 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Input Voltage Range : 90 VAC - 140 VAC

Nominal Input Voltage : 120 VAC

Automatic Voltage Regulation : Single Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 60 Hz ± 1%

On Battery Voltage : 120 VAC ± 5%

On Battery Waveform : Simulated Sine Wave

Outlets - Battery & Surge Protected : 4

Outlets - Surge-Only Protected : 4

Outlets - Total : 8

Outlets - Widely Spaced : 4

Outlet Type COMPUTED : 8 - NEMA 5-15R

Output Power Factor : 0.6

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 4 ms

USB Charge Port : No

VA : 685 VA

Watts : 390 W

Coax Protection RG6 COMPUTED : None

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 1030 J

Coax Protection RG6 COMPUTED : None

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 1030 J

Audible Alarms : Battery Mode

HID Compliant USB Port : Yes

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Serial

Software (Free Download) : PowerPanel® Personal

Color : Black

Form Factor : Compact

Keyhole Mounting Slots : Yes

Material of Construction : Plastic

Operating Relative Humidity : 0 - 90 % (non-condensing)

Operating Temperature : 32 - 95 °F (0 - 35 °C)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $125000

Connected Equipment Guarantee : Lifetime

Extended Warranty Option : WEXT5YR-U1B

Product Warranty : 3 Year Limited Warranty
