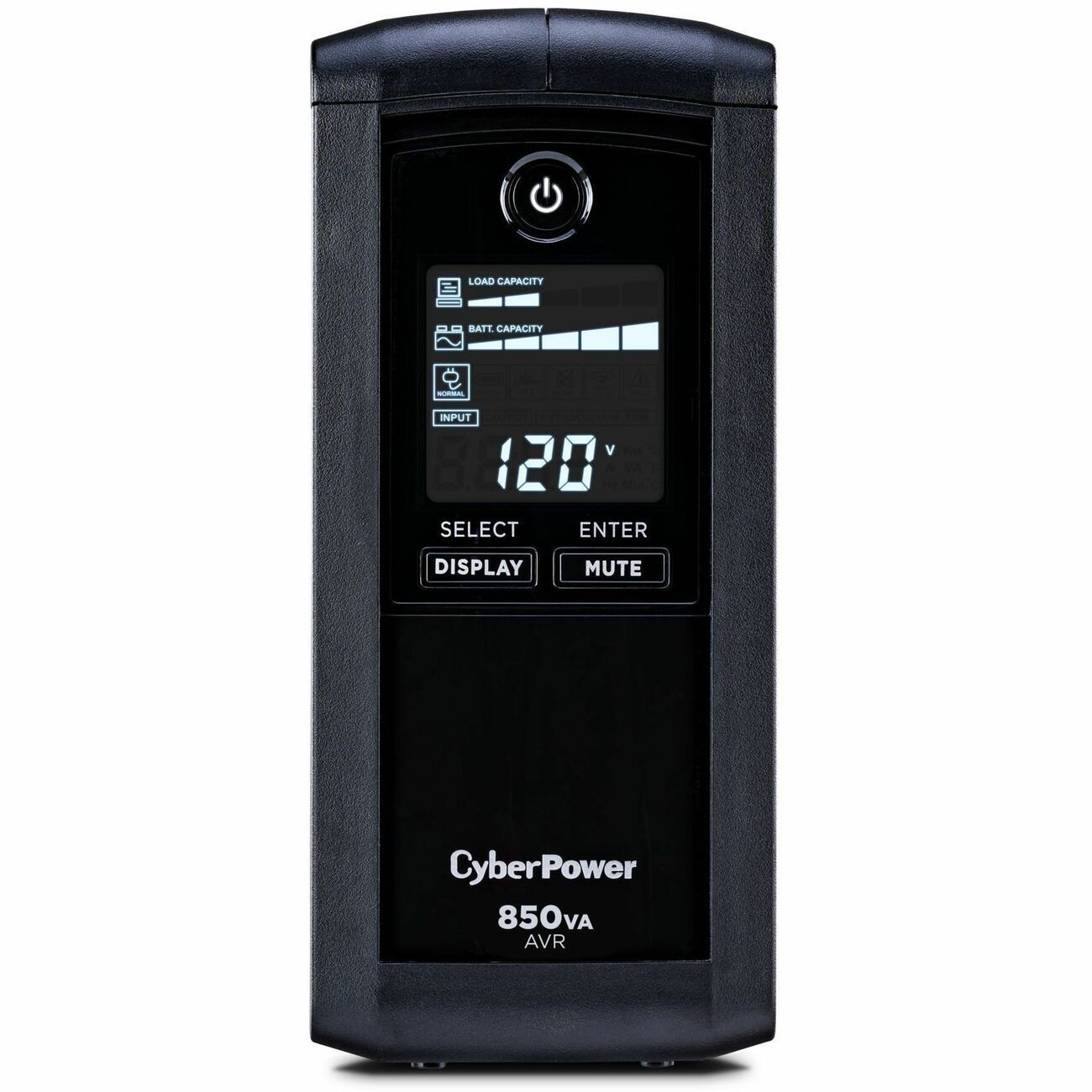

CyberPower CP850AVRLCD Intelligent LCD UPS Systems (CP850AVRLCD) CyberPower CP850AVRLCD Intelligent LCD UPS Systems (CP850AVRLCD)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: Intelligent LCD CP850AVRLCD 850 VA Tower UPS PowerPanel Personal Edition Software CD-ROM
Certifications & Standards: UL1778 cUL 107.1 FCC DOC Class B
Additional Information: Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 1 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1290 Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 3 min Runtime at Half Load : 11 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 9.91 x 22.86 x 25.91 (cm) Physical Dimensions - (WxHxD) (in) : 3.9 x 9 x 10.2 (in) Physical Dimensions - (WxHxD) (mm) : 99 x 229 x 259 (mm) Weight (kg) : 6.8 Weight (lb) : 15 Shipping Dimensions - (WxHxD) (cm) : 17.27 x 30.81 x 35.89 (cm) Shipping - Dimensions (WxHxD, in) : 6.8 x 12.13 x 14.13 (in) Shipping - Dimensions (WxHxD, mm) : 172.72 x 308.1 x 358.9 (mm) Shipping - Weight (kg) : 7.48 Shipping - Weight (lb) : 16.5 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 90 VAC - 142 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 5 Outlets - Surge-Only Protected : 4 Outlets - Total : 9 Outlet Type COMPUTED : 9 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +10% USB Charge Port : No VA : 850 VA Watts : 510 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1080 J Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1080 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Dry Contact Software (Free Download) : PowerPanel® Personal Color : Black Form Factor : Mini-Tower Material of Construction : Plastic Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $250000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U1B Product Warranty : 3 Year Limited Warranty
Environmentally Friendly: Yes
Software Included: PowerPanel Personal Edition Software
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
MODEL- CP850AVRLCD VENDOR- CYBERPOWER FEATURES- CP Series 850VA UPS The CyberPower Systems CP850AVRLCD UPS, designed for mid to high-end computer systems, features dynamic line conditioning and an Intelligent LCD diagnostic display. Real-time system vitals can be viewed from this display and the unit can be conveniently mounted in a workstation cabinet or directly on the desktop. The CP850AVRLCD also guards against surges/spikes, and also offers battery backup in the event of brownouts or total power loss. Automatic Voltage Regulation (AVR) ensures that all your electronics are receiving clean power and stabilizes the voltage to a nominal 120VAC. PowerPanel PE Management Software automatically saves and closes open files and then shuts down the computer system in an intelligent and orderly manner. The CP series are also equipped with full dataline protection: RJ11/RJ45 (phone, fax, Ethernet, network, DSL) and RG-6 coax (DSS, cable modem, satellite, cable TV). "Surge-Only" outlets are perfect for the addition of peripherals such as monitors, printers, scanners, iPods, or CD/DVD players. CyberPower stands behind its projects by offering an industry- leading 3-year warranty, coupled with our award winning Technical Support and a Connected Equipment Guarantees of $250,000. Includes UPS unit, User Manual; Power Management Software; Warranty Card; Phone Cable; USB Cable; Coaxial cable.* Intelligent LCD Diagnostic Display The innovative front panel LCD can be used to display detailed information on the UPS status and current power conditions. The LCD displays 10 different diagnostics: Input Voltage Level, Output Voltage Level, Battery Capacity, Runtime, Load Level, Output Power Frequency, On Battery, Overload, Wiring Fault, and Silent Mode. * Automatic Voltage Regulation (AVR) Incoming AC power is electronically regulated for dips and spikes AVR takes this irregular AC power and converts it into a consistent Sinewave so sensitive electronic equipment can achieve its optimal performance. * EMI/RFI Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or "humming" that occurs over telephone lines or stereo electronics.* USB Connectivity HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X.* PowerPanel PE Smart Management Software In event of a power outage, PowerPanel PE will not only save your open files and will also "Hibernate" your PC to increase the run-time on the UPS unit. PowerPanel is quickly and easily installed on any Windows- based PC and is designed to utilize minimal system resources. Diagnostic screens give immediate visuals of the UPS s status, and also include the following features: Silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.* Audible Alarms Audible tones identify when the unit is running off battery power, unit overloads and low battery.* 3-year Warranty CyberPower will replace damaged units if within 3 years of purchase date. We stand behind our products and guarantee quality. CyberPower also offers a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of Charge!* ISO & Safety Certifications All CyberPower's manufacturing facilities are ISO-9001 Quality Tested. Our products are also certified by the FCC, cUL, and UL.* Windows Vista Compliant Our Power Management software has been fully tested and compliant with Windows 9x, 200x, Server, XP, and Vista. -- SPECIFICATIONS ----------------------------------POWER - Waveform : Simulated Sine Wave Load Capacity : 850 VA Load Capacity : 510 Watts Automatic Voltage Reg. (AVR) : YesINPUT/OUTPUT - Plug/Connector : NEMA 5-15P Input Voltage : 90 - 140 Volts AC Input Frequency : 57 - 62 Hz Output Voltage : 120 Volts AC Output Frequency : 59 - 61Hz Switching Time : 4 msRECEPTACLES/OUTLETS- Total Receptacles : (9) (5) NEMA 5-15R (Battery/Surge) (4) NEMA 5-15R (Surge Only)BATTERY & RUNTIME- Quantity/Type : (1) 12V/8.5Ah Maintenance Free : Yes Sealed Lead-acid : Yes User-replaceable : Yes Hot-swappable : Yes Battery Life : 3-6 Years Runtime (Half Load): 7 Minutes Runtime (Full Load): 2 Minutes Recharge Time : 8 HoursCOMMUNICATIONS & MANAGEMENT- SNMP : N/A Overload Protection: On Utility: Circuit Breaker On Battery: Internal Current Limiting Audible Alarms : On Battery; Low Battery; Overload LEDs : Input Voltage Level, Output Voltage Level, Battery Capacity, Runtime, Load Level, Output Power Frequency, On Battery, Overload, Wiring Fault, Silent Mode. Interfaces : (1) USB 4-pin (1) Serial DB9 Modular Slots : NoneSURGE PROTECTION & FILTERING- Surge Energy Rating: 890 Joules Filtering : EMI/RFI Phone/Network Protection: (1) RJ11/45 Combo (One-in/One-out) Coax/Cable Protection : (1) RG6SOFTWARE - Includes PowerPanel Personal EditionENVIRONMENTAL- Temperature : 32 to 95 degrees F (Operating) Temperature : 5 to 113 degrees F (Non-Operating) Humidity : 0 to 95% Non-condensing (Operating) Humidity : 0 to 95% Non-condensing (Non-Operating) Altitude : 0 to 10,000 feet (Operating) Altitude : 0 to 50,000 feet (Non-Operating)WARRANTY - $250,000 InsuranceAPPROVALS - FCC B, CUL, UL1778POWER CORD - 6 footDIMENSIONS - 4.25"w x 8.75"h x 10.5"d WT.- 15.5 lbs.Package Contents:
- Intelligent LCD CP850AVRLCD 850 VA Tower UPS
- PowerPanel Personal Edition Software CD-ROM
SpecificationPower DescriptionLoad Capacity (Watt)510 WInput Frequency60 HzOutput Power Factor0.6Surge Energy Rating1080 JInput Voltage Range90 V AC - 142 V ACInput Voltage120 V ACCircuit BreakerYesOutput Voltage120 V ACLoad Capacity (VA)850 VAWaveform TypeSimulated Sine WavePhysical CharacteristicsForm FactorMini-towerWeight (Approximate)15 lbProduct ColorBlackHeight9"Color Connected Equipment Guarantee$250000 LifetimeLimited Warranty3 YearControls/IndicatorsStatus Indicators Power On Wiring Fault Battery InformationBackup/Run Time (Full Load)3 MinuteNumber of Batteries1Battery Capacity9000 mAhReplaceable BatteryYesBattery ChemistryLead AcidHot SwappableYesBattery Size12VBackup/Run Time (Half Load)11 MinuteTypical Battery Recharge Time8 HourBattery CharacteristicsSealedDisplay & GraphicsDisplayLCDGeneral InformationBrand NameCyberPowerMarketing Information A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP850AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP850AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850AVRLCD comes with a three-year warranty (including coverage of batteries) and a $250,000 Connected Equipment Guarantee. More from the Manufacturer Product TypeLine-interactive UPSProduct NameCP850AVRLCD Intelligent LCD UPS SystemsManufacturerCyberPower Systems, IncManufacturer Part NumberCP850AVRLCDProduct ModelCP850AVRLCDProduct SeriesIntelligent LCD UPSTitleProduct TitleCyberPower CP850AVRLCD Intelligent LCD UPS SystemsTechnical InformationReceptacle TypeNEMA 5-15RReceptacle Detail9 x NEMA 5-15REMI/RFI Noise FilterYesNumber of Surge-only Outlets4Number of Battery & Surge Outlets5Transfer Time4 msEnergy SavingGreenPower UPS™ Bypass TechnologyOverload ProtectionYesPlug/Connector TypeNEMA 5-15PCord Length6 ftDataline Protection
- Desktop Theater
- Home Phone System
- Personal ManagementDry ContactAlarm
- Battery Mode
- Low PortYesUSB (HID Compliant) PortYesEnvironmental ConditionsOperating Humidity0% - 90%Storage Relative Humidity0% - 95%Maximum Storage Elevation50000 ftMaximum Operating Temperature104°F (40°C)Minimum Operating Temperature32°F (0°C)Storage Temperature5°F (-15°C) - 113°F (45°C)Maximum Operating Elevation10000 ft Shipping
