CyberPower EC650LCD Ecologic UPS Systems (EC650LCD) CyberPower EC650LCD Ecologic UPS Systems (EC650LCD)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Certifications & Standards: UL1778 FCC Part 15 Class B CSA C22.2 NO. 107.3

Additional Information: Energy Saving : GreenPower UPS™ High-Efficiency Energy Star Certified : Yes UPS Topology : Standby Battery Quantity : 1 Battery Size : 12 V Battery Type : Sealed Lead-Acid Battery Field-serviceable Battery : Replaceable by qualified technician Runtime at Full Load : 2.8 min Runtime at Half Load : 8.4 min Typical Recharge Time : 8 Hours User Replaceable Battery : No Physical Dimensions - (WxHxD) (cm) : 26.92 x 7.87 x 14.99 (cm) Physical Dimensions - (WxHxD) (in) : 10.6 x 3.1 x 5.9 (in) Physical Dimensions - (WxHxD) (mm) : 269 x 79 x 150 (mm) Weight (kg) : 2.9 Weight (lb) : 6.4 Shipping Dimensions - (WxHxD) (cm) : 10.87 x 20.65 x 33.66 (cm) Shipping - Dimensions (WxHxD, in) : 4.28 x 8.13 x 13.25 (in) Shipping - Dimensions (WxHxD, mm) : 108.71 x 206.5 x 336.55 (mm) Shipping - Weight (kg) : 3.4 Shipping - Weight (lb) : 7.5 Circuit Breaker : 15 A Cord Length : 5 ft (1.5 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA 5-15P Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% (auto-sensing) On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 4 Outlets - Eco Controlled : 3 Outlets - Surge-Only Protected : 4 Outlets - Total : 8 Outlets - Widely Spaced : 2 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 650 VA Watts : 390 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 526 J EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 526 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Software (Free Download) : PowerPanel® Personal Color : Black Form Factor : Compact Keyhole Mounting Slots : Yes Material of Construction : Plastic Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $100000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U1A Product Warranty : 3 Year Limited Warranty

Energy Star: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Product Description

This item is brand-new, factory sealed.

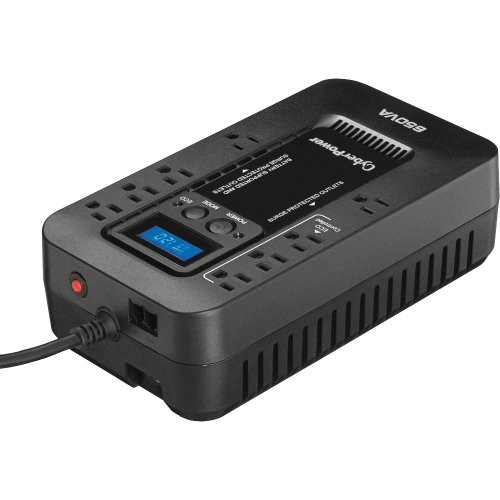

The CyberPower EC Series EC650LCD ecological uninterruptible power supply (UPS) safeguards PCs and other electronics (monitors, cable DSL/ modems, VoIP routers, and home theater devices) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its composite integrated circuitry offers advanced protection. Patented GreenPower UPS™ advanced circuitry reduces UPS energy costs and is an ENERGY STAR listed product. The multifunction diagnostic LCD provides users the ability to check UPS operating status and assist in trouble-shooting power anomalies.

The CyberPower EC650LCD features ECO technology with three surge protected ECO outlets. When ECO mode is on and the battery backup detects that your computer is off (or in Sleep mode), computer peripherals connected to the ECO outlets will be turned off (USB connection required). This provides additional reductions in power usage and greater energy savings.

Package Contents:

• EC650G Ecologic 650VA/390W Energy Efficient LCD Desktop ECO UPS
• PowerPanel Personal Edition Software CD
• USB Cable
• User Manual
• Registration Card

SpecificationPower DescriptionLoad Capacity (Watt)390 WInput Frequency60 HzOutput Power Factor0.6Surge Energy Rating526 JInput Voltage120 V ACCircuit BreakerYesOutput Voltage120 V ACLoad Capacity (VA)650 VAWaveform TypeSimulated Sine WaveOutput Frequency

• 50 Hz
• 60 Hz

Physical CharacteristicsForm FactorCompactWeight (Approximate)6.39 lbProduct ColorBlackHeight3.11"Color Connected Equipment Guarantee$100000 LifetimeAdditional Warranty Information Three-year warranty (including coverage of batteries) Limited Warranty3 YearControls/IndicatorsStatus Indicators LED Indicators: Power On ECO On/Of Battery InformationBackup/Run Time (Full Load)2.80 MinuteNumber of Batteries1Replaceable BatteryNoBattery ChemistryLead AcidBattery Size12VBackup/Run Time (Half Load)8.40 MinuteTypical Battery Recharge Time8 HourBattery CharacteristicsSealedDisplay & GraphicsDisplayLCDGeneral InformationBrand NameCyberPowerMarketing Information A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee. More from the Manufacturer Product TypeStandby UPSProduct NameEC650LCD Ecologic UPS SystemsManufacturerCyberPower Systems, IncManufacturer Part NumberEC650LCDProduct ModelEC650LCDProduct SeriesEcologic UPSTitleProduct TitleCyberPower EC650LCD Ecologic UPS SystemsTechnical InformationReceptacle TypeNEMA 5-15RReceptacle Detail8 x NEMA 5-15REMI/RFI Noise FilterYesNumber of Surge-only Outlets4Number of Battery & Surge Outlets4Surge SuppressionYesTransfer Time4 msEnergy SavingGreenPower UPS™ High-EfficiencyOverload ProtectionYesPlug/Connector TypeNEMA 5-15PCord Length5 ftApplication/Usage

• Desktop Theater
• Home Phone System
• Personal Electronic

FeaturesAudible AlarmManagementAlarm

• Battery Mode
• Low (HID Compliant) PortYesEnvironmental ConditionsOperating Humidity0% - 90%Storage Relative Humidity0% - 95%Maximum Storage Elevation50000 ftMaximum Operating Temperature104°F (40°C)Minimum Operating Temperature32°F (0°C)Storage Temperature5°F (-15°C) - 113°F (45°C)Maximum Operating Elevation10000 ft Shipping
