The CyberPower M1100XL medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M1100XL has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M1100XL also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel. The M1100XL medical-grade UPS is covered by a three-year warranty (including coverage of batteries) and a $400,000 Connected Equipment Guarantee. NOTE: This UPS is not intended for use in critical care or life support applications.

• About Us
• Payment Info
• Shipping Info
• Customer Support
• response

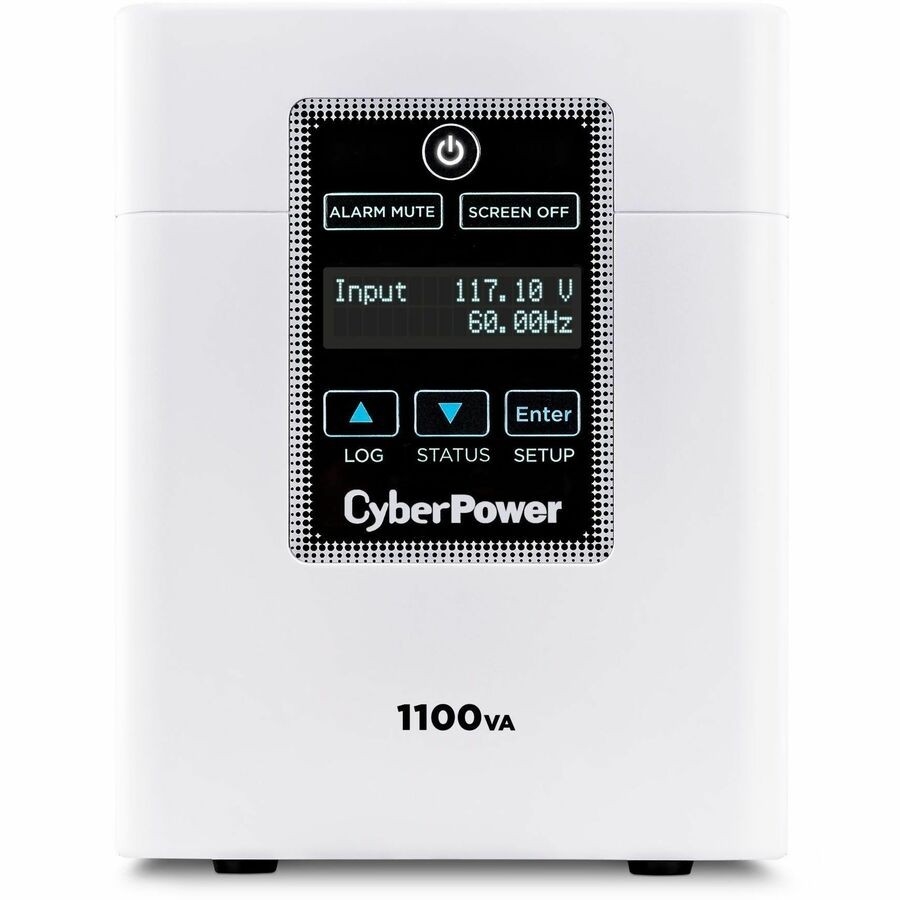

CyberPower M1100XL Medical UPS Systems Brand: Cyberpower UPC: 0649532618712 Mfr Part #: M1100XL

General InformationThe CyberPower M1100XL medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M1100XL has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M1100XL also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.

Technical InformationAVR:YesPlug/Connector Type:NEMA 5-15P-HGReceptacle Type:NEMA 5-15R-HGReceptacle Detail:6 x NEMA 5-15R-HGNumber of Battery & Surge Outlets:6Overload Protection:YesCord Length:6 ftTransfer Time:10 msEMI/RFI Noise Filter:YesEnergy Saving:GreenPower UPS™ Bypass EquipmentSurge Suppression:YesFeatures:Audible Alarm

Power DescriptionLoad Capacity (VA):1100 VALoad Capacity (Watt):880 WInput Voltage:120 V ACInput Voltage Range:90 V AC - 150 V ACOutput Voltage:120 V ACInput Frequency:57 HzInput Frequency:63 HzOutput Frequency:60 HzWaveform Type:Simulated Sine WaveSurge Energy Rating:1445 JCircuit Breaker:YesOutput Power Factor:0.8

Display & GraphicsDisplay:LCD

LED Indicators

Power On

Battery InformationNumber of Batteries:3Battery Characteristics:SealedBattery Chemistry:Lead AcidBattery Size:12VBattery Capacity:9000 mAhBackup/Run Time (Full Load):10 MinuteBackup/Run Time (Half Load):25 MinuteTypical Battery Recharge Time:8 HourHot Swappable:YesReplaceable Battery:Yes

Physical CharacteristicsColor Family:WhiteProduct Factor:Mini-towerWeight (Approximate):54 lbCertifications & Standards:UL1778 (USA)

M1100XL Medical Grade 1100VA/880W UPS

User Manual

USB A+B Type Cable

Serial Cable

Additional Information:

Energy Saving : GreenPower UPS™ Bypass Technology

UPS Topology : Line Interactive

Battery Quantity : 3

Battery Size : 12 V / 9 Ah

Battery Type : Sealed Lead-Acid Battery

Hot Swappable : Yes

Replacement Battery Cartridge : RB1290X3B

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 10 min

Runtime at Half Load : 25 min

Typical Recharge Time : 8 Hours (0% to 90% charged)

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 17.02 x 22.1 x 43.18 (cm)

Physical Dimensions - (WxHxD) (in) : 6.7 x 8.7 x 17 (in)

Physical Dimensions - (WxHxD) (mm) : 170 x 221 x 432 (mm)

Weight (kg) : 24.49

Weight (lb) : 54

Shipping Dimensions - (WxHxD) (cm) : 31.6 x 35.99 x 57.91 (cm)

Shipping - Dimensions (WxHxD, in) : 12.44 x 14.17 x 22.8 (in)

Shipping - Dimensions (WxHxD, mm) : 315.98 x 359.92 x 579.12 (mm)

Shipping - Weight (kg) : 10.34

Shipping - Weight (lb) : 22.8

Adjustable Voltage Range : 88 - 150 VAC

Circuit Breaker : 10 A

Cord Length : 6 ft (1.8 m)

Input Frequency Range : 57 Hz - 63 Hz

Input Plug Type : NEMA 5-15P-HG

Input Voltage Range : 90 VAC - 150 VAC

Nominal Input Voltage : 120 VAC

Automatic Voltage Regulation : Single Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 60 Hz ± 1%

On Battery Voltage : 120 VAC ± 5%

On Battery Waveform : Simulated Sine Wave

Outlets - Battery & Surge Protected : 6

Outlets - Total : 6

Outlet Type COMPUTED : 6 - 5-15R-HG

Output Power Factor : 0.8

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : < 10 ms

USB Charge Port : No

VA : 1100 VA

Watts : 880 W

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 1445 J

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 1445 J

Audible Alarms : Battery Mode

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Serial

SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205

Software (Free Download) : PowerPanel® Business

Color : White

Form Factor : Mini-Tower

Form Factors Supported : Direct Plug

Material of Construction : Metal

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 104 °F (0 - 40 °C)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

Leakage Current (Max Shock Potential) :
