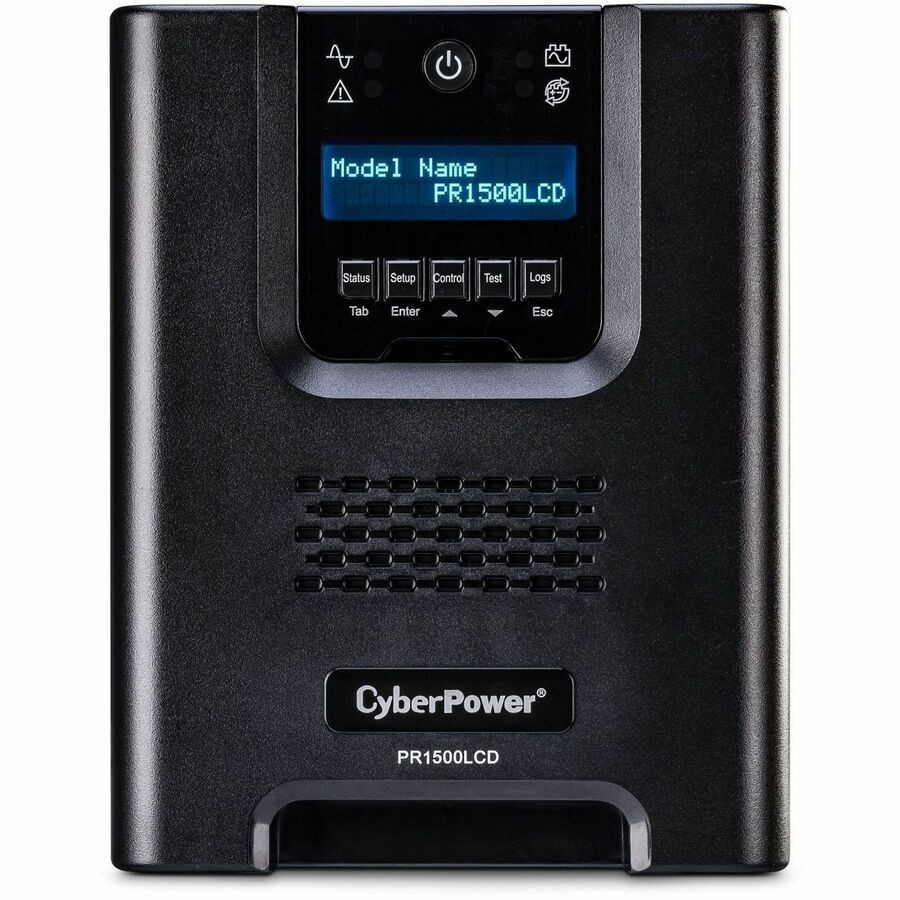

CyberPower PR1500LCD Smart App Sinewave UPS Systems Brand: Cyberpower UPC: 0649532602513 Mfr Part #: PR1500LCD

General Information

A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR1500LCD provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. ThePR1500LCD comes with a three-year warranty and a $375,000 Connected Equipment Guarantee.

More from the Manufacturer

Technical InformationAVR:YesPlug/Connector Type:NEMA 5-15PReceptacle Type:NEMA 5-15RReceptacle Detail:8 x NEMA 5-15RNumber of Battery & Surge Outlets:8Number of Critical Load Outlets:4Transfer Time:4 msOverload Protection:YesEnergy Saving:GreenPower UPS™ Bypass DeviceApplication/Usage:Network class="product_spacer">

Power DescriptionLoad Capacity (VA):1500 VAInput Voltage:120 V ACInput Voltage Range:78 V AC - 149 V ACOutput Voltage:120 V ACInput Frequency:60 HzOutput Frequency:60 HzWaveform Type:Sine WaveSurge Energy Rating:1030 J

Power On

Wiring Fault

AC Power

Battery Power

Replace Battery

Battery InformationNumber of Batteries:2Battery Chemistry:Lead AcidBattery Size:12VBattery Capacity:17000 mAhBackup/Run Time (Full Load):4.70 MinuteBackup/Run Time (Half Load):15.10 MinuteTypical Battery Recharge Time:3 HourReplaceable Battery:Yes

Physical CharacteristicsColor Family:BlackProduct Color:BlackForm (Approximate):54 lb

Smart App Sinewave PR1500LCD 1500VA UPS

PowerPanel Business Edition Software CD

User Manual

Functional Setup Guide

USB Cable

Serial Cable

Emergency Power Off (EPO) Cable

Registration Card

Additional Information:

Active PFC Compatible : Yes

Energy Saving : GreenPower UPS™ Bypass Technology

Energy Star Certified : Yes

UPS Topology : Line Interactive

Battery Quantity : 2

Battery Size : 12 V / 17 Ah

Battery Type : Sealed Lead-Acid Battery

Hot Swappable : Yes

Replacement Battery Cartridge : RB12170X2A

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 4.7 min

Runtime at Half Load : 15.1 min

Typical Recharge Time : 3 hours - Quick Charge Mode

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 17.02 x 22.1 x 43.18 (cm)

Physical Dimensions - (WxHxD) (in) : 6.7 x 8.7 x 17 (in)

Physical Dimensions - (WxHxD) (mm) : 170 x 221 x 432 (mm)

Weight (kg) : 24.49

Weight (lb) : 54

Shipping Dimensions - (WxHxD) (cm) : 31.75 x 35.56 x 57.79 (cm)

Shipping - Dimensions (WxHxD, in) : 12.5 x 14.0 x 22.75 (in)

Shipping - Dimensions (WxHxD, mm) : 317.5 x 355.6 x 577.85 (mm)

Shipping - Weight (kg) : 27.49

Shipping - Weight (lb) : 60.60

Adjustable Voltage Range : 75 - 154 VAC

Circuit Breaker : 15 A

Cord Length : 6 ft (1.8 m)

Input Frequency Range : 47 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Input Voltage Range : 78 VAC - 149 VAC

Nominal Input Voltage : 120 VAC

Plug Style : Straight

Automatic Voltage Regulation : Double Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 50/60 Hz ± 0.1Hz

On Battery Voltage : 120 VAC ± 5%

On Battery Waveform : Sine Wave

Outlets - Battery & Surge Protected : 8

Outlets - Critical Load : 4

Outlets - Total : 8

Outlet Type COMPUTED : 8 - NEMA 5-15R

Output Power Factor : 1

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 4 ms

USB Charge Port : No

VA : 1500 VA

Watts : 1500 W

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 1030 J

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 1030 J

Audible Alarms : Battery Mode

Emergency Power Off (EPO) Port : Yes

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Serial

SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205

Software (Free Download) : PowerPanel® Business

Color : Black

Form Factor : Mini-Tower

Material of Construction : Metal

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 104 °F (0 - 40 °C)

Storage Elevation : 0 - 50000 ft (0 - 15239 m)

Storage Relative Humidity : 0 - 95% (non-condensing)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $375000

Connected Equipment Guarantee : Lifetime

Extended Warranty Option : WEXT5YR-U4A

Product Warranty : 3 Year Limited Warranty

Certifications & Standards:

• UL1778
• cUL 107.3
• FCC DOC Class A

Software Included:PowerPanel Business Edition SoftwareEnergy Star:NoCountry of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
