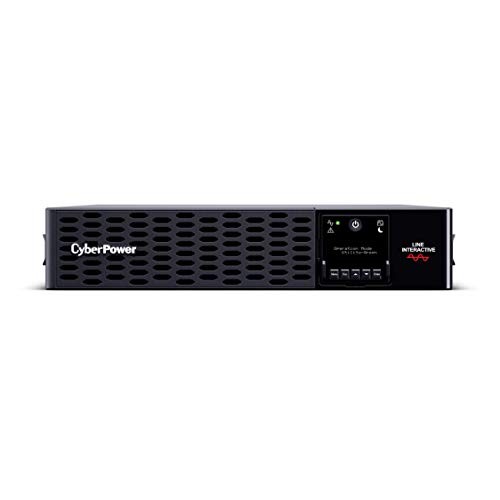

CyberPower PR2200RTXL2UHVAN Smart App Sinewave UPS 2200VA Rack Tower CyberPower PR2200RTXL2UHVAN Smart App Sinewave UPS 2200VA Rack TowerCertifications & Standards: CE UL1778 FCC Class A VCCI

Additional Information: Active PFC Compatible : Yes Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 8 Battery Size : 12 V / 6 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U03 Hot Swappable : Yes Replacement Battery Cartridge : RB1260X8 Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 5.3 min Runtime at Half Load : 15.2 min Typical Recharge Time : 3 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 62.99 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 24.8 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 630 (mm) Weight (kg) : 42.0 Weight (lb) : 92.6 Shipping Dimensions - (WxHxD) (cm) : 57.15 x 26.67 x 75.57 (cm) Shipping - Dimensions (WxHxD, in) : 22.5 x 10.5 x 29.75 (in) Shipping - Dimensions (WxHxD, mm) : 571.5 x 266.7 x 755.65 (mm) Shipping - Weight (kg) : 13.49 Shipping - Weight (lb) : 29.75 Adjustable Voltage Range : 148 - 288 VAC Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA L6-20P Input Voltage : 200 - 240 VAC Input Voltage Range : 131 VAC - 302 VAC Nominal Input Voltage : 120 VAC Plug Style : Straight (Twist Lock) Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 200/208/220/230/240 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 6 Outlets - Critical Load : 2 Outlets - Total : 6 Outlet Type COMPUTED : 4 - NEMA 6-20R Output Power Factor : 1 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 2200 VA Watts : 2200 W EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1 in / 1 out Surge Suppression (Joules) : 2430 J EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1 in / 1 out Surge Suppression (Joules) : 2430 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1m from surface of unit : 57.5 dBA Online Thermal Dissipation : 83.1 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty

Environmentally Friendly: Yes

Software Included: PowerPanel® Business Edition

Energy Star: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: Philippines

Product Description

This item is brand-new, factory sealed.

CyberPower PR2200RTXL2UHVAN Smart App Sinewave UPS System, 2200VA/2200W, 6 Outlets, 2U Rack/Tower, RMCARD205 Pre-Installed; EBM Option

• 2200VA/2200W Smart App Sinewave Battery Backup Uninterruptible Power Supply (UPS) System uses sine wave output to support Active PFC & conventional power supplies; SNMP/HTTP remote monitoring with pre-installed RMCARD205
• 4 NEMA 6-20R & 2 NEMA L6-20R BATTERY BACKUP AND SURGE PROTECTED OUTLETS; INPUT: Plug Type NEMA L6-20P with 10 FT power cord
• TILTABLE, ROTATABLE MULTIFUNCTION LCD PANEL: Provides immediate status and control; EBM OPTION: Extended Battery Module BP48VP2U03 can be added for expanded runtimes
• AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
• 3 YEAR WARRANTY INCLUDING THE BATTERIES; $400,000 Connected Equipment Guarantee and FREE PowerPanel Business Edition Management Software (Download)

• Product Dimensions: 24.8 x 17.1 x 3.4 inches
• Item Weight: 112 pounds

Size:2200VA HV NET

The PR2200RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology surge protection and battery backup CyberPowers Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment The Smart App Sinewave PR2200RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR) which corrects minor power fluctuations without switching to battery power The enhanced chassis design with an easy-to-access toolless front panel captive screws for battery panel access and color-coded rear panel make battery changes and installations simple and fast The PR2200RTXL2UHVAN also has an innovative LCD panel that rotates 90 tilts for a better viewing angle and provides information on 47 different settings including UPS stats UPS setup and control management and testing options This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system With a 400 000 connected equipment and a three-year you can trust CyberPowers commitment to the quality of the PR2200RTXL2UHVAN

SpecificationPower DescriptionLoad Capacity (Watt)2200 WInput Frequency

• 47 Hz
• 63 Hz

Output Power Factor1Surge Energy Rating2430 JInput Voltage Range

• 200 V AC - 240 V AC
• 131 V AC - 302 V AC

Input Voltage

• 120 V AC
• 230 V AC

Output Voltage

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Load Capacity (VA)2200 VAWaveform TypeSine WaveOutput Frequency

• 50 Hz
• 60 Hz

Physical CharacteristicsForm FactorRack/TowerWeight (Approximate)92.59 lbProduct ColorBlackHeight3.4"Color FamilyBlackWidth17.1"Rack Height2UDepth24.8"WarrantyDirectly Connected Equipment Guarantee$400000 LifetimeLimited Warranty3 YearControls/IndicatorsStatus Indicators Multifunction LCD Panel: 47 Settings (27 setup and control items + 20 status updates and log menus) LED Indicators: Power on Line mode Battery mode Fault Night mode Battery InformationBackup/Run Time (Full Load)5.30 MinuteNumber of Batteries8Battery Capacity6000 mAhReplaceable BatteryYesBattery ChemistryLead AcidBattery Size12VBackup/Run Time (Half Load)15.20 MinuteTypical Battery Recharge Time3 HourBattery CharacteristicsSealedDisplay & GraphicsDisplayLCDGeneral InformationBrand NameCyberPowerMarketing Information The PR2200RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR2200RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UHVAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UHVAN. More from the Manufacturer Product TypeLine-interactive UPSProduct NamePR2200RTXL2UHVAN Smart App Sinewave UPS SystemsManufacturerCyberPower Systems, IncManufacturer Part NumberPR2200RTXL2UHVANProduct ModelPR2200RTXL2UHVANProduct SeriesNew Smart App Sinewave UPSTitleProduct TitleCyberPower PR2200RTXL2UHVAN Smart App Sinewave UPS SystemsTechnical InformationReceptacle Type

• NEMA 6-20R
• NEMA L6-20R

Receptacle Detail

• 4 x NEMA 6-20R
• 2 x NEMA L6-20R

Number of Critical Load Outlets2EMI/RFI Noise FilterYesNumber of Battery & Surge Outlets6Transfer Time4 msEnergy SavingGreenPower UPS™ Bypass TechnologyOverload ProtectionYesPlug/Connector TypeNEMA L6-20PCord Length10 ftCircuit Breaker Current Rating20 ADataline ProtectionRJ-45AVRYesManagementNetwork ManagementSNMP/HTTP Remote MonitoringAlarm

• Over Charge
• Overheat
• Low Mode

Interfaces/PortsNetwork (RJ-45)YesUSBYesEPO PortYesSerial PortYesUSB (HID Compliant) PortYesEnvironmental ConditionsThermal Dissipation24.35 WStorage Relative Humidity0% - 95%Maximum Storage Elevation50000 ftSound Emission (A-Weighted)57.5 dB(A)Maximum Operating Temperature104°F (40°C)Storage Temperature5°F (-15°C) - 113°F (45°C)Maximum Operating Elevation10000 ft Shipping
