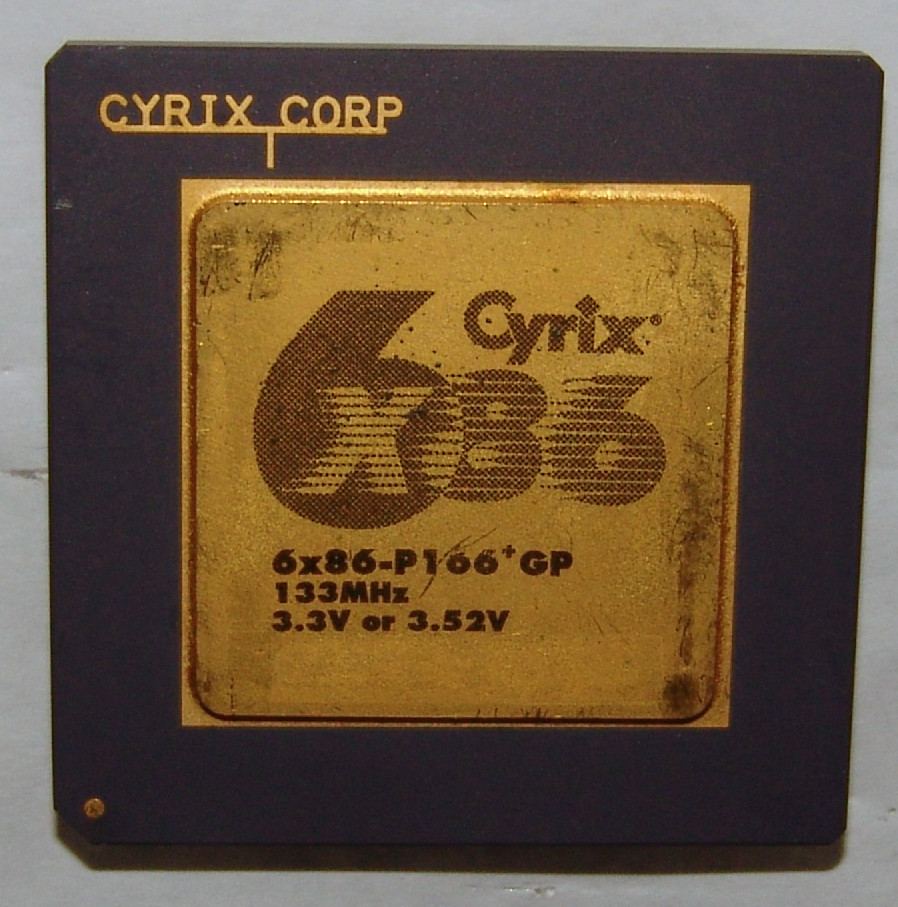

Cyrix 6x86-P166+GP CPU
This CPU is a Cyrix 6x86-P166+GP CPUand was pulled from a working system.
It was tested on a Super Socket 7 mainboard and is working fine.
This Cyrix 6x86 P166+GP CPU is about as fast as a Pentium 90
and is the optimal choice if you want to build a DOS retro system,
e.g. to play Monkey Island(tm) and don´t want to mess with Socket 3 mainboards and instead want to use your good and trusted
socket 5 or 7 mainboard.
Under the picture you can find the specs of this CPU.
General informationTypeCPU / MicroprocessorFamilyCyrix 6x86CPU part number
- 6x86-P166+GP is an OEM/tray microprocessor
Frequency133 MHz (rated 166)Bus speed66 MHzClock multiplier2Package296-pin Staggered Ceramic Pin Grid Array
1.952" x 1.952" (4.96 cm x 4.96 cm)SocketSPGA296Introduction date5-Feb-96Price at introduction$621Architecture / MicroarchitectureInstruction setx86Data width32 bitData bus width64 bitThe number of CPU cores1The number of threads1Floating Point UnitIntegratedLevel 1 cache size256 bytes primary code cache
16 KB 4-way set associative unified code/data write-back cachePhysical memory4 GBPipelineDual 7-stage integerLow power features
- Suspend mode
- Stop clock mode
- System Management mode
I/O ports65536Electrical / Thermal parametersV core3.3V
3.52VMinimum/Maximum operating temperature0°C - 70°CTypical/Maximum power dissipation18.1 Watt / 21.8 Watt (at 3.3 V) International shipping
