📜 A Plug-and-Play ISA Network Card from the Late 1990s

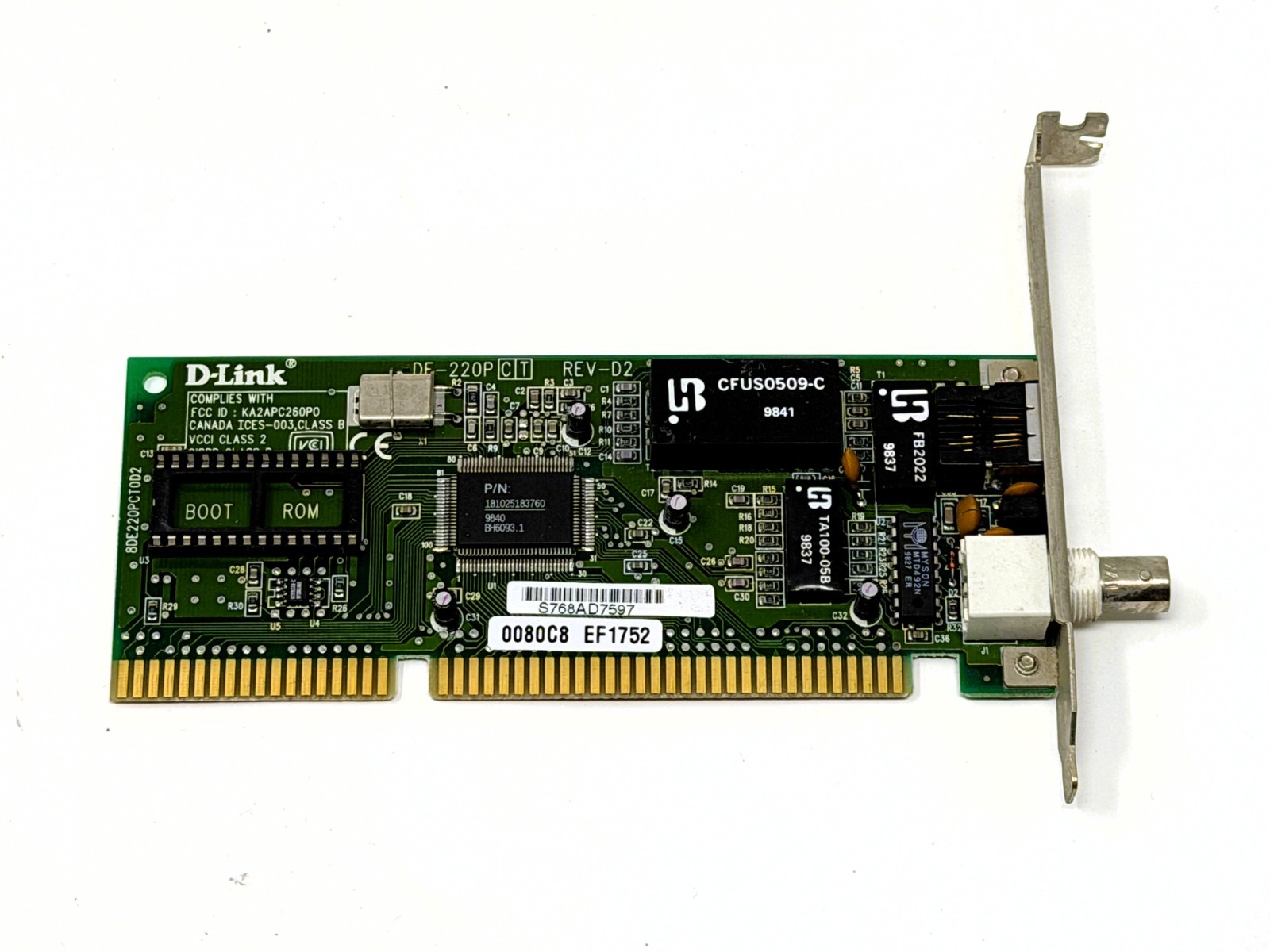

Offered here is a D-Link DE-220PCT Rev. D2 16-bit ISA Ethernet adapter designed for IBM-compatible personal computers.

This card combines the two principal Ethernet connections found in desktop computers of the period:

• RJ45 for 10BASE-T twisted-pair Ethernet
• BNC for 10BASE2 Thin Ethernet coax

The dual-connector design made the card useful during the transition away from coaxial networking. A computer equipped with the DE-220PCT could be used on a conventional twisted-pair LAN or an older Thin Ethernet installation without changing adapters.

⚙️ Plug-and-Play ISA and NE2000 Compatibility

The DE-220P family was designed to simplify ISA network configuration by supporting Plug-and-Play and software-controlled resource settings.

Its NE2000-compatible architecture provided support for a broad range of DOS, Windows and other legacy networking environments. It represents a later, more convenient generation of ISA networking than earlier cards configured entirely through physical jumpers.

Visible hardware includes:

• 16-bit ISA host interface
• RJ45 10BASE-T network port
• BNC 10BASE2 network port
• Onboard network controller
• Transformer and support circuitry
• Status indicator
• Socket for an optional network boot ROM

💾 Unpopulated Boot-ROM Socket

The large DIP socket at position U3 is intended for an optional network boot ROM.

The socket is empty. The green words “BOOT ROM” visible in the photographs are printed directly on the circuit board underneath the open socket; they are not labels on an installed chip.

No boot ROM is installed or included.

An appropriate compatible ROM could historically be used for a diskless workstation or network-boot installation, while conventional systems would load their network driver from local storage.

🔧 Identification and Technical Details

• Manufacturer: D-Link
• Model: DE-220PCT
• PCB Marking: DE-220P C/T
• PCB Revision: Rev. D2
• Interface: 16-bit ISA
• Maximum Network Speed: 10 Mbps
• Network Ports: RJ45 and BNC
• Network Types: 10BASE-T and 10BASE2
• Architecture: Plug and Play/software configuration
• Boot-ROM Position: Socket present, unpopulated
• FCC ID: KA2APC260P0
• Network Address: 0080C8 EF1752
• Serial Number: S768AD7597
• Controller Marking: P/N 181025183760 / 9840 / BH6093.1
• Assembly Location: Singapore

🖥️ Intended Uses

This card is appropriate for:

• DOS networking
• Windows 3.x, Windows 95 and Windows 98 systems
• Novell NetWare clients
• 386, 486 and early Pentium restorations
• NE2000-compatible networking projects
• 10BASE2 coaxial Ethernet demonstrations
• Conventional 10BASE-T retro LAN systems
• Period-correct workstation restoration
• Vintage networking collections
• Museum or educational displays

D-Link’s archived DE-220 software and documentation remain available through the company’s legacy support resources.

📦 What Is Included

Included:

• One D-Link DE-220PCT Ethernet adapter
• Original full-height mounting bracket
• All permanently installed components shown in the photographs

Not included:

• Boot ROM
• Driver disks or software
• Printed documentation
• RJ45 cable
• Coaxial cable
• BNC T-connector
• BNC terminators
• Original retail packaging
• Computer or other accessories

💗 Physical Condition

The circuit board appears clean and complete. The network controller, transformer modules, oscillator, configuration hardware, RJ45 connector, BNC connector and empty boot-ROM socket are present.

The ISA edge contacts show normal insertion wear. The metal mounting bracket has age-related discoloration and handling marks.

Please examine all photographs carefully. They show the exact card offered and form an important part of the condition description.

📦 Shipping and Packaging

The adapter will be enclosed in anti-static protective material, supported against bending and packed inside a sturdy shipping carton. Particular care will be taken to protect the circuit board, ISA edge connector, empty ROM socket, mounting bracket and network ports.
