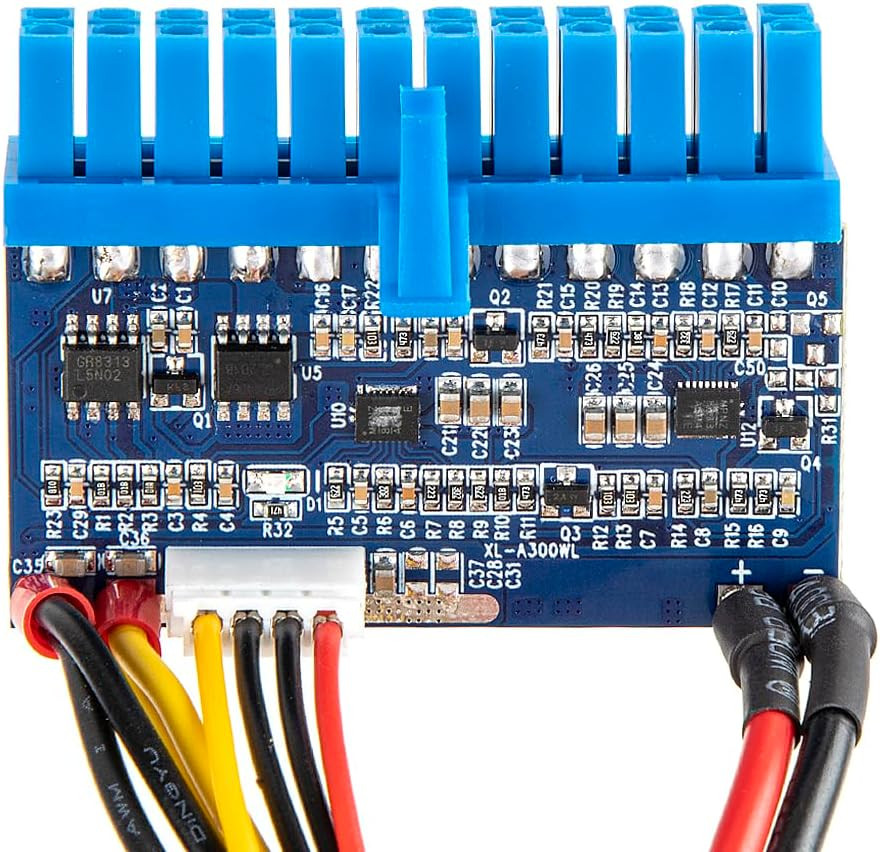

DC 12V 300W 24Pin ATX Connect with Motherboard Mini ITX Power Supply Pico PSU Module for PC GamerDescription Power Supply Design Semi-Modular Warranty Description 6 MONTHS Current Rating 25 Amps Cooling Method Air Item Dimensions 2.09 x 0.39 x 1.57 inches Upper Temperature Rating 55 Degrees Celsius Wattage 300 watts Compatible Devices function(f) {var { P.when('A').execute(function(A){ function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc. See more Connector Type Used on Cable ATX Connector Type ATX Model Number PS002d Model Name PS002d Output Wattage 260 Watts Lower Temperature Rating 5 Degrees Celsius Item dimensions L x W x H 2.09 x 0.39 x 1.57 inches Minimum Input Voltage 12 Volts Form Factor Mini ITX System Bus Connector Type 24 Pin ATX Maximum Input Voltage 12.6 Volts (DC)

• INPUT VOLTAGE CURRENT RANGE：28.0A Max @11.4VDC
• INPUT SURGING CURRENT：12.0Amax@12VDC
• WORK EFFICIENCY：≥85%
• Working temperature/humidity-5℃to 55℃/ 45%-75%

INPUT REQUIRED: INPUT VOLTAGE RANGE：11.4VDC—12.6VDC INCOMING CURRENT RANGE：28.0A Max @11.4VDC INPUT SURGING CURRENT：12.0Amax@12VDC WORK EFFICIENCY：≥85% Environment description: Working temperature/humidity-5℃to 55℃/ 45%-75% Reposition temperature//humidity-40℃to +70℃/ 10%-90% Atmospheric pressure86Kpa—106Kpa Defencive function （for+3.3V，+12V,+5.00V&+5.00VSB power output） OCP： output shut down when output current reaches the peak point. Short-circuit protection：output shut down when short-circuit.
