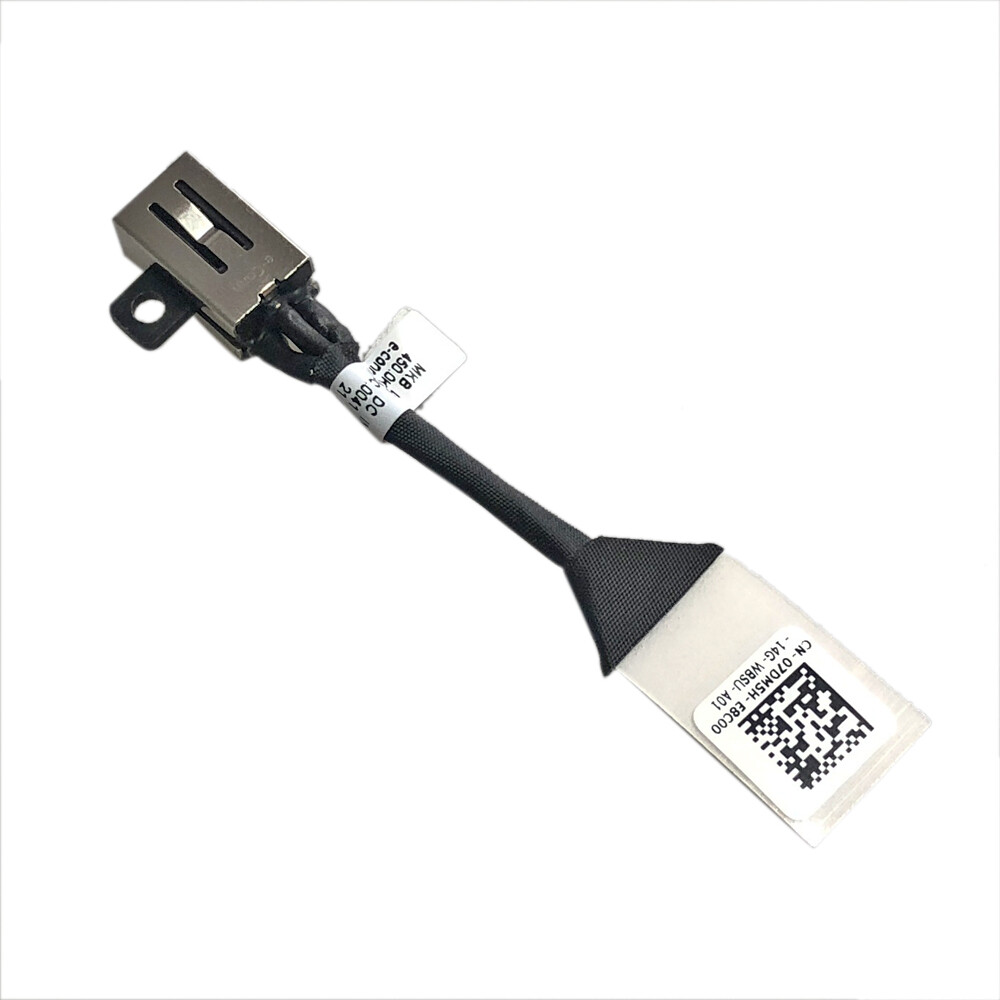

Specs:100% Brand new and high quality.Name: DC Power Jack Charging port CablePart Number: 07DM5H 450.0KD0C.0041 450.0KD0C.0002 450.0KD0C.0001 450.0KD0C.0011Compatible Model:For DELL Latitude 3510 P101F001 P101F (5.15cm)Package include: 1* DC Power Jack Charging port class='pacp'>
DC-in port power jack charging connector For DELL Latitude 3510 P101F001 P101F Specs:100% Brand new and high quality.Name: DC Power Jack Charging port CablePart Number: 07DM5H 450.0KD0C.0041 450.0KD0C.0002 450.0KD0C.0001 450.0KD0C.0011Compatible Model:For DELL Latitude 3510 P101F001 P101F (5.15cm)Package include:1* DC Power Jack Charging port the DC-in
Prerequisites
1.Follow the procedure in Before working inside your computer
2.Remove the SD card.
3.Remove the base cover.
4.Disconnect the battery cable
Steps 2：
1.Locate the DC-in port on your computer, remove the three (M2.5x5) screws from the hinge covering it.
2.Lift the hinge and fold it away from the chassis.
3.Disconnect the DC-in cable from the computer and remove the single (M2x3) screw.
4.Remove the DC-in port from the computer.
Installing the DC-in
Steps3：
1.Place the DC-in module into the provided slot.
2.Install the (M2x3) screw and connect the DC-in cable to the system board
3.Fold and align the hinge to the screw holders on the palmrest.
4.Install the three (M2.5x5)screws to secure the hinge.
Next steps：
1.Reconnect the battery cable.
2.Install the base cover.
3.Install the SD card.
4.Follow the procedure in After working inside your computer.
