DKB MultiStart IIDual Kickstart ROM Switcher for Commodore AmigaOpen Box • Appears Unused • Original Packaging and Manual

Offered here is an exceptionally completeDKB Software MultiStart IIKickstart ROM-switching kit for compatible Commodore Amiga computers.

The MultiStart II allows two standard Kickstart ROMs to be installed simultaneously and selected from the keyboard. This lets an Amiga owner use a newer operating-system ROM while retaining compatibility with older programs that require an earlier Kickstart version.

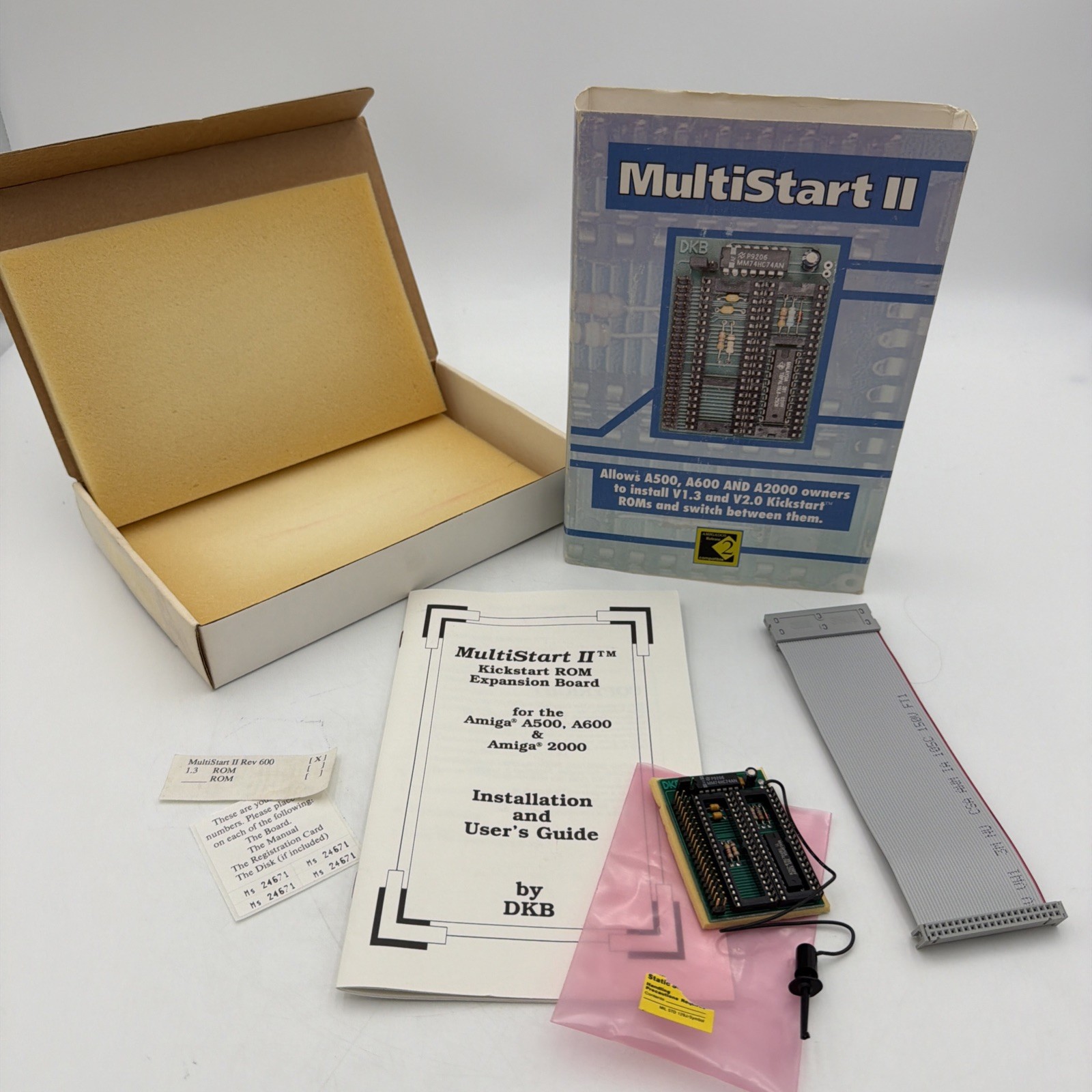

This example remains with its original box, foam packaging, printed manual, ribbon cable, control lead, antistatic bag, and configuration paperwork. The components appear unused or never installed.

Included

• DKB MultiStart II ROM-switching board
• Original ribbon cable
• Attached control lead and clip
• Original printed MultiStart II manual
• Original retail box
• Original fitted foam packaging
• Original antistatic bag
• Original configuration and installation paperwork
• ROM presently installed on the board, as shown
• Everything shown in the included configuration slip identifies this as:
  • MultiStart II Rev. 600
  • Kickstart 1.3 ROM selected
  • Second ROM position not selected

  The board is being sold in the exact configuration shown in the photographs. The listing does not include a second Kickstart ROM.

  Features

  The DKB MultiStart II provides:

  • Two sockets for standard Amiga Kickstart ROMs
  • Support for Kickstart ROM versions 1.2 through 3.1
  • Operation with either one or two ROMs installed
  • Keyboard-controlled ROM selection
  • Jumper selection of the default startup ROM
  • Ribbon-cable connection to the motherboard ROM socket
  • Control lead connection to the Gary chip

  The Amiga Hardware Database documents the MultiStart II as a two-ROM Kickstart switcher that can operate with one or two ROMs and permits keyboard switching between them.Amiga Resource

  Compatibility

  The original packaging lists compatibility with:

  • Commodore Amiga 500
  • Commodore Amiga 500 Plus
  • Commodore Amiga 600
  • Commodore Amiga 2000

  The packaging also mentions compatibility with certain internal accelerators, including the MicroBotics VXL030 and CSA MegaMidget Racer.

  Because motherboard revisions, accelerator cards, and internal clearances can vary, the buyer should confirm compatibility with their exact Amiga configuration before installation.

  Condition and Testing

  This is anopen-box vintage hardware set that appears unused.

  The following observations support that description:

  • Board appears exceptionally clean
  • Ribbon cable and control lead appear clean
  • Original antistatic bag is present
  • Original foam packaging is present
  • Original paperwork remains in the box
  • No obvious installation wear is visible in the supplied photographs

  The current owner hasnot installed or functionally testedthe board. Present electrical operation is therefore unverified.

  It is not being represented as factory-sealed or guaranteed new old stock.

  No Proprietary Installation Disk

  The MultiStart II is a hardware ROM-switching device and does not require a proprietary DKB driver or installation floppy.

  No reliable evidence was found that a special MultiStart II floppy disk was part of the standard package. Workbench disks appropriate to the installed Kickstart versions would have been separate Commodore operating-system media.

  Installation

  Installation requires opening the Amiga and connecting the MultiStart II to the motherboard Kickstart ROM socket using the included ribbon cable.

  The control lead must also be connected as directed by the original manual. Installation should be performed by someone familiar with Amiga hardware, correct ROM orientation, antistatic handling, and motherboard chip identification.

  Incorrect installation or reversed ROM orientation can damage vintage hardware.

  Cosmetic Condition

  The board and accessories appear exceptionally clean.

  The original box and manual show normal age-related storage wear, including:

  • Light edge and corner wear
  • Surface rubbing
  • Minor creasing
  • Aging of the internal foam
  • Ordinary handling marks

  Please examine every photograph carefully because the photographs show the exact item and form an important part of the description.

  Not Included
  • Second Kickstart ROM
  • Workbench or AmigaOS disks
  • Commodore Amiga computer
  • Installation tools
  • Additional jumpers, cables, or accessories not shown
  • Any item not pictured or specifically listed
  Item Specifics

  Brand:DKB Software
  Model:MultiStart II
  Type:Kickstart ROM switcher
  Revision:Rev. 600, according to included paperwork
  Compatible Brand:Commodore
  Compatible Models:Amiga 500, 500 Plus, 600 and 2000
  ROM Configuration:Kickstart 1.3 indicated by included paperwork
  Second ROM Included:No
  Number of ROM Sockets:2
  Keyboard ROM Switching:Yes
  Default-ROM Jumper:Yes
  Ribbon Cable Included:Yes
  Control Lead Included:Yes
  Manual Included:Yes
  Original Box Included:Yes
  Original Foam Included:Yes
  Antistatic Bag Included:Yes
  Installation Disk Required:No proprietary DKB disk required
  Condition:Open box; appears unused
  Functional Testing:Not performed by current owner
  Vintage:Yes
  Country/Region of Manufacture:United States
