DONGKER PWM Driver Module,DC 12V 24V 48V 2 Channel 4-Wire PWM Speed Display Module for PC Fan/Alarm
Product Details

• Color: Green
• Brand: DONGKER
• Product Dimensions: 2.54"L x 2.54"W x 0.61"H
• Material: Copper
• Item Weight: 0.04 kg
• Brand Name: DONGKER
• UPC: 779207140511
• Unit Count: 1 Count
• Number of Packs: 1
• Manufacturer: DONGKER
• Number of Items: 1
• Model: AAP-ZP-GY17493
• Part Number: AAP-ZP-GY17493
• Display Type: LCD
• Operating Temperature: 85 °C
• Color: Green
• Material Type: Copper
• Item Dimensions L x W x H: 2.54"L x 2.54"W x 0.61"H
• Item Weight: 0.04 kg

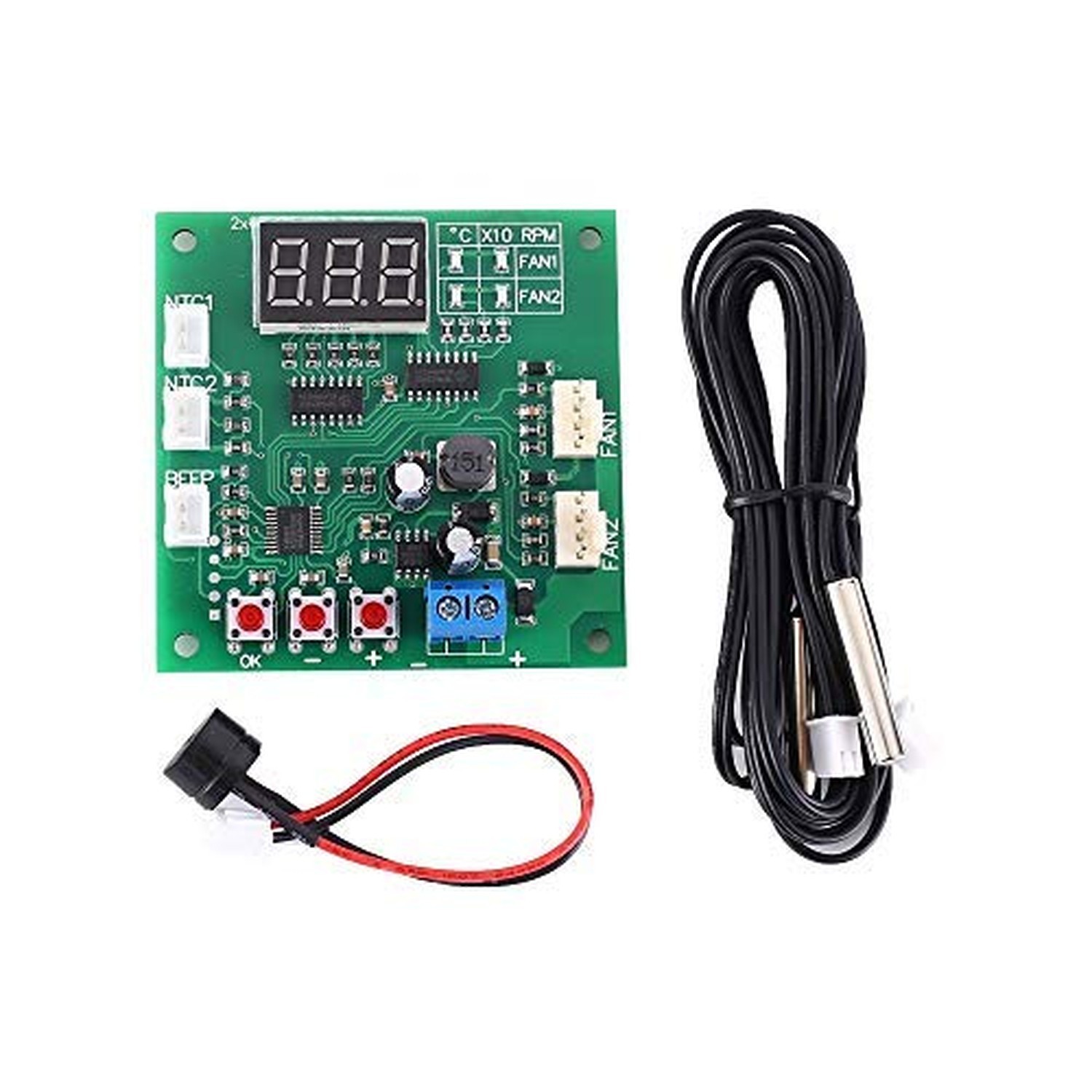

• This is a PWM 4-wire fan temperature controller with two-way heat dissipation, temperature and speed display and stall alarm, wide operating voltage, dual independent temperature control, and support for push-button settings.
• If you have any questions about Fan temperature controller, please download the User Manual (PDF) from the Product guides and documents section to get all the relevant information about Fan temperature controller, thank you!
• Note:The working voltage must be equal to the fan voltage.If you use a 12V fan but supply 24V,it will burn the fan.This product is not limited by the fan current,but the pin current of the fan interface on the board should not be greater than 3A.If you use a higher current fan,please connect the fan power cord directly to the main power.
• Setting Note:In the setting state of speed and temperature zone,if there is no operation after 15 seconds,it will exit automatically without saving data.When setting the temperature zone,the full-speed temperature of the same channel must be at least 5C higher than the acceleration temperature.
• When setting a temperature value that causes this condition to be unsatisfactory,the controller will automatically adjust another temperature value to ensure that the difference is not low.In the condition of 5C,this automatic adjustment is one-way,if need to call back,you need to manually adjust another temperature value.The shielding display setting of channel 2 only affects the data display of the working state.The control and parameter setting of channel 2 have no effect and work normally.
