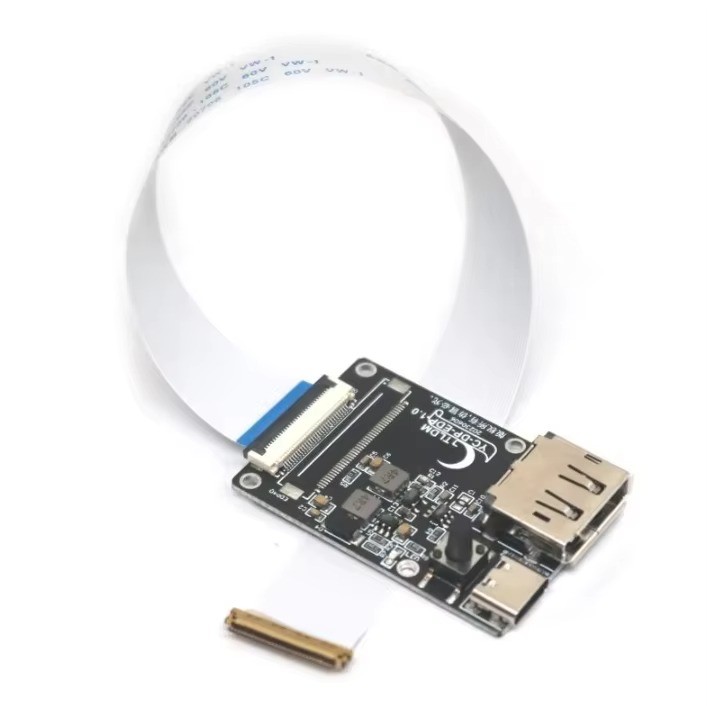

DP to EDP LCD Driver Board 4K 8K 120Hz for 30PIN 40PIN Screens

Price: CN $28.22

DP to EDP Driver Board 🖥️

4K/8K 120Hz Support for 30PIN & 40PIN LCD Panels

Important Compatibility Notice:
30PIN driver board only supports reverse cables. 40PIN driver board only supports coaxial cables. A 40PIN board with a 30PIN screen requires a 40pin-to-30pin cable (included in the matching variation). Samsung ATN series and OLED screens are not supported. This board supports EDP output signals only, not LVDS. Please verify your screen's exact parameters before purchasing.Key FeaturesUp to 8K Output

Supports resolutions up to 8K (dependent on graphics card and display support). Tested with a 4K screen at 5120x2880 resolution.

Flexible Input

Accepts Type-C and DP input signals from your source device.

One-Click Power & Touch Dimming

Simple one-click power on with touch-based infinite backlight dimming for easy adjustment.

Adjustable Backlight

Wide backlight voltage range of 5-28V to match a variety of panels.

Choosing Your Option

30PIN With Cable: Driver board plus reverse cable for 30PIN EDP screens.

40P: Driver board only for 40PIN EDP screens (coaxial cable required, sold separately if not already owned).

40PIN With 30P Cable: 40PIN driver board bundled with a 40-to-30pin adapter cable, for connecting to compatible 30PIN screens.

40PIN With Cable 0.4 / 0.5: 40PIN driver board with a coaxial cable in the specified length.

SpecificationsSignal TypeEDP only (LVDS not supported)InputType-C, DPOutputEDP-30 or EDP-40Max ResolutionUp to 8K (source/display dependent)Backlight Voltage5-28V adjustableRecommended CableThunderbolt 4 (8K) / Thunderbolt 3 (4K)UsePC / Notebook / Portable Monitor BuildsProduct ImagesFAQDoes this support LVDS screens?

No, this driver board only supports EDP output signals, not LVDS.

Will this work with my Samsung screen?

Samsung ATN series and OLED screens are not supported. Please check your exact screen parameters before ordering.

What cable do I need for 8K?

A Thunderbolt 4 DP cable is recommended for up to 8K image quality; Thunderbolt 3 supports up to 4K.

Can a 40PIN board work with a 30PIN screen?

Yes, using the 40PIN board with a 40-to-30pin adapter cable, available as a variation option.
