DSLRKIT 23W 9V 2.3A Gigabit Active PoE Splitter DC 5.5x2.1/2.5mm For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

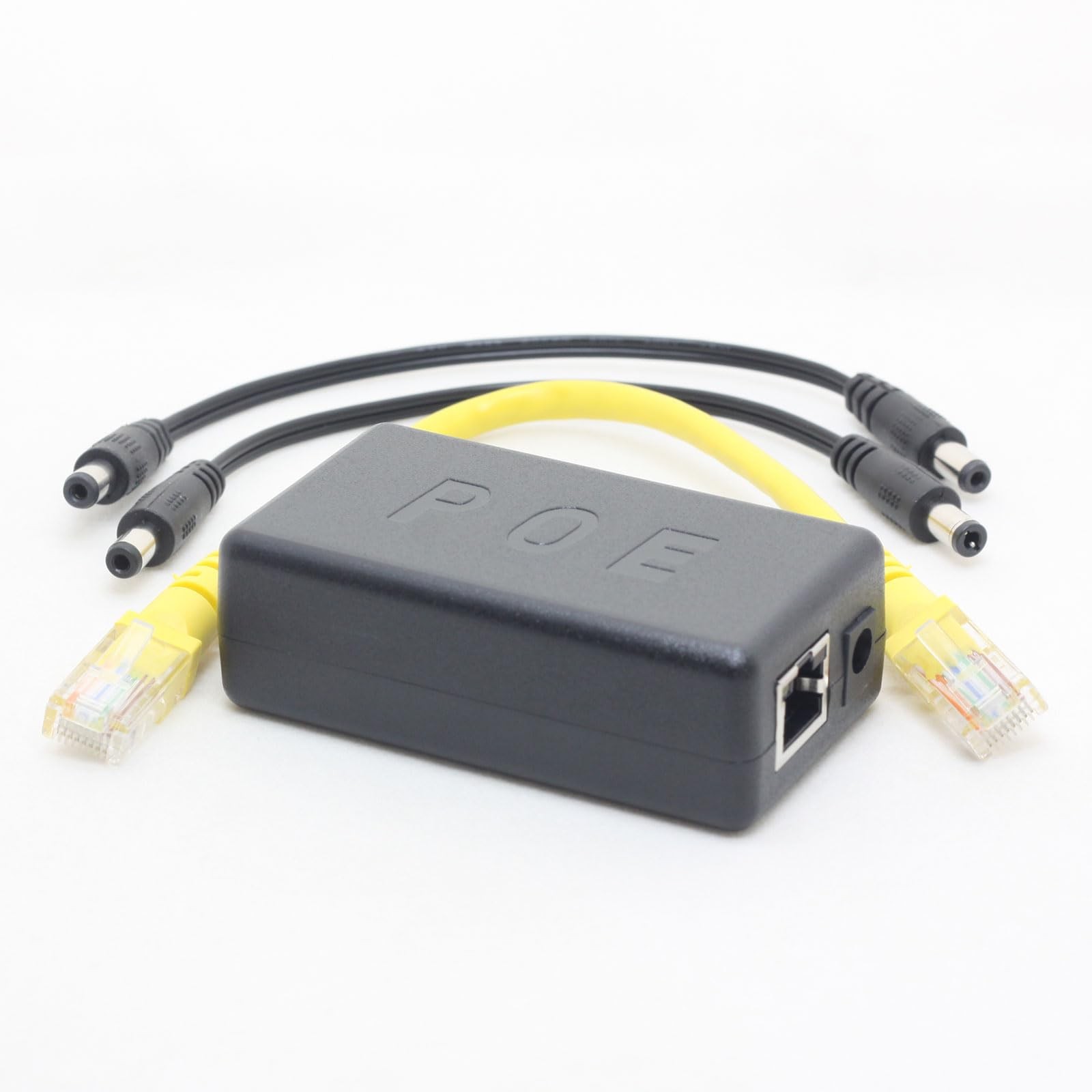

DSLRKIT 23W 9V 2.3A Gigabit Active PoE Splitter DC 5.5x2.1/2.5mm
Price: US $22.64
DSLRKIT 23W 9V 2.3A Gigabit Active PoE Splitter DC 5.5x2.1/2.5mm Product Details
Publisher: DSLRKIT
Publication date: 0
Item weight: 96 g
Dimensions: 8 x 4.5 x 2.5 cm
The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation
Output power Max.15Watt (DC9V1.6A) when used with the IEEE802.3af standard PoE switch(or 802.3af PoE injector)
Output power Max.23Watt (DC9V2.3A) when used with the IEEE802.3at standard PoE switch (or 802.3at PoE injector)
Output power Max.23Watt (DC9V2.3A) when used with the DSLRKIT Non-standard 48V~52V Passive PoE switches (or 48V~52V Passive PoE injector)
5.5x2.1/5.5x2.5mm DC OUTPUT 9V 2.3A/23Watt
Note:The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.Output power Max.15Watt (DC9V1.6A) when used with the IEEE802.3af standard PoE switch(or 802.3af PoE injector).Output power Max.23Watt (DC9V2.3A) when used with the IEEE802.3at standard PoE switch (or 802.3at PoE injector) .Output power Max.23Watt (DC9V2.3A) when used with the DSLRKIT Non-standard 48V~52V Passive PoE switches (or 48V~52V Passive PoE injector)RJ45 female POE INPUT Port:Support the IEEE 802.3af/at the Power over Ethernet PoE SwitchSupport 48V Unsolicited Power Over Ethernet PoE SwitchSupport 48V Unsolicited Power Over Ethernet PoE AdapterSpecification:Compliant with IEEE802.3af output 9V1.6A 15WattCompliant with IEEE802.3at output 9V2.3A 23WattIsolation: 2.5kVPower Input: DC44~57VPower Output: DC9V 2.3A(Peak current 2.5A)Data&Power POE Port: from RJ45 (Compliant with IEEE802.3af/at PoE)Data Port: RJ45Power Output Port: 5.5x2.1/5.5x2.5mm DC plugData Transfer Rate: 10/100/1000 MbpsData Pin: RJ45 pin 12345678Devices will be detected before poe inputPower Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)Body size: 80 x 45x 26 mmDC cable length：85mmRJ45 Modular Plug cable length：155mmWeight : 96gOperation Temperatue:-20℃ ~ 45℃Storage Temperature:-30℃ ~ 70℃Item Included:Gigabit 9V2.3A Active PoE Splitter x1RJ45 Modular Plug cable x15.5*2.1mm DC cable x15.5*2.5mm DC cable x1
