Description:

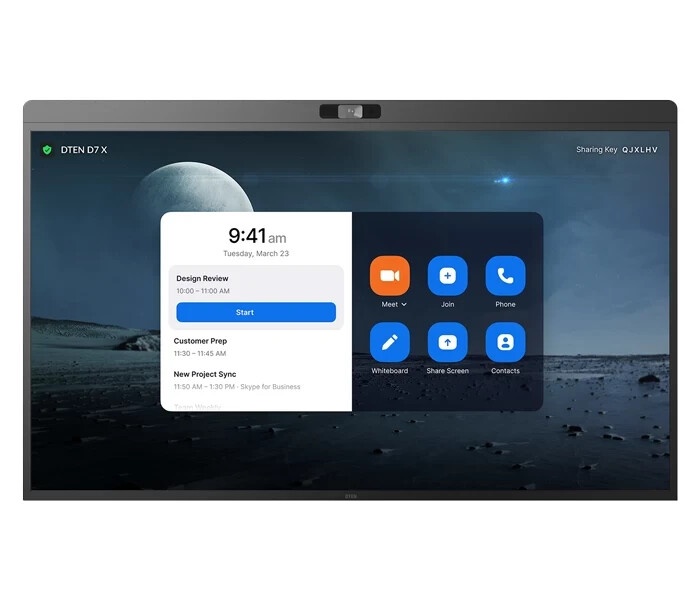

'DTEN D7X 75 Inch Windows Edition All-In-One Interactive Whiteboard Display

200-053124-308

Skip to the beginning of the images gallery

The DTEN D7X is designed to deliver the ultimate video collaboration experience for Zoom meeting platforms.

-Life-like 4K video and crystal clear audio with DTEN audio AI technology

-Responsive whiteboarding and real time annotation on 4K touch display

-Best in class 4K smart camera and 16 microphone array

-Cross-platform BYOD flexibility with DTEN Smart Connect

-Available with either Windows or Android operating system

-Plug and play for easy set up

DTEND7XSoftware

• Windows IoT
• Android OS

All-in-One

• Multi-Touch Display
• 4K Camera
• 15-Microphone Array
• Integrated Speakers

Display

• Ultra HD 4K LED 75″ 16:9
• Capacitive Touch Screen Display
• 20 Touchpoints /Low latency- 50 ms response time
• 180 touch-point reporting rate
• AI based to improve the touch accuracy
• Supports dual screens
• Extended screen supported

Camera System

• 4K / Fixed Lens, Infinite Focus
• D7X 75″: Field of View (FOV) 90° / Vertical FOV 88°
• PTZ and preset support
• Zoom Rooms Auto framing
• Zoom Rooms Smart Gallery
• DTEN Smart Framing

ALL-IN-ONE DESIGN

• Multi-Touch 75″ Display
• Native Zoom Rooms Meeting Software
• 4K Camera
• 15-Microphone Array
• Integrated Speaker System
• Wall Mount Included

BRING YOUR OWN DEVICE (BYOD)

• Smart Connect via single charging USB-C Cable (included) or HDMI In + USB
• Extension of display via DP (computer must support USB-C Alt-mode DisplayPort)
• Touchback feature for Windows and Mac OS
• Use D7X Camera, Microphone, Touch and Speakers with any Software Client
• HDMI Ingest for monitor and content sharing modes
• Laptop charging (up to 65W)

SHARING

• Zoom Rooms:
• Wireless in meeting sharing
• Wireless Apple screen mirroring (Airplay)
• Wireless proximity sharing
• Wired USB-C content sharing with touch back capabilities (Windows and MacOS)
• Wired HDMI capture card

MULTI-TOUCH DISPLAY

• LED 75″
• Ultra HD 4K / 16:9
• 20 touch-points
• Low latency- 50 ms response time
• 180 touch-point reporting rate
• AI based to improve the touch accuracy
• Supports dual screens with extended screen support available

4K CAMERA SYSTEM

• D7X 75″: Field of View (FoV) 90°
• Vertical FOV 88°
• PTZ and preset
• Zoom Rooms Auto framing
• Zoom Rooms Smart Gallery
• DTEN Smart Framing

AUDIO SYSTEM

• 15-Microphone Array
• Integrated Stereo Speakers
• Acoustic Echo Cancellation
• Automatic Gain Control (AGC)
• Automatic Noise Reduction

INPUTS & OUTPUTS

• D7X Windows Edition:
• PC Module
• HDMI out x 1 (CEC, HDCP2.2)
• USB 3.1 x 4
• 3.5-mm Jack x 1 (Mic + Headphone)
• Ethernet 1 GigE (RJ45) x 1
• On D7X Module:
• HDMI In x 1 (CEC, HDCP1.4, Dolby AC3)
• USB-C: USB3.1 Data + DP1.4 + 65W charging

NETWORK

• Ethernet (RJ-45) 1 GigE
• Wi-Fi 802.11a/b/g/n/ax (Support WiFi i6)
• IPv4 Dynamic Host Configuration Protocol (DHCP)/ Static
• HTTP/HTTPS Proxy Support
• Bluetooth 5.2

VESA

• D7X 75″ VESA Pattern:
• 800 x 400 mm

POWER

• 100 to 240 V AC, 50 to 60 Hz

PRODUCT DIMENSIONS

• DTEN D7X 75″:
• 66.1 x 39.5 x 2.18 in (1679 x 1004 x 55.4 mm)

PRODUCT WEIGHT

• DTEN D7X 75″:
• 79.6 lbs (36.1 kg)

OPERATING TEMPERATURE AND HUMIDITY

• Operating Temperature 0°C to 40°C
• Storage Temperature -10°C to 60°C
• Operating Humidity 20% to 80% RH
• Storage Humidity 10% to 60% RH

Condition:

' Brand New
