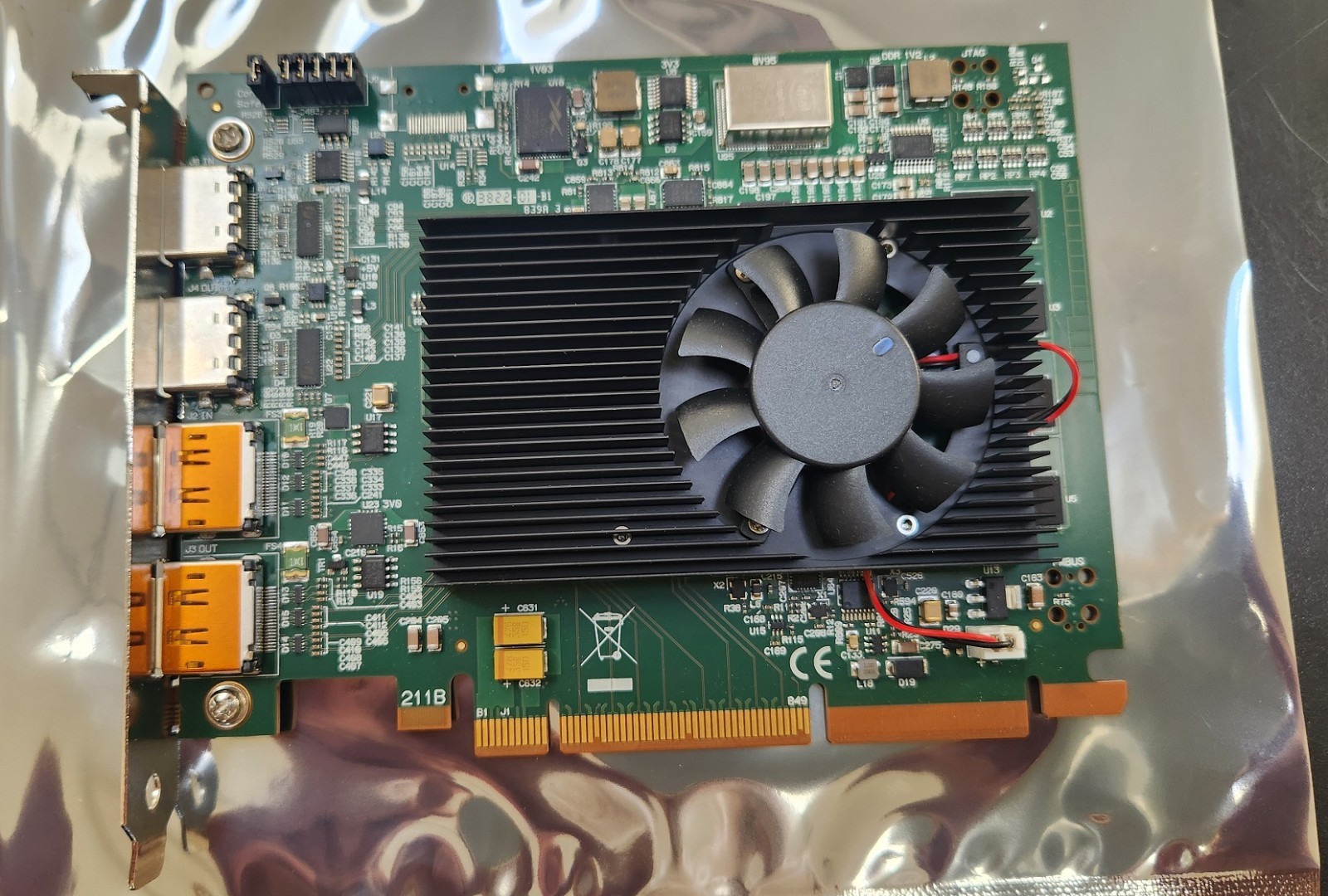

1x HDMI and 1x Displayport input, 4K, & 1x HDMI and Displayport output,. ultra low latency.NIB, 3 year warranty, we are a DP distributor.
MISSION CRITICAL 24/7OPERATIONThe VisionIO-XD2 provides a fail-safemechanism for the loop through ports,requiring only power for video pass throughto be operational. Additionally, the overlayhardware contains a timeout mechanism toprevent applications from corrupting the mainvideo feed in the event of a software crash orother system failure
SPECIFICATIONBOARD FORMATPCIe Gen 3 x8 plug-in cardDIMENSIONS144mm x 110mm (incl heat sink)CONNECTORS1 x Locking DisplayPort 1.2 and 1 x HDMI TypeA for input1 x Locking DisplayPort 1.2 and 1 x HDMI TypeA for outputMAX CAPTURE RESOLUTION616MPixel/second capture bandwidth perchannelCaptures up to 4096 x 2160p at 60HzFRAME BUFFER MEMORY2 GB (Capture frame buffer)1 GB (Overlay buffer)INPUT MODE DETECTION (DISPLAYPORT)Main Stream Attribute (MSA) decodeINPUT MODE DETECTION (HDMI)Datapath Signal Measurement and AVIInfoframePIXEL CAPTURE FORMATRGB: 18, 24, 30 bits per pixel YUV (4:2:2):8bit (16 bits/pixel), 10bit (20 bits/pixel),12bit (24 bits/pixel)PIXEL TRANSFER FORMATSRGB: 5-5-5, 5-6-5 (16 bit), 8-8-8 (24 bit),8-8-8-alpha (32bit), 10-10-10 (30 bit RGB10) orYUV: 4:4:4; 4:2:2; 4:2:0COLOUR SPACE CONVERSIONRGB32, YUY2, NV12, YV12, BT.709, BT.2020UPDATE RATEUser defined. Captured frame rate will matchthe source providing max data rate is notexceeded. Multi-buffered to eliminate tearingartefactsVIDEO MODESAny custom resolution within a 4K canvas and616MP/s bandwidth limitPOWER12V at 1.7A 3.3V at 0.16A Total power 21W ≈approximatelyOPERATING TEMP0 °C to 35 °C / 32 °F to 96 °FSTORAGE TEMP-20 °C to 70 °C / -4 °F to 158 °FRELATIVE HUMIDITY5% to 90% non-condensingWARRA
