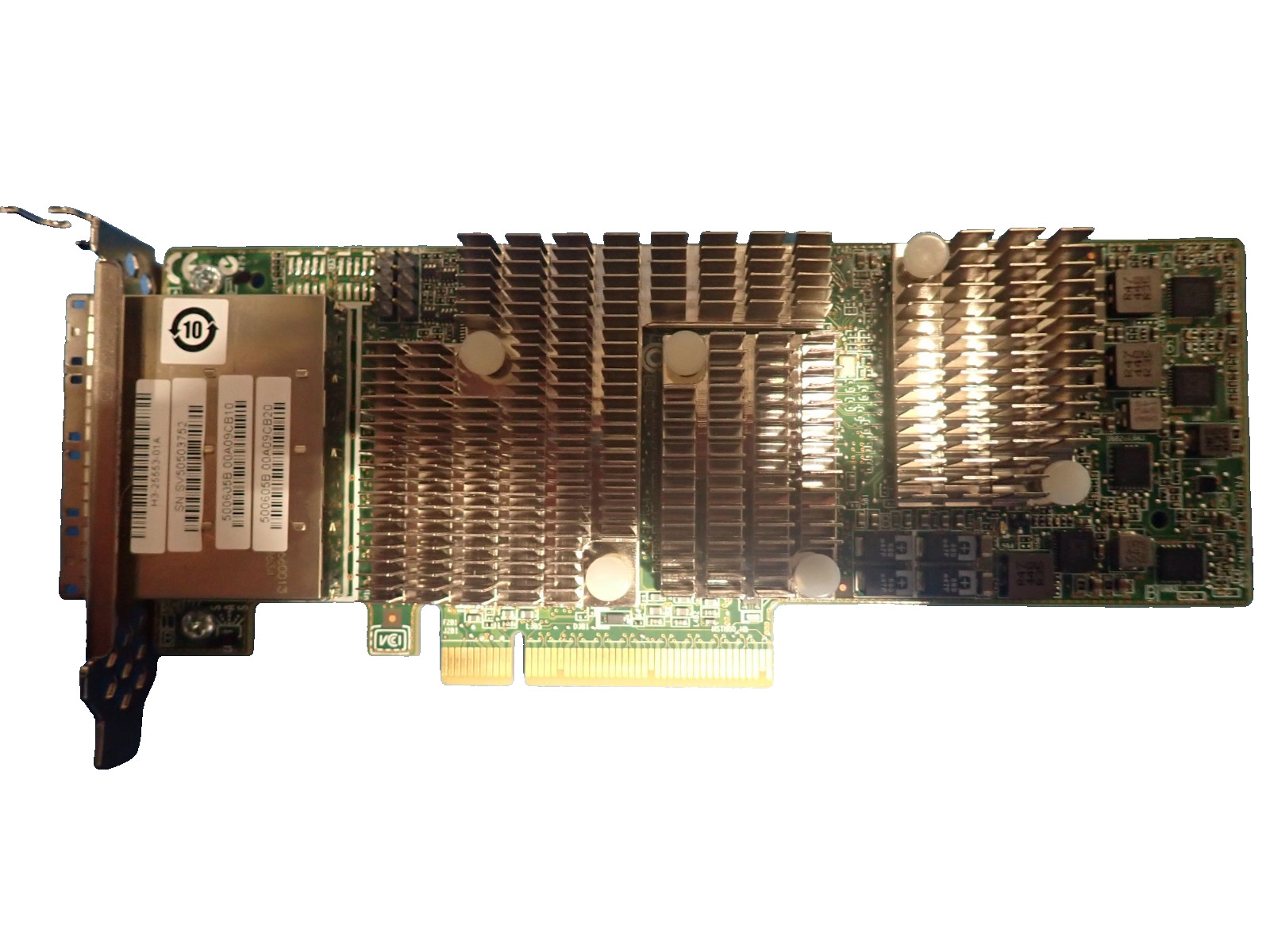

The Dell 0TFJRW LSI 9206-16e 6Gbps 4-Port SAS PCIe HBA is a high-performance host bus adapter designed to expand external storage connectivity for enterprise servers and storage systems.

Equipped with four external Mini-SAS HD ports, this adapter supports connection to multiple SAS or SATA drives, making it ideal for large-scale storage expansion, JBOD enclosures, and data center environments. It uses a PCIe x8 interface to deliver fast, stable data transfer for demanding workloads.

Specifications:

• Brand: Dell
• Model: 0TFJRW (LSI 9206-16e)
• Type: SAS Host Bus Adapter (HBA)
• Interface: PCI Express x8
• Ports: 4 x External Mini-SAS HD (SFF-8644)
• Data Rate: Up to 6Gbps per port
• Controller: LSI SAS controller
• Drive Support: Up to 16 external SAS/SATA drives
• Form Factor: Low-profile PCIe card
• Compatibility: Enterprise servers, JBOD storage enclosures

Features:

• Provides 4 external SAS ports for high-capacity storage expansion
• Supports both SAS and SATA drives for flexible configurations
• Delivers fast 6Gbps data transfer speeds
• PCIe x8 interface ensures reliable high-bandwidth performance
• Ideal for data centers, backups, and virtualization environments
• Low-profile design fits a wide range of server systems
• Enterprise-grade reliability for continuous 24/7 operation
