Dell/Brocade 6510 PV5N5 48-Ports High-Performance Gen 5 Fibre Channel Switch 1U

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.

EXCLUDING NETWORK CABLES

Price is for 1 item

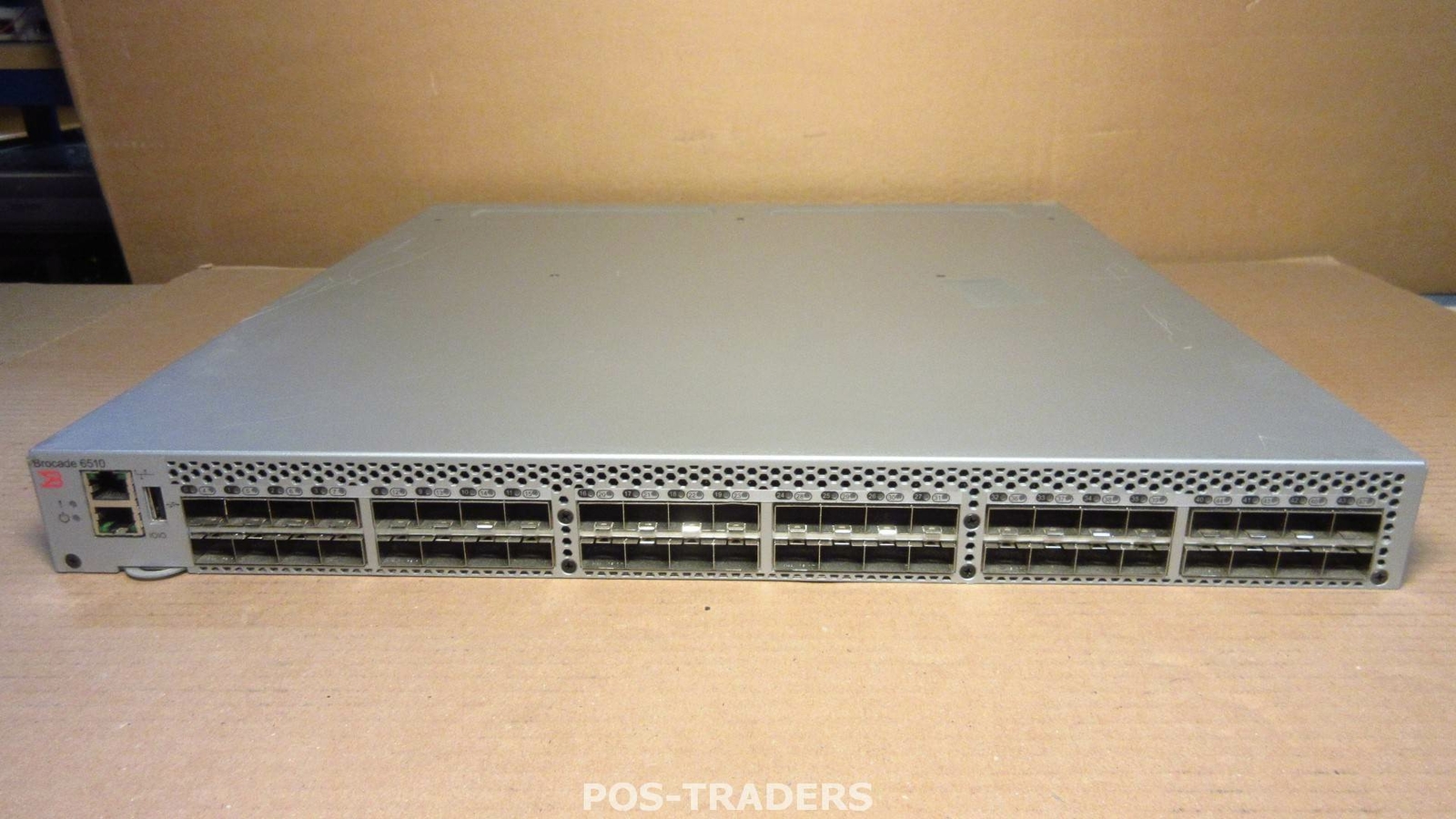

See photos for actual item

BROCADE 6510 SPECIFICATIONS

• Fibre Channel ports: Switch mode (default): 24-, 36-, and 48- port configurations (12-port increments through Ports on Demand [PoD] licenses); E, F, M, D, EX ports Brocade Access Gateway default port mapping: 40 F_Ports, 8 N_Ports
• Media types: 16 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 16 Gbps SWL, LWL, ELWL 10 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 10 Gbps SWL, LWL 8 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 8 Gbps SWL, LWL, ELWL, Fibre Channel distance subject to fiberoptic cable and port speed
• Scalability: Full fabric architecture with a maximum of 239 switches
• Performance: Fibre Channel: 2.125 Gbps line speed,full duplex;4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; 10.53 Gbps line speed, full duplex; 14.025 Gbps line speed, full duplex; auto-sensing of 2, 4, 8, and 16 Gbps port speeds; 10 Gbps optionally programmable to fixed port speed
• ISL trunking: Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS
• Aggregate bandwidth: 768 Gbps end-to-end full duplex
• Maximum fabric latency: Latency for locally switched ports is 700 ns; encryption/compression is 5.5 µsec per node; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default)
• Maximum frame size: 2,112-byte payload
• Frame buffers: 8,192 dynamically allocated
• Management access: 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port
• Power supply: Dual, hot-swappable redundant power supplies with integrated system cooling fans

Comes as shown on picture, if something is noton the picture it's not included unless stated otherwise.
