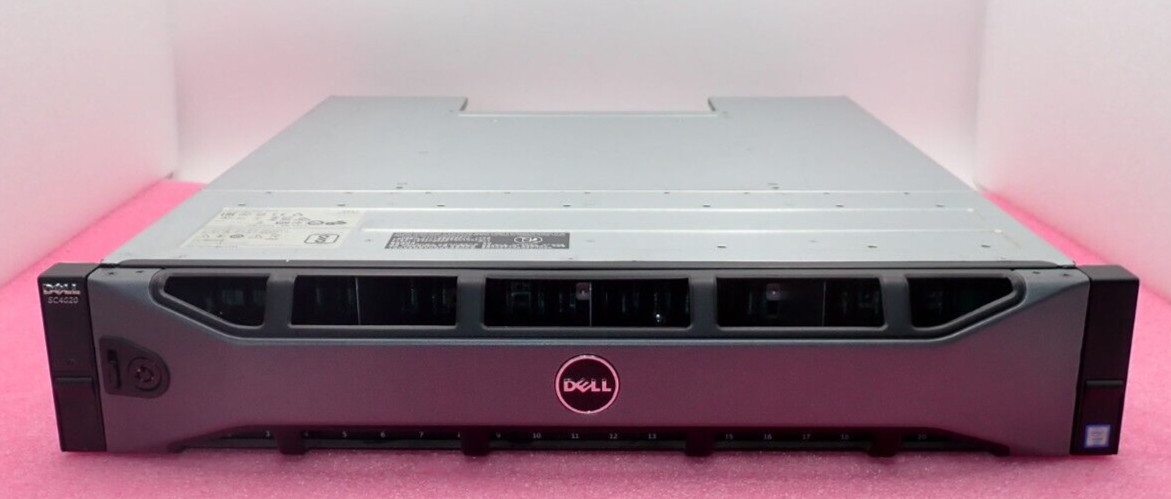

Dell Compellent SC4020F 2U Storage Array

In Good Condition, Full Working Order
Tested
Bezel Included
1 Year Warranty
Running Firmware 07.01.12.002

Please note no licensing is included and is required in order to deploy

Included

• Dell Compellent SC4020F 24x 2.5" SAS Bay 2U Storage Array With:
• 2 x Dell Compellent 8G-FC-4 Type A 8Gb FC Controller Module - H7T18- Reset to factory default
• Dual Redundant PSU
• 1 x Bezel

Description:High Performance that fits your budget, including all-flashTo compete with big business, you need efficient, real-time data access to quickly turn customer interactions into transactions and information into insights. The Dell Storage SC4020 puts the high IOPs and low latency your applications demand within reach.
The SC4020 hardware design supports 24 hot-plug, 2.5-inch drives and dual controllers providing automatic failover, combined in a single chassis. This consolidated platform can seamlessly connect to any open-systems server through Fibre Channel or iSCSI connections without the need for server side agents.
The SC4020 also includes support for multiple NAS options including local user shares or other file workloads. On the back-end, the SC4020 can be expanded using existing SC200 and SC220 disk enclosures with a full range of drive configurations, including tiered and all-flash options for ultimate workload flexibility, and the ability to customize drive mix and expand the drive footprint over time. For example, a site could start with value 7K drives and later add both capacity and performance to meet the changing application needs, including adding SSD flash tiers and file options.
Top Features

• Auto-tuned for maximum performance and cost-savings based on real time information
• FLASH-optimised for affordable all-flash or hybrid SSD/HDD deployments
• Fibre Channel or ISCSI SAN support included, with high-performance scale-out NAS option
• Perpetual software licensing for low lifecycle 2 controllers per SC4020 array
• Processor: Intel Xeon Processor E3-1265L v2, 2.50GHz, 4 cores, 8MB cache
• Memory: 32GB per SC4020 array (16GB per storage: 24 x 2.5” drive bays
• Supported expansion enclosures:
• Dell Storage SC200: 12 x 3.5” drive bays
• Dell Storage SC220: 24 x 2.5” drive bays
• Maximum drive count: 120 (24 internal, plus 96 external)
• Total storage capacity: 400TB+ based on maximum number of drives (120) and current largest capacity supported drives
• Supported drive types HDD: 15K, 10K, 7.2K RPM; SSD: write-intensive SLC, read-intensive MLC (different drive types, transfer rates and rotational speeds can be mixed in the same (front-end): 8 x 8Gb Fibre Channel ports per SC4020 array (4 per controller) or 4 x 10Gb iSCSI ports per SC4020 array (2 per controller)1
• Internal drive (back-end): 4 x 6Gb SAS ports per SC4020 array (2 per controller)
• NAS deployment (optional): Supports file-based storage via FS8600 NAS appliance
• Data Replication: Multiprotocol replication support; supports Fibre Channel and iSCSI OS: Storage Center 6.5 or higher
• Server OS support: Microsoft Windows Server, Oracle Solaris, HP-UX, Oracle Linux, IBM AIX, Novell NetWare, SLES, Apple, HPTru64, VMware, Citrix XenServer, RedHat
• RAID: Supports: RAID 0, 5, 6, RAID 10 and RAID 10 DM (dual mirror). Any combination of RAID levels can exist on a single Storage Center. Multiple RAID levels can exist on the same storage tier within an array.
• Management options: Enterprise Manager (included, server-installable), Storage Center Manager (included, onboard browser-based), Enterprise Manager Chargeback, Replay Manager, vCenter Operations Manager plug-in, command-line interface

Chassis

• Rack size: 2U
• Height: 8.79 cm (3.46 inches)
• Width: 48.2 cm (18.98 inches)
• Depth: 54.68 cm (21.53 inches)
• Weight at maximum configuration: 24 kg (53 lb)
• Weight empty: 7 kg (15.4 lb)

Environmental operating conditions

• Power/wattage: 2 hot-swappable 580W power supplies; 580W maximum power
• Heat dissipation: 1,978 BTU/hr maximum
• Voltage: 100-240 VAC
• Frequency: 50/60 Hz
• Amperage: 7.6-3.0 A
• Operating temperature: 50 - 95°F (10 - 35°C)
• Non-operating temperature: -40 - 149°F (-40 - 65°C)
• Operating humidity ranges (non-condensing): 10% to 80% with 29°C (84.2°F) maximum dew point
• Non-operating humidity (non-condensing): 5% to 95% with 33°C (91°F) maximum dew point
• Inlet type: NEMA 5-15/CS22.2, n°42

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£2000 excluding VAT
VATIS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
