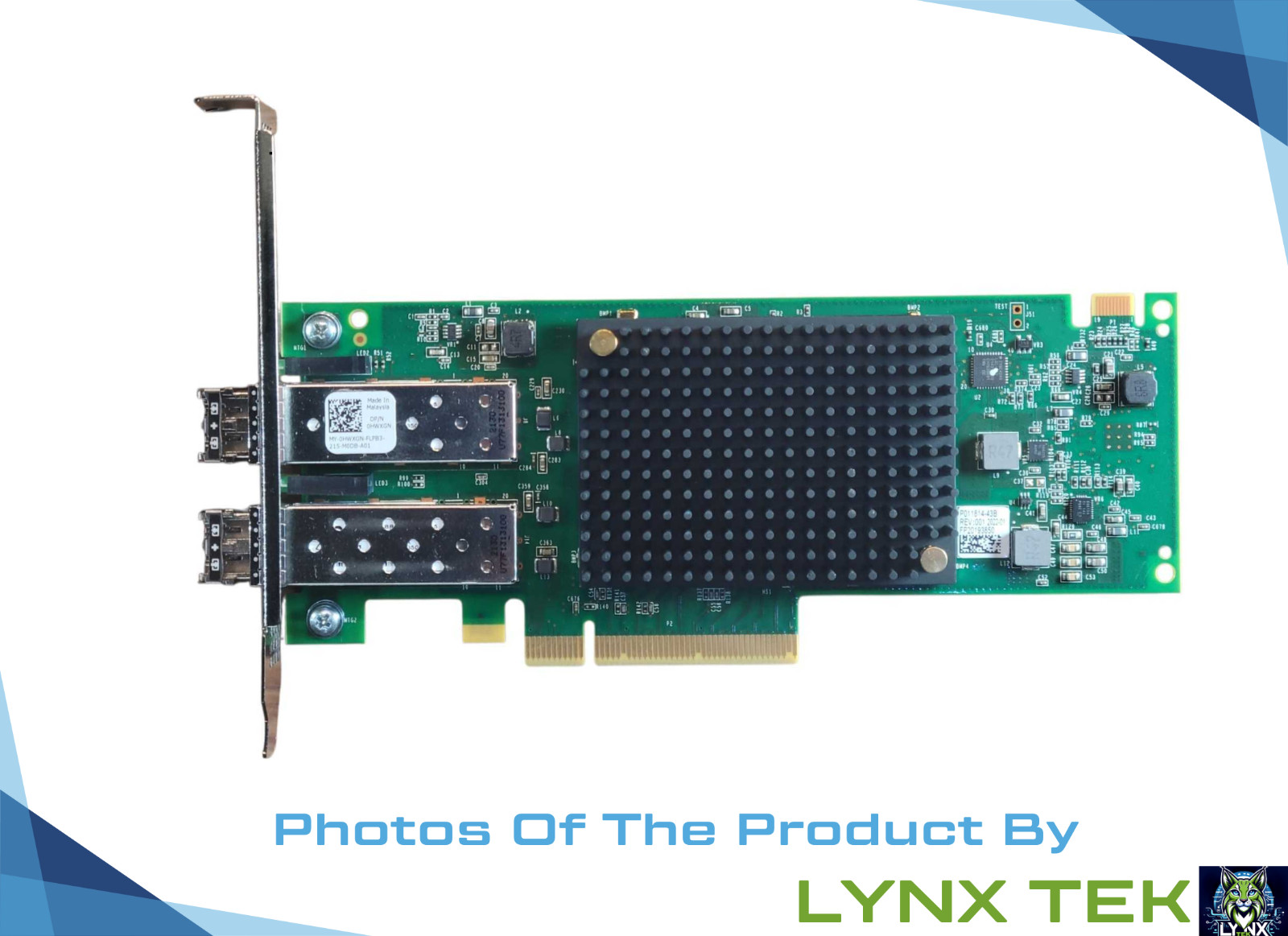

Item Specifics Dell Emulex LPe35002-M2 Dual-Port 32Gb Fibre Channel PCIe Gen4 x8 HBA — 0PD89Y / 0HWXGN — With 2× AFBR-57G5MZ-EL5 32G SFP+ Transceivers
The Dell Emulex LPe35002-M2 is a Gen 7 dual-port 32Gb Fibre Channel Host Bus Adapter built on Broadcom's XE601 controller, designed for demanding enterprise SAN environments. Using a PCIe Gen4 x8 host interface, it delivers up to 32 Gb/s line-rate throughput per port with full support for NVMe over Fabrics (FC-NVMe), making it ideal for all-flash array connectivity and latency-sensitive virtualisation workloads. This listing includes the card with its full-height bracket installed plus two genuine Avago/Broadcom AFBR-57G5MZ-EL5 32G short-wave SFP+ transceivers fitted and ready to go. The card is backward compatible with 16GFC and 8GFC fabrics and has been tested and validated for use in Dell PowerEdge servers.
Key Specifications
ModelEmulex LPe35002-M2Dell Part NumbersPD89Y / 0PD89Y · HWXGN / 0HWXGNGenerationGen 7 (64/32GFC)I/O ControllerBroadcom XE601Port Count2 × SFP+ (LC Duplex)Line Rate Per Port32 Gb/s (28.05 Gb/s signalling)Supported FC Speeds32GFC / 16GFC / 8GFC (auto-detected)Host InterfacePCIe Gen4 x8Form FactorFull Height (standard bracket installed)Card Dimensions167.64 mm × 68.91 mm (6.60″ × 2.71″)Transceivers Included2× Avago AFBR-57G5MZ-EL5 (32G, 850 nm, MMF, LC, SFP+)Transceiver ReachUp to 100 m on OM4/OM5 MMF · Up to 70 m on OM3 MMFCable SupportOM3 (70 m) · OM4/OM5 (100 m) · Single-mode (10 km with approved LW optics)Operating Temperature0 °C to 55 °CStorage Temperature−20 °C to 85 °COperating Humidity5% to 95% non-condensingOS SupportWindows Server · VMware ESXi · Red Hat / Oracle / SUSE Linux · SolarisCompatible ServersDell PowerEdge R640, R740, R740xd, R740xd2, R7415, R7425, R840, R940, R940XA, T640BrandDell / Broadcom (Emulex)Features & Protocols
- ✓ Gen 7 32GFC — up to 2× higher bandwidth vs previous generation
- ✓ NVMe over Fabrics (FC-NVMe) — ultra-low latency access to NVMe storage arrays
- ✓ Backward compatible with 16GFC and 8GFC fabrics (auto-negotiation)
- ✓ PCIe Gen4 x8 — double the host bandwidth vs PCIe Gen3
- ✓ N_Port ID Virtualisation (NPIV) support
- ✓ Enhanced SAN congestion management and monitoring
- ✓ Digital Diagnostic Monitoring (DDM/DOM) on both transceivers
- ✓ Hot-swappable SFP+ transceivers
- ✓ Tested and validated on Dell PowerEdge platforms
- ✓ Supported by Dell Technical Support when used with a Dell system
What's Included
- ✓ 1× Dell Emulex LPe35002-M2 32Gb Dual-Port FC HBA (full-height bracket installed) in an antistatic clamshell
- ✓ 2× Avago AFBR-57G5MZ-EL5 32G SFP+ Transceivers (installed)
Transceiver & Cabling Note: This HBA uses SFP+ optical ports — standard copper patch cables will not work. You will need LC Duplex multimode fibre patch cables (OM3, OM4, or OM5) to connect to your Fibre Channel switch. Two AFBR-57G5MZ-EL5 32G SFP+ transceivers are included and already fitted. For longer distances (up to 10 km), Emulex-approved long-wave single-mode transceivers can be substituted.
Accessories Included
None
