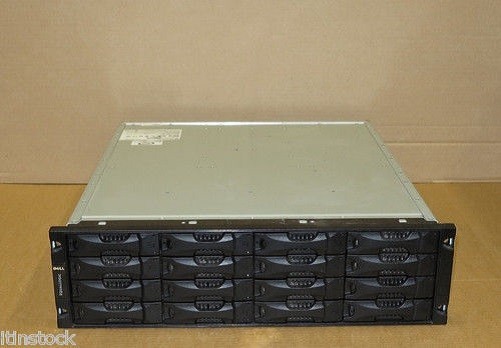

Dell EqualLogic PS5000XV Virtualized iSCSI SAN Storage array
In good condition and in full working order - reset back to factory default and ready to ship
FREE FAST WORLDWIDE UPS DELIVERY
Included
- 1 x Dell Equallogic PS5000XV Storage Array94420-01
- 16x 450Gb 15K Hot Plug SAS Drives In Caddies -RS450G15-SAS-X15-5
- 2 xPower Supplies
- 2 x Redundant Control Module 4 -Automatic RAID 5, 10 And 50,3 x Copper GbE Network Interfaces Per Controller
Dell EqualLogic PS5000XV
Dell EqualLogic PS5000XV is a virtualized iSCSI SAN that combines intelligence and automation with fault tolerance to provide simplified administration, rapid deployment, enterprise performance and reliability, and seamless scalability. With 15,000 RPM SAS disk drives the PS5000XV array provides high transactional performance with up to 7.2TB of storage capacity.
EXCEPTIONAL EASE OF USE
The PS5000XV is an intelligent storage array that provides rapidinstallation, simple management, and seamless expansion. All PS Series storage arrays include SAN configuration features and capabilities that senses network topology, automatically builds RAID sets, and conducts system health checks to ensure that all components are fully functional. A PS5000XV can often be installed, configured and serving storage in less than 1 hour.
MODULAR DESIGN WITH ENTERPRISE RELIABILITY
EqualLogic PS Series arrays are based on a virtualized modular storage architecture that enables IT managers to purchase only the storage that is needed when it is needed – preventing both underutilisation and over-provisioning. Using patented data movement technology, all EqualLogic PS Series arrays in a SAN work together to automatically manage data, load balance across all resources and expand to meet growing storage needs.
The EqualLogic PS5000 Series is designed to meet and exceed the rugged requirements of the data center. The PS5000XV includes fault tolerance capabilities through fully redundant and hot swappable components – dual-controllers, standard dual fan trays, dual power supplies and disk drives with hot spares. Self tuning write-back caches are battery-backed and mirrored across controllers for ultimate protection without compromising performance.
ENTERPRISE DATA SERVICES WITHOUT ADDITIONAL COST
The PS5000XV has built-in storage features once relegated to top-tier data centers, enabling best practice storage for every size organization. EqualLogic PS Series arrays include the following enterprise data services and software features with no additional software licensing fees:
Management
- PS Group Manager
- Rapid Provisioning
- Remote Setup Wizard
- Roles-Based Administration
- Volume Management
Data Protection, Availability and Recovery
- Auto-Replication, Multi-Way
- Instant Volume Restore
- Multi-Path I/O1
- Multi-Volume, Writeable Snapshots
- Snapshot and Auto-Replication Scheduler
- Volume Cloning
- Volume Consistency Sets
Storage Virtualization
- Array Evacuation
- Automatic Load Balancing
- Automatic or Manual Storage Tiering
- Complete SAN Virtualization
- Online Data and Volume Movement
- RAID Load Balancing
- Storage Pools
- Thin Provisioning
Maintenance
- Auto-Stat Disk Monitoring System
- E-mail Home
- Enclosure Monitoring System
- Performance Monitoring
Server Management and Protection Integration
- Auto-Snapshot Manager/Microsoft Edition
- Auto-Snapshot Manager/VMware Edition
- Automatic MPIO Connection Management
- Microsoft VSS and VDS Providers
- Smart Copy for Microsoft® Exchange®, SQL Server® ,Windows® File Systems and VMware® VMFS
- VMware® Site Recovery Manager Adapter
FLEXIBILITY WITH LOW COST OF OWNERSHIP
EqualLogic PS5000 Series arrays represent a breakthrough in storage economics, from purchase and setup to operation and upgrades. Unlike traditional SANs, the PS Series comes complete with all available software and applications expected from an enterprise-level SAN. The PS5000 Series scales on-demand - and on-line - allowing storage growth without disrupting applications. As a result, EqualLogic PS5000 arrays provide exceptional flexibility at a low total cost of ownership.
Whether consolidating a direct-attached storage (DAS) infrastructure, migrating data from and existing SAN, streamlining data protection processes or simply adding storage capacity, the EqualLogic PS Series offers a family of proven, high-performance, self-managing storage arrays designed to meet the requirements of any SAN environment.
Dell EQUALLOGIC™ PS5000XV Specification
- Storage Controllers: Dual controllers with a total of 2 GB battery-backed memory providing up to 72 hours of data protection
- Hard Disk Drives: 16 300 Gb 15k SAS hot-pluggable hard disk drives
- System Capacities: 4.8 TB using sixteen (16) 300 GB SAS disk drives
- Volumes: Up to 1,024
- Snapshots: 512 per volume / up to 10,000 total
- Hosts Accessing/PS Series Group: Up to 512 per pool / 2,048 per group
- Host Protocol: Any standards-compliant iSCSI initiator
- Operating Systems Supported: Windows® 2000 Server, Windows Server® 2003, Windows Server® 2008, including Hyper-V™, Windows Vista®, Windows XP®, Red Hat® Enterprise Linux®, SUSE® Linux Enterprise, Linux, Sun™ Solaris, UNIX®, IBM® AIX®, HP-UX, Mac OS® X, VMware® ESX Server 3 / 3.5 / ESXi 3.5, Citrix XenServer, Virtual Iron®, Novell® Netware®
- RAID Support: Automatic RAID 5, RAID 10, and RAID 50
- GbE Network Interfaces: Three (3) copper per controller
- Expansion Option: Can be combined with other EqualLogic PS Series online
- TCP Network Support: IPv4, IPv6 core support including JITC
- Reliability: Redundant, hot-swappable controllers, power supplies, cooling fans, and disks. Individual disk drive slot power control
- Enclosure Monitoring System: Automatic spare configuration and utilization, SMART, Automatic bad block replacement, Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
- Management Interfaces: SNMP, telnet, SSH, , Web (SSL), host scripting, Serial console, Multi-administrator support, Ability to configure a separate management network
- Security: CHAP authentication, Access control for iSCSI, Access control for management interfaces including RADIUS support
- Notification Methods: SNMP traps, e-mail, syslog
- AC voltage: 100-240 VAC ±10% single phase
- Frequency: 47-63 Hz
- Power factor: 0.98 (minimum)
- Power consumption: 490 VA, 530 Peak VA (operating maximum)
- Heat dissipation: 1,700 BTU per hour (maximum)
- Power supplies: Dual 440W dc
- Temperature range: 5 to 35°C / 41 to 95°F
- Storage temperature: -20 to 60°C / -22 to 140°F
- Altitude: -70 to 3,048 m operational / -305 to 12,192 m non-operational
- Relative humidity: 20 to 80% non-condensing operational / 5 to 95% non-condensing non-operational
- Shock: 5 g 10 ms ½ sine operational / 30 g 10 ms ½ sine non-operational
- Vibration: Random .21 grms @ 5-500Hz operational / Random 1.04 grms 2-200Hz non-operational
- Acoustics: Sound Power Operating: <5.8 db LpA @ 20°C
- Air Quality: Airborne contaminant level of G2 or lower as defined by ISA-S71.04-1985
- Height: 13 cm / 5.12 in / 3 EIA units
- Width: 48.26 cm / 19.0 in / 1EC Rack Compliant
- Depth: 55.1 cm / 21.7 in
- Weight: 35 kg / 77.6 lb (maximum configuration)
Boot Logs
# #
# EqualLogic (R), Inc. storage array #
# Copyright 2001-2007 #
# 70-0111 Rev=R07 SN=RMS83308A035D57 ECO=C02 #
# #
-- Type Ctrl-p key to enter setup mode --
BOOTROM version 7.0.0
Build Date: Wed Dec 19 01:50:35 EST 2007
Total memory: 0x40000000 bytes (1024MB)
NP Loading ...Done
SP Loading ...MFS set up
Building databases...
Thu Oct 24 07:24:57 EDT 2013
ipctunnel: 127.0.0.1: Undefined error: 0
Oct 24 07:24:57 init: kernel security level changed from 0 to serial number: SHU951160004A78.
PS Series Storage Arrays
Unauthorized Access Prohibited
login: grpadmin
Password:
Welcome to Group Manager
Copyright 2001-2011 Dell, Login to account grpadmin succeeded.
CLI> show
_____________________________ Member Information ______________________________
Model: 70-0111 Serial-Number: SHU951160004A78
Disks: 16 Spares: 2
Controllers: 2 CacheMode: write-thru
Service Tag: Not Disks Model Size Status Errors
---- ------------------------- -------------- ------- -------
0 ST3450856SS 419.19GB online 0
1 ST3450856SS 419.19GB online 0
2 ST3450856SS 419.19GB online 0
3 ST3450856SS 419.19GB online 0
4 ST3450856SS 419.19GB online 0
5 ST3450856SS 419.19GB online 0
6 ST3450856SS 419.19GB online 0
7 ST3450856SS 419.19GB online 0
8 ST3450856SS 419.19GB online 0
9 ST3450856SS 419.19GB online 0
10 ST3450856SS 419.19GB online 0
11 ST3450856SS 419.19GB online 0
12 ST3450856SS 419.19GB online 0
13 ST3450856SS 419.19GB online 0
14 ST3450856SS 419.19GB spare 0
15 ST3450856SS 419.19GB spare 0
_________________________________ Controllers _________________________________
ID Model CM Rev. SW Rev. Status
-- ---------- ---------- -----
0 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery,is charging
1 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery,is Ethernet Ports ifType ifSpeed Mtu Ipaddress Status Errors
---------- --------------- ---------- ----- --------------- ------- -------
eth0 ethernet-csmacd 1000000000 Temperature Sensors Value Normal Range Status
----------------------------------- --------- --------------- ---------------
Control module 0 processor 44 10-90 normal
Control module 0 chipset 19 10-45 normal
Control module 1 processor 42 10-90 normal
Control module 1 chipset 18 10-45 normal
Control module 0 SAS Controller 46 10-110 normal
Control module 0 SAS Expander 54 10-110 normal
Control module 1 SAS Controller 45 10-110 normal
Control module 1 SAS Expander 51 10-110 normal
Control module 1 SES Enclosure 21 10-65 Fans Speed Normal Range Status
------------------------------ --------- --------------- ---------------
Power Cooling Module 0 Fan 0 3450 2100-5200 normal
Power Cooling Module 0 Fan 1 3420 2100-5200 normal
Power Cooling Module 1 Fan 0 3450 2100-5200 normal
Power Cooling Module 1 Fan 1 3390 2100-5200 normal
_______________________________ Power Supplies Status FanStatus
--------------- ---------------
Power Cooling Module 0 on not-applicable
Power Cooling Module 1 on not-applicable
CLI> shutdown
Do you really want to shutdown the system? (yes/no) [no]yes
Halt at Thu Oct 24 07:42:29 EDT 2013 -- please wait...
477:0:logevent:24-Oct-2013 has initiated a clean halt restart.
The array has been halted.
You can safely power off the array or type any key to restart the array.
# #
# EqualLogic (R), Inc. storage array #
# Copyright 2001-2007 #
# 70-0111 Rev=R07 SN=RMS83308A02B0B4 ECO=C02 #
# #
Type Ctrl-p key to enter setup mode --
BOOTROM version 7.0.0
Build Date: Thu Jan 24 08:07:38 EST 2008
Total memory: 0x40000000 bytes (1024MB)
NP Loading ...Done
SP Loading ...Done
Dell, Inc. Storage Array
Copyright 2001-2009 Dell, as active control module in slot 1.
MFS set up
Building databases...
/etc/rc.cemi: BPLine: primary
Thu Oct 24 08:30:15 EDT 2013
Oct 24 08:30:15 init: kernel security level changed from 0 to 1
serial number: SHU945520002585.
PS Series Storage Arrays
Unauthorized Access Prohibited
login: grpadmin
Password:
Welcome to Group Manager
Copyright 2001-2009 Dell, Inc.
CLI> show
_____________________________ Member Information ______________________________
Model: 70-0111 Serial-Number: SHU945520002585
Disks: 16 Spares: 2
Controllers: 2 CacheMode: write-thru
Service Tag: Not Set
Disks Model Size Status Errors
---- ------------------------- -------------- ------- -------
0 ST3450856SS 419.19GB online 0
1 ST3450856SS 419.19GB online 0
2 ST3450856SS 419.19GB online 0
3 ST3450856SS 419.19GB online 0
4 ST3450856SS 419.19GB online 0
5 ST3450856SS 419.19GB online 0
6 ST3450856SS 419.19GB online 0
7 ST3450856SS 419.19GB online 0
8 ST3450856SS 419.19GB online 0
9 ST3450856SS 419.19GB online 0
10 ST3450856SS 419.19GB online 0
11 ST3450856SS 419.19GB online 0
12 ST3450856SS 419.19GB online 0
13 ST3450856SS 419.19GB online 0
14 ST3450856SS 419.19GB spare 0
15 ST3450856SS 419.19GB spare Controllers Model CM Rev. SW Rev. Status
-- ---------- ---------- -----
0 70-0111 R07 Storage Array Firmware V4.1.4 (R91505) good battery, is charging
1 70-0111 R07 Storage Array Firmware V4.1.4 (R91505) good battery, is Ethernet Ports ifType ifSpeed Mtu Ipaddress Status Errors
---------- --------------- ---------- ----- --------------- ------- -------
eth0 ethernet-csmacd 1000000000 Temperature Sensors Value Normal Range Status
----------------------------------- --------- --------------- ---------------
Control module 0 processor 47 10-90 normal
Control module 0 chipset 18 10-45 normal
Control module 1 processor 45 10-90 normal
Control module 1 chipset 19 10-45 normal
Control module 0 SAS Controller 47 10-110 normal
Control module 0 SAS Expander 56 10-110 normal
Control module 1 SAS Controller 48 10-110 normal
Control module 1 SAS Expander 53 10-110 normal
Control module 1 SES Enclosure 22 10-60 Fans Speed Normal Range Status
------------------------------ --------- --------------- ---------------
Power Cooling Module 0 Fan 0 3420 2100-5200 normal
Power Cooling Module 0 Fan 1 3390 2100-5200 normal
Power Cooling Module 1 Fan 0 3390 2100-5200 normal
Power Cooling Module 1 Fan 1 3420 2100-5200 Power Supplies Status FanStatus
--------------- ---------------
Power Cooling Module 0 on not-applicable
Power Cooling Module 1 on not-applicable
CLI> shutdown
Do you really want to shutdown the system? (yes/no) [no]yes
Halt at Thu Oct 24 08:36:25 EDT 2013 -- please wait...
351:0:logevent:24-Oct-2013 has initiated a clean halt restart.
The array has been halted.
You can safely power off the array or type any key to restart the array.
# #
# EqualLogic (R), Inc. storage array #
# Copyright 2001-2007 #
# 70-0111 Rev=R07 SN=RMS83308A02AF0D ECO=C02 #
# #
-- Type Ctrl-p key to enter setup mode --
BOOTROM version 7.0.0
Build Date: Thu Jan 24 08:07:38 EST 2008
Total memory: 0x40000000 bytes (1024MB)
NP Loading ...Done
SP Loading ...Done
Dell, Inc. Storage Array
Copyright 2001-2009 Dell, as active control module in slot 0.
MFS set up
Building databases...
Thu Oct 24 09:16:45 EDT 2013
Oct 24 09:16:45 init: kernel security level changed from 0 to 1
PS Series Storage Arrays
Unauthorized Access Prohibited
login: grpadmin
password:
CLI> show
_____________________________ Member Information ______________________________
Model: 70-0111 Serial-Number: SHU945520002560
Disks: 16 Spares: 2
Controllers: 2 CacheMode: write-thru
Service Tag: Not Set
Disks Model Size Status Errors
---- ------------------------- -------------- ------- -------
0 ST3450856SS 419.19GB online 0
1 ST3450856SS 419.19GB online 0
2 ST3450856SS 419.19GB online 0
3 ST3450856SS 419.19GB online 0
4 ST3450856SS 419.19GB online 0
5 ST3450856SS 419.19GB online 0
6 ST3450856SS 419.19GB online 0
7 ST3450856SS 419.19GB online 0
8 ST3450856SS 419.19GB online 0
9 ST3450856SS 419.19GB online 0
10 ST3450856SS 419.19GB online 0
11 ST3450856SS 419.19GB online 0
12 ST3450856SS 419.19GB online 0
13 ST3450856SS 419.19GB online 0
14 ST3450856SS 419.19GB spare 0
15 ST3450856SS 419.19GB spare Controllers Model CM Rev. SW Rev. Status
-- ---------- ---------- -----
0 70-0111 R07 Storage Array Firmware V4.1.4 (R91505) good battery, is charging
1 70-0111 R07 Storage Array Firmware V4.1.4 (R91505) good battery, is Ethernet Ports ifType ifSpeed Mtu Ipaddress Status Errors
---------- --------------- ---------- ----- --------------- ------- -------
eth0 ethernet-csmacd 1000000000 Temperature Sensors Value Normal Range Status
----------------------------------- --------- --------------- ---------------
Control module 0 processor 50 10-90 normal
Control module 0 chipset 19 10-45 normal
Control module 1 processor 48 10-90 normal
Control module 1 chipset 19 10-45 normal
Control module 0 SAS Controller 49 10-110 normal
Control module 0 SAS Expander 57 10-110 normal
Control module 0 SES Enclosure 22 10-60 normal
Control module 1 SAS Controller 47 10-110 normal
Control module 1 SAS Expander 52 10-110 Fans Speed Normal Range Status
------------------------------ --------- --------------- ---------------
Power Cooling Module 0 Fan 0 3420 2100-5200 normal
Power Cooling Module 0 Fan 1 3390 2100-5200 normal
Power Cooling Module 1 Fan 0 3420 2100-5200 normal
Power Cooling Module 1 Fan 1 3420 2100-5200 Power Supplies Status FanStatus
--------------- ---------------
Power Cooling Module 0 on not-applicable
Power Cooling Module 1 on not-applicable
CLI> shutdown
Do you really want to shutdown the system? (yes/no) [no]yes
Halt at Thu Oct 24 09:22:35 EDT 2013 -- please wait...
340:0:logevent:24-Oct-2013 has initiated a clean halt restart.
The array has been halted.
You can safely power off the array or type any key to restart the array.
# #
# EqualLogic (R), Inc. storage array #
# Copyright 2001-2007 #
# 70-0111 Rev=R07 SN=RMS83308A02B2BB ECO=C02 #
# #
-- Type Ctrl-p key to enter setup mode --
BOOTROM version 7.0.0
Build Date: Tue Jul 8 04:32:59 EDT 2008
Total memory: 0x40000000 bytes (1024MB)
NP Loading ...Done
SP Loading ...Done
Dell, Inc. Storage Array
Copyright 2001-2011 Dell, module in slot 0 with serial number RMS83308A02B2BB is designated as active.
MFS set up
Building databases...
Thu Oct 24 09:36:51 EDT 2013
ipctunnel: 127.0.0.1: Undefined error: 0
Oct 24 09:36:51 init: kernel security level changed from 0 to 1
PS Series Storage Arrays
Unauthorized Access Prohibited
login: grpadmin
Password:
Welcome to Group Manager
Copyright 2001-2011 Dell, Inc.
CLI> show
_____________________________ Member Information ______________________________
Model: 70-0111 Serial-Number: SHU951160004A73
Disks: 16 Spares: 2
Controllers: 2 CacheMode: write-thru
Service Tag: Not Set
Disks Model Size Status Errors
---- ------------------------- -------------- ------- -------
0 ST3450856SS 419.19GB online 0
1 ST3450856SS 419.19GB online 0
2 ST3450856SS 419.19GB online 0
3 ST3450856SS 419.19GB online 0
4 ST3450856SS 419.19GB online 0
5 ST3450856SS 419.19GB online 0
6 ST3450856SS 419.19GB online 0
7 ST3450856SS 419.19GB online 0
8 ST3450856SS 419.19GB online 0
9 ST3450856SS 419.19GB online 0
10 ST3450856SS 419.19GB online 0
11 ST3450856SS 419.19GB online 0
12 ST3450856SS 419.19GB online 0
13 ST3450856SS 419.19GB online 0
14 ST3450856SS 419.19GB spare 0
15 ST3450856SS 419.19GB spare Controllers _________________________________
ID Model CM Rev. SW Rev. Status
-- ---------- ---------- -----
0 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery, is charging
1 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery, is Ethernet Ports ifType ifSpeed Mtu Ipaddress Status Errors
---------- --------------- ---------- ----- --------------- ------- -------
eth0 ethernet-csmacd 1000000000 Temperature Sensors Value Normal Range Status
----------------------------------- --------- --------------- ---------------
Control module 0 processor 44 10-90 normal
Control module 0 chipset 17 10-45 normal
Control module 1 processor 40 10-90 normal
Control module 1 chipset 18 10-45 normal
Control module 0 SAS Controller 44 10-110 normal
Control module 0 SAS Expander 53 10-110 normal
Control module 0 SES Enclosure 21 10-65 normal
Control module 1 SAS Controller 43 10-110 normal
Control module 1 SAS Expander 48 10-110 Fans Speed Normal Range Status
------------------------------ --------- --------------- ---------------
Power Cooling Module 0 Fan 0 3420 2100-5200 normal
Power Cooling Module 0 Fan 1 3420 2100-5200 normal
Power Cooling Module 1 Fan 0 3390 2100-5200 normal
Power Cooling Module 1 Fan 1 3390 2100-5200 Power Supplies Status FanStatus
--------------- ---------------
Power Cooling Module 0 on not-applicable
Power Cooling Module 1 on not-applicable
CLI> shutdown
Do you really want to shutdown the system? (yes/no) [no]yes
Halt at Thu Oct 24 09:39:03 EDT 2013 -- please wait...
493:0:logevent:24-Oct-2013 has initiated a clean halt restart.
The array has been halted.
You can safely power off the array or type any key to restart the array.
# #
# EqualLogic (R), Inc. storage array #
# Copyright 2001-2007 #
# 70-0111 Rev=R07 SN=RMS83308A032EA7 ECO=C02 #
# #
Type Ctrl-p key to enter setup mode --
BOOTROM version 7.0.0
Build Date: Wed Dec 19 01:50:35 EST 2007
Total memory: 0x40000000 bytes (1024MB)
NP Loading ...Done
SP Loading ...Done
Dell, Inc. Storage Array
Copyright 2001-2011 Dell, module in slot 0 with serial number RMS83308A032EA7 is designated as active.
MFS set up
Building databases...
Thu Oct 24 10:39:46 EDT 2013
ipctunnel: 127.0.0.1: Undefined error: 0
Oct 24 10:39:46 init: kernel security level changed from 0 to 1
PS Series Storage Arrays
Unauthorized Access Prohibited
login: grpadmin
Password:
Welcome to Group Manager
Copyright 2001-2011 Dell, Inc.
CLI> show
_____________________________ Member Information ______________________________
Model: 70-0111 Serial-Number: SHU951160004A70
Disks: 16 Spares: 2
Controllers: 2 CacheMode: write-thru
Service Tag: Not Set
Disks Model Size Status Errors
---- ------------------------- -------------- ------- -------
0 ST3450856SS 419.19GB online 0
1 ST3450856SS 419.19GB online 0
2 ST3450856SS 419.19GB online 0
3 ST3450856SS 419.19GB online 0
4 ST3450856SS 419.19GB online 0
5 ST3450856SS 419.19GB online 0
6 ST3450856SS 419.19GB online 0
7 ST3450856SS 419.19GB online 0
8 ST3450856SS 419.19GB online 0
9 ST3450856SS 419.19GB online 0
10 ST3450856SS 419.19GB online 0
11 ST3450856SS 419.19GB online 0
12 ST3450856SS 419.19GB online 0
13 ST3450856SS 419.19GB online 0
14 ST3450856SS 419.19GB spare 0
15 ST3450856SS 419.19GB spare Controllers Model CM Rev. SW Rev. Status
-- ---------- ---------- -----
0 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery, is charging
1 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery, is Ethernet Ports ifType ifSpeed Mtu Ipaddress Status Errors
---------- --------------- ---------- ----- --------------- ------- -------
eth0 ethernet-csmacd 1000000000 Temperature Sensors Value Normal Range Status
----------------------------------- --------- --------------- ---------------
Control module 0 processor 49 10-90 normal
Control module 0 chipset 19 10-45 normal
Control module 1 processor 40 10-90 normal
Control module 1 chipset 19 10-45 normal
Control module 0 SAS Controller 46 10-110 normal
Control module 0 SAS Expander 54 10-110 normal
Control module 0 SES Enclosure 21 10-65 normal
Control module 1 SAS Controller 44 10-110 normal
Control module 1 SAS Expander 49 10-110 Fans Speed Normal Range Status
------------------------------ --------- --------------- ---------------
Power Cooling Module 0 Fan 0 3420 2100-5200 normal
Power Cooling Module 0 Fan 1 3420 2100-5200 normal
Power Cooling Module 1 Fan 0 3390 2100-5200 normal
Power Cooling Module 1 Fan 1 3450 2100-5200 Power Supplies Status FanStatus
--------------- ---------------
Power Cooling Module 0 on not-applicable
Power Cooling Module 1 on not-applicable
CLI> shutdown
Do you really want to shutdown the system? (yes/no) [no]yes
Halt at Thu Oct 24 10:42:16 EDT 2013 -- please wait...
513:0:logevent:24-Oct-2013 has initiated a clean halt restart.
The array has been halted.
You can safely power off the array or type any key to restart the array.
# #
# EqualLogic (R), Inc. storage array #
# Copyright 2001-2007 #
# 70-0111 Rev=R07 SN=RMS83308A035C67 ECO=C02 #
# #
Type Ctrl-p key to enter setup mode --
BOOTROM version 7.0.0
Build Date: Wed Dec 19 01:50:35 EST 2007
Total memory: 0x40000000 bytes (1024MB)
NP Loading ...Done
SP Loading ...Done
Dell, Inc. Storage Array
Copyright 2001-2011 Dell, module in slot 0 with serial number RMS83308A035C67 is designated as active.
MFS set up
Building databases...
ipctunnel: 127.0.0.1: Undefined error: 0
Thu Oct 24 11:03:58 EDT 2013
Oct 24 11:03:59 init: kernel security level changed from 0 to 1
PS Series Storage Arrays
Unauthorized Access Prohibited
login: grpadmin
Password:
Welcome to Group Manager
Copyright 2001-2011 Dell, Login to account grpadmin succeeded.
CLI> show
_____________________________ Member Information ______________________________
Model: 70-0111 Serial-Number: SHU951160004A76
Disks: 16 Spares: 2
Controllers: 2 CacheMode: write-thru
Service Tag: Not Set
Disks Model Size Status Errors
---- ------------------------- -------------- ------- -------
0 ST3450856SS 419.19GB online 0
1 ST3450856SS 419.19GB online 0
2 ST3450856SS 419.19GB online 0
3 ST3450856SS 419.19GB online 0
4 ST3450856SS 419.19GB online 0
5 ST3450856SS 419.19GB online 0
6 ST3450856SS 419.19GB online 0
7 ST3450856SS 419.19GB online 0
8 ST3450856SS 419.19GB online 0
9 ST3450856SS 419.19GB online 0
10 ST3450856SS 419.19GB online 0
11 ST3450856SS 419.19GB online 0
12 ST3450856SS 419.19GB online 0
13 ST3450856SS 419.19GB online 0
14 ST3450856SS 419.19GB spare 0
15 ST3450856SS 419.19GB spare Controllers Model CM Rev. SW Rev. Status
-- ---------- ---------- -----
0 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery, is charging
1 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery, is Ethernet Ports ifType ifSpeed Mtu Ipaddress Status Errors
---------- --------------- ---------- ----- --------------- ------- -------
eth0 ethernet-csmacd 1000000000 Temperature Sensors Value Normal Range Status
----------------------------------- --------- --------------- ---------------
Control module 0 processor 48 10-90 normal
Control module 0 chipset 19 10-45 normal
Control module 1 processor 46 10-90 normal
Control module 1 chipset 19 10-45 normal
Control module 0 SAS Controller 46 10-110 normal
Control module 0 SAS Expander 55 10-110 normal
Control module 0 SES Enclosure 22 10-65 normal
Control module 1 SAS Controller 45 10-110 normal
Control module 1 SAS Expander 50 10-110 Fans Speed Normal Range Status
------------------------------ --------- --------------- ---------------
Power Cooling Module 0 Fan 0 3390 2100-5200 normal
Power Cooling Module 0 Fan 1 3420 2100-5200 normal
Power Cooling Module 1 Fan 0 3420 2100-5200 normal
Power Cooling Module 1 Fan 1 3420 2100-5200 Power Supplies Status FanStatus
--------------- ---------------
Power Cooling Module 0 on not-applicable
Power Cooling Module 1 on not-applicable
CLI> shutdown
Do you really want to shutdown the system? (yes/no) [no]yes
Halt at Thu Oct 24 11:10:14 EDT 2013 -- please wait...
383:0:logevent:24-Oct-2013 has initiated a clean halt restart.
The array has been halted.
You can safely power off the array or type any key to restart the array.
# #
# EqualLogic (R), Inc. storage array #
# Copyright 2001-2007 #
# 70-0111 Rev=R07 SN=RMS83308A02CED5 ECO=C02 #
# #
-- Type Ctrl-p key to enter setup mode --
BOOTROM version 7.0.0
Build Date: Thu Jan 24 08:07:38 EST 2008
Total memory: 0x40000000 bytes (1024MB)
NP Loading ...Done
SP Loading ...Done
Dell, Inc. Storage Array
Copyright 2001-2011 Dell, module in slot 0 with serial number RMS83308A02CED5 is designated as active.
MFS set up
Building databases...
Thu Oct 24 11:13:48 EDT 2013
Oct 24 11:13:48 init: kernel security level changed from 0 to 1
PS Series Storage Arrays
Unauthorized Access Prohibited
login: grpadmin
Password:
Welcome to Group Manager
Copyright 2001-2011 Dell, Login to account grpadmin succeeded.
CLI> show
_____________________________ Member Information ______________________________
Model: 70-0111 Serial-Number: SHU9455200023EE
Disks: 5 Spares: 1
Controllers: 2 CacheMode: write-thru
Service Tag: Not Set
Disks Model Size Status Errors
---- ------------------------- -------------- ------- -------
0 ST3450856SS 419.19GB online 0
1 ST3450856SS 419.19GB online 0
2 ST3450856SS 419.19GB online 0
3 ST3450856SS 419.19GB online 0
4 ST3450856SS 419.19GB online 0
5 ST3450856SS 419.19GB online 0
6 ST3450856SS 419.19GB online 0
7 ST3450856SS 419.19GB online 0
8 ST3450856SS 419.19GB online 0
9 ST3450856SS 419.19GB online 0
10 ST3450856SS 419.19GB online 0
11 ST3450856SS 419.19GB online 0
12 ST3450856SS 419.19GB online 0
13 ST3450856SS 419.19GB online 0
14 ST3450856SS 419.19GB spare 0
15 ST3450856SS 419.19GB spare Controllers Model CM Rev. SW Rev. Status
-- ---------- ---------- -----
0 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery, is charging
1 70-0111 R07 Storage Array Firmware V5.0.7 (R172507) good battery, is Ethernet Ports ifType ifSpeed Mtu Ipaddress Status Errors
---------- --------------- ---------- ----- --------------- ------- -------
eth0 ethernet-csmacd 1000000000 Temperature Sensors Value Normal Range Status
----------------------------------- --------- --------------- ---------------
Control module 0 processor 52 10-90 normal
Control module 0 chipset 17 10-45 normal
Control module 1 processor 43 10-90 normal
Control module 1 chipset 18 10-45 normal
Control module 0 SAS Controller 41 10-110 normal
Control module 0 SAS Expander 49 10-110 normal
Control module 0 SES Enclosure 20 10-65 normal
Control module 1 SAS Controller 42 10-110 normal
Control module 1 SAS Expander 46 10-110 Fans Speed Normal Range Status
------------------------------ --------- --------------- ---------------
Power Cooling Module 0 Fan 0 3420 2100-5200 normal
Power Cooling Module 0 Fan 1 3420 2100-5200 normal
Power Cooling Module 1 Fan 0 3420 2100-5200 normal
Power Cooling Module 1 Fan 1 3390 2100-5200 Power Supplies Status FanStatus
--------------- ---------------
Power Cooling Module 0 on not-applicable
Power Cooling Module 1 on not-applicable
CLI> shutdown
Do you really want to shutdown the system? (yes/no) [no]yes
Halt at Thu Oct 24 11:15:12 EDT 2013 -- please wait...
383:0:logevent:24-Oct-2013 has initiated a clean halt restart.
The array has been halted.
You can safely power off the array or type any key to restart the array.
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£1800 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
LA 88927 Tag: C13H9F1- 16 x 450GbDrives
LA 88928 Tag: HX1H9F1 - 16 x 450GbDrives
LA 88929 Tag: BCTCCG1- 16 x 450GbDrives
LA 88930 Tag: 0GTCCG1- 16 x 450GbDrives
LA 88931 Tag: JVDG3H1 - 14 x 450GbDrives
L
