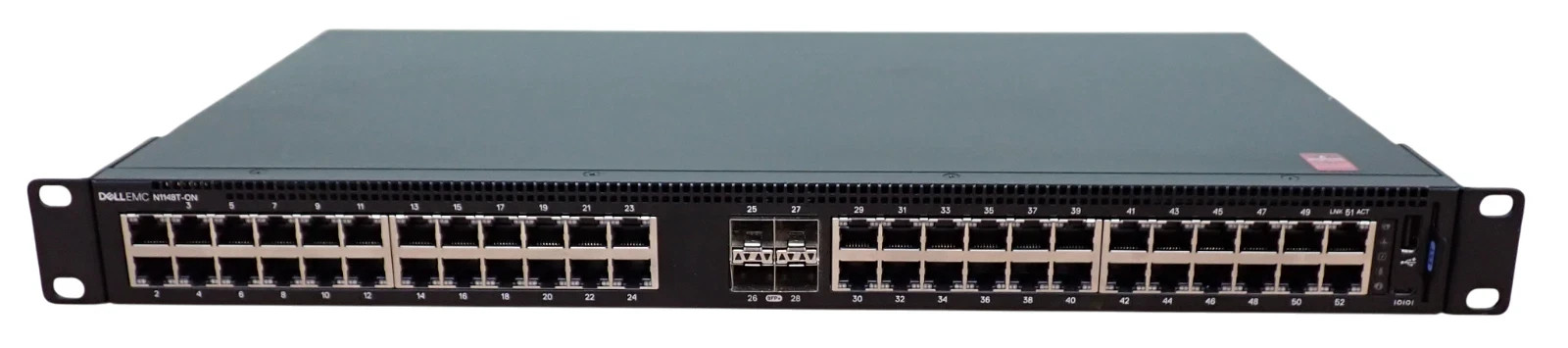

Dell N1148T-ON N1100 48x 1GbE RJ45 + 4x 10GbE SFP+ L2 Managed Network Switch OS6Model:N1148T-ON
In Good Condition, Full Working OrderTested2 Year Warranty
Dell OS6 InstalledIncludes:

• 1 xDell N1148T-ON N1100 48x 1GbE RJ45 + 4x 10GbE SFP+ L2 Managed Network Switch Dell
• Model: N1148T-ON
• Switching Layer: Layer 2
• Ports: 48x RJ45 1GbE
• Additional Ports: 4x SFP+ 10GbE
• Form Factor: 1U Rack
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.95 Mpps
• Power Supply: Dual Internal Power Supply
• Power Consumption: Max 123W
• Cooling: 4x Fans
• Operating Temperature: 0C to 45C (32F to 113F)
• Storage Temperature: -40C to 70C (-40F to 158F)
• Operating Humidity: 5% to 95% non-condensing
• Latency: <2.8s
• Flash Memory: 8 MB
• CPU: ARMv7, 1 GHz
• RAM: 1 GB
• Jumbo Frames: Up to 9,216 bytes
• VLAN IDs: Up to 4,094
• MAC Address Table Size: 16,000 entries

Boot Log:

console#show versionMachine Description............... Dell EMC Networking Switch
System Model ID................... N1148T-ON
Machine Type...................... Dell EMC Networking N1148T-ON
Serial Number..................... 0xbc00
Burned In MAC Address............. 684F.6421.5EA5
System Object ID.................. 1.3.6.1.4.1.674.10895.3082
SOC Version.......................
HW Version........................ 0
CPLD Version...................... 0
Image File........................ N1100v6.7.1.27
Software Capability............... Stack Limit = 4, VLAN Limit = 512unit activebackupcurrent-active next-active
---- ----------- ----------- -------------- system idService Tag: 99XRNK2
Serial Number: CN0386WH282988C80325
Asset Tag: none
Unit Service tagSerial numberAsset tag
---- systemSystem Description: Dell EMC Networking Switch
System Up Time: 0 days, 00h:00m:51s
System Contact:
System Name:
System Location:
Burned In MAC Address: 684F.6421.5EA5
System Object ID: 1.3.6.1.4.1.674.10895.3082
System Model ID: N1148T-ON
Machine Type: Dell EMC Networking N1148T-ONSystem Thermal Conditions:Unit Temperature State
(Celsius)
---- ----------- Sensors:Unit DescriptionTemperature
(Celsius)
---- ------------------ Description Status
---- ----------- -------------USB Port Power Not Present

CSN1148T-ON/REF - 3 dup .co.uk
