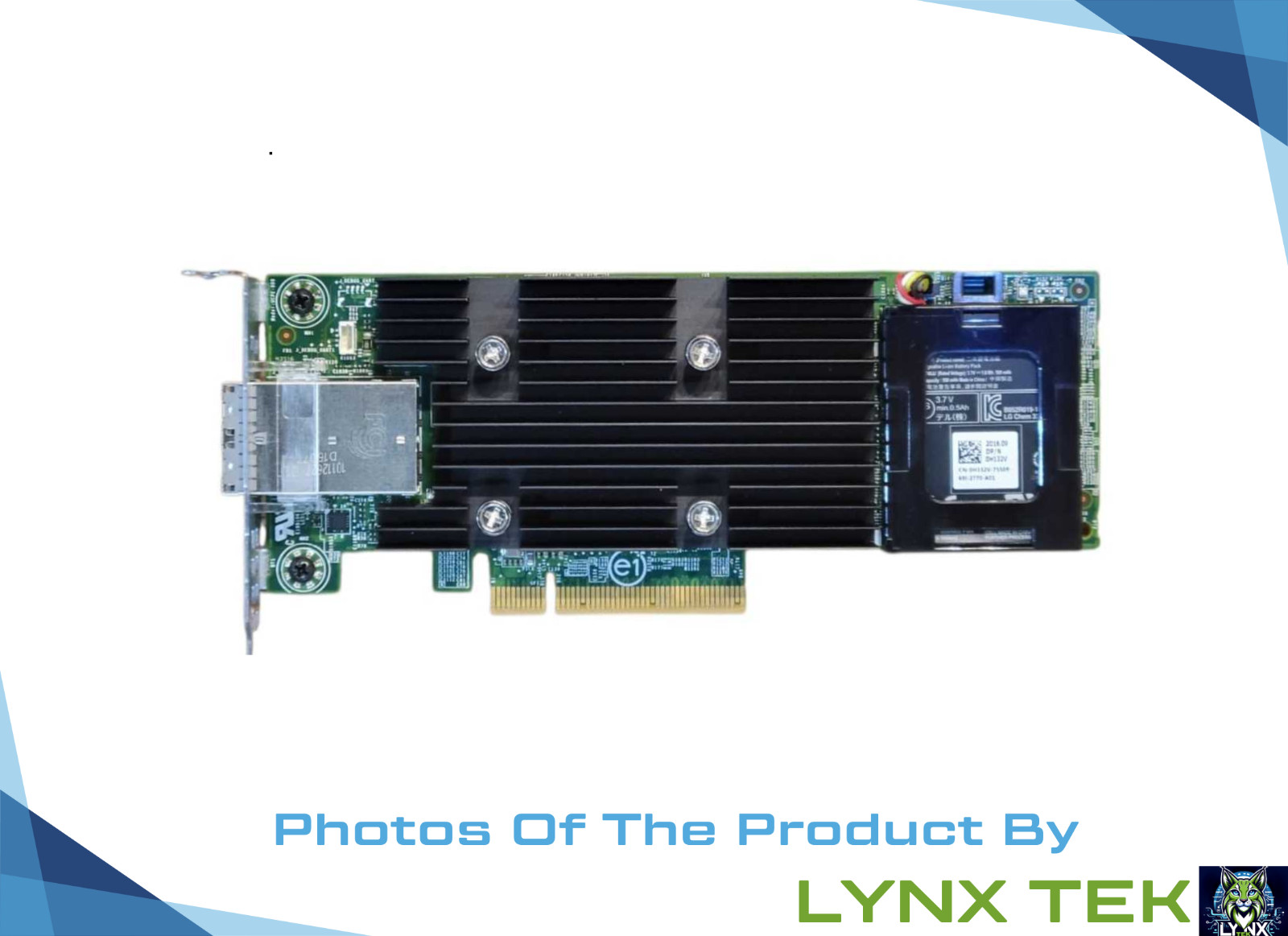

Item Specifics Dell PERC H830 12Gb/s 8-Port External PCIe 3.0 x8 SAS/SATA RAID Controller 2GB NV Cache — 0NR5PCThe Dell PowerEdge RAID Controller (PERC) H830 is an enterprise-grade external SAS RAID controller designed for high-performance storage enclosure configurations. Built on the PERC 9 platform with a PCIe 3.0 x8 interface, it delivers 12Gb/s SAS throughput and 6Gb/s SATA compatibility, making it ideal for data centers, virtualization hosts, and storage-intensive workloads. Featuring 2GB of flash-backed non-volatile cache powered by dual PowerPC cores and a 72-bit DDR3 interface, the H830 provides outstanding data integrity and low-latency performance. It supports up to 255 SAS/SATA drives across eight external ports (2×4-lane SAS connectors) and is compatible with a wide range of Dell PowerEdge 13th generation servers.
Key SpecificationsPart NumberNR5PC / 0NR5PCAlt Part NumbersWH3W8, 0WH3W8, FHWTX, 0FHWTXProduct Line / SeriesDell PERC 9 (PowerEdge RAID Controller)Host InterfacePCI-Express 3.0 x8SAS Interface Speed12Gb/s SAS / 6Gb/s SATAExternal Ports8 ports via 2× SFF-8644 (2×4-lane) connectorsCache Memory2GB Non-Volatile (NV) Flash-Backed CacheCache Interface72-bit DDR3ProcessorDual PowerPC coresRAID Levels Supported0, 1, 5, 6, 10, 50, 60 + Non-RAID (Pass-Through / JBOD)Maximum Drive SupportUp to 255 SAS/SATA drivesForm FactorLow Profile (LP) PCIe card — LP bracket includedCompatible ServersPowerEdge R230, R330, R430, R530, R630, R730, R730xd, R830, R930, T130, T330, T430, T630, VRTX M520/M620, FC630BrandDellFeatures & Capabilities- 12Gb/s SAS for maximum throughput with SAS SSDs and spinning HDDs
- 2GB Flash-Backed Non-Volatile Cache — protects write cache data for a virtually unlimited duration
- Dual PowerPC processor cores for offloaded RAID processing
- Supports RAID 5 and RAID 6 for robust parity-based data protection
- RAID 50 and RAID 60 support for large-scale striped parity arrays
- Non-RAID / JBOD / pass-through mode for HBA-style operation
- Online RAID Level Migration (RLM) — change RAID level without downtime
- Online Capacity Expansion (OCE) — expand array capacity on the fly
- Load balancing for optimized I/O distribution across drives
- Dell OpenManage / iDRAC integration for real-time RAID monitoring and management
- Pre-boot RAID configuration via CTRL+R utility
- Dimmer Switch technology compliant
- Compatible with VMware ESXi, Windows Server, Red Hat Enterprise Linux, SUSE Linux
- Designed exclusively for external storage enclosures (not internal drive bays)
What's Included- 1× Dell PERC H830 RAID Controller Card (0NR5PC) in an anti-static clamshell
- Low Profile (LP) bracket installed
No SAS cables or Full Height brackets included
⚠ EXTERNAL STORAGE CONTROLLER: The PERC H830 is designed for use with external SAS storage enclosures (e.g. PowerVault MD1400, MD1420) via SFF-8644 SAS cables — it does NOT manage internal server drive bays. If you need a controller for internal drives, please see the Dell PERC H730 or H730P instead.
END-OF-LIFE NOTICE: The Dell PERC H830 is an end-of-life product within Dell's current active lineup. It remains fully functional and widely used in 13th-generation PowerEdge environments, but is no longer sold new by Dell. Replacement firmware and management tools remain available through Dell's support portal.
