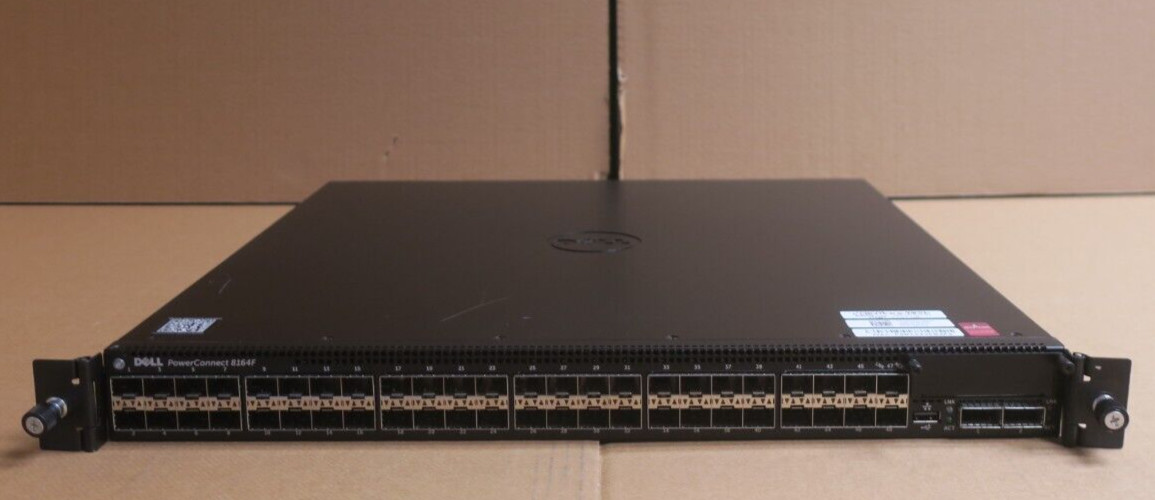

Dell PowerConnect 8164F 48x 1/10GbE SFP+ + 2x 40GbE QSFP+ Port L3 1U Switch
Model:PowerConnect 8164F / Networking N4046F
In Good Condition, Full Working OrderTested2 Year WarrantyFront to Back Airflow
Included:

• 1 xDell PowerConnect 8164F 48x 1/10GbE SFP+ + 2x 40GbE QSFP+ Port L3 1U Switch
• 2 x 460W Power Supply - XN7P4
• 2 x Fan Module - TT58F

Overview:Scalable high density, Layer 3 10/40Gb Ethernet switches for aggregation and core switching in a compact 1U form factor.
The Dell Networking 8100 10-Gigabit Ethernet switches are high-density Layer 3 core and aggregation switches engineered to deliver unprecedented performance, and accelerate workloads in demanding campus and business environments. Purpose-built to deliver advanced functionality and energy-efficient operation for small and large enterprises, these switches feature high density up to 384 10-Gigabit ports, 40GbE uplinks, High Availability (HA) stacking and simplifi ed manageability.
Purpose-built for next generation campus environmentsThe Networking 8100 Series are line-rate, high density 10/40Gb Ethernet switches designed for Enterprise campus and mid-market core and aggregation deployments requiring high throughput and availability. These high density 24-port and 48-port 10Gb switches are ready for converged Ethernet environments supporting virtualization, iSCSI storage, and 10Gb traffic aggregation. Together with the Networking 1 GbE switch portfolio, the 8100 switches enable a campus fabric composed of 1 and 10GbE ports off ering full routing functionality. Up to six switches can be stacked and managed with a single IP address to deliver network performance and resiliency for enterprise networks.
Enabling network convergenceThe Networking 8100 Series support converged fabric requirements for SAN and LAN networks with loss-less operation for iSCSI environments with DCB (Data Center Bridging). iSCSI traffic can also be monitored at the fabric level, allowing the administrator to track active iSCSI sessions. In addition, these switches deliver simplifi ed connectivity with DellequalLogic™ arrays. The iSCSI Auto-Confi guration feature automatically detects the arrays and confi gures the switch for optimal throughput. This feature is enabled by default, streamlining the process to just connecting a cable.
10 Gb performance and high availabilityThe Networking 8100 Series brings the benefi ts of 10 and 40Gb Ethernet to a compact and reliable switching platform, with the quality and great service of Dell. Operating at wire speed, the 8100 switches can deliver up to 960 Mpps throughput and a data rate of up to 1.2Tbps (full duplex) for both Layer 2 and Layer 3 environments for wire-speed 10Gb and 40Gb Switching.The Networking 8100 Series is designed for non-stop networking with high availability stacking, 10- and 40GbE capabilities, dual hot-swap, redundant power supplies, and removable fan modules. Up to 384 10GbE ports can be managed from a single screen using the highly-available stacking architecture, and the entire stack can be redundantly linked back to the rest of the network at 40Gb via the QSFP+ stacking ports.Fast stack failover enables sub-50ms failover scenarios within the same stack. These switches also incorporate dual fi rmware images to allow for image promotions or image redundancy in a network.
Specification:Port Attributes

• Port Attributes: 48x 10Gb SFP+ (10Gb/1Gb) ports + dual QSFP+ 40GbE ports; upgradeable to 64 ports with optional QSFP+/40GbE module;
• One 40Gb QSFP/Uplink/Stacking/10Gb Module Bay: Standard
• USB Port — Allows for file import/export locally: Standard
• Dedicated Out-of-band Ethernet management and console RJ-45 ports: Standard
• Power efficient 10GBASE-T ports that reduce power draw by as much as 20% for short cable runs: Standard
• Auto-negotiation for speed (10Gb/1Gb/100Mb), duplex mode and flow control on 10GBASE-T ports. SFP+ ports are 10Gb or 1Gb (supports SFP+ or SFP modules). QSFP+ ports are 40Gb: Standard
• Auto MDI/MDIX: Standard
• Port mirroring: Standard
• Broadcast storm control: Standard
• EEE (IEEE802.3az) per port settings: Standard
• Port pofile support including admin profiles: Standard
• Supports DCB requirements including PFC (802.1Qbb), ETS (802.1Qaz), DCBx, iSCSI TLV 2.2, iSCSI Optimization with wire speed performance on all ports:
• iSCSI Auto-configuration: Standard
• Resilient HA stacking with up to 6 switches: Standard

Performance

• Total Switch Fabric Capacity up to: 1.2Tbps
• Forwarding Rate: Up to 960Mbps
• Up to 128,000 MAC Addresses: Standard
• 9 Mb Packet Buffer Memory: Standard
• 9216 Byte maximum packet size (Jumbo Frame): Standard

Availability

• Spanning Tree (IEEE 802.1D), Multiple Spanning Tree (MSTP) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support: Standard
• Spanning Tree optional features — STP root guard, BPDU guard, BPDU filtering: Standard
• Supports Virtual Redundant Routing Protocol (VRRP): Standard
• Dual Image Support: Standard
• Configuration file upload and download (USB supported): Standard
• Switch Auditing support: Standard
• sFlow support: Standard
• Cable diagnostics via Virtual Cable Tester: Standard
• SFP/SFP+ transceiver diagnostics: Standard
• UDLD: Standard

Layer 3 Routing Protocols

• Static routes: Standard
• Routing Information Protocol (RIP) v1/v2: Standard
• Open Shortest Path First (OSPF) v1/v2/v3: Standard
• Classless Inter-Domain Routing (CIDR): Standard
• Internet Control Message Protocol (ICMP): Standard
• ICMP Router Discover Protocol (IRDP): Standard
• Virtual Redundant Routing Protocol (VRRP): Standard
• Address Resolution Protocol (ARP): Standard
• Internet Group Management Protocol (IGMP) v1/v2/v3: Standard
• Distance-Vector Multicast Routing Protocol (DVMRP): Standard
• DHCP — Helper/Relay: Standard

VLAN

• VLAN support for tagging and port-based as per IEEE 802.1Q; protocol-based VLANs: Standard
• Supports up to 1000 Simultaneous VLANs, with 4000 VLAN IDs: Standard
• Dynamic VLAN with GVRP support: Standard
• Protocol-based VLANs: Standard
• 802.1x Auto VLAN: Standard
• Private VLAN extensions: Standard

Quality of Service

• Layer 2 Trusted Mode (IEEE 802.1p tagging): Standard
• Layer 3 Trusted Mode (DSCP): Standard
• Layer 4 Trusted Mode (TCP/UDP): Standard
• Advanced Mode using Layer 2/3/4 flow-based policies, including metering/rate limiting, marking and bandwidth guarantees: Standard
• Up to 100 ACLs can be used for QoS flow identification via Class-maps: Standard
• 8 Priority Queues per port: Standard
• RED/WRED: Standard
• Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling: Standard
• Port-based QoS Services Mode: Standard
• Flow-based QoS Services Mode: Standard
• IPv4 and IPv6 support: Standard

Multicast

• Dynamic Multicast Support — up to 256 Multicast groups supported in IGMP Snooping or static Multicast: Standard
• IGMP Snooping v1/v2/v3: Standard
• IGMP Snooping Querier: Standard
• PIM-SM, PIM-DM: Standard
• Support for unicast NLB (multicast NLB not supported): Standard

Security

• Time Controlled ACLs: Standard
• ACL Logging: Standard
• Up to 100 Access Control Lists (ACLs) supported: Standard
• Up to 1K rules per ACL, 4K rules total (1K Ingress rules, 512 Egress rules): Standard
• Switch access password protection: Standard
• Optional strong password enforcement: Standard
• User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access: Standard
• Port-based MAC Address alert and lock-down: Standard
• IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP: Standard
• RADIUS (RFC 2865) and TACACS+ (RFC 1492) remote authentication for switch management access; TACACS+ Accounting; AAA Authorization: Standard
• SSLv3 and SSHv2 encryption for switch management traffic: Standard
• DHCP Snooping: Standard
• Management access filtering via Management Access Profiles: Standard
• IEEE 802.1x based edge authentication, 802.1x Monitor Mode (logging without enforcement): Standard
• Dynamic ARP Inspection: Standard

Other Switching

• iSCSI optimization and monitoring: Standard
• Auto-detection and configuration for DellequalLogic™ arrays: Standard
• Egress rate shaping and Ingress Rate limiting: Standard
• Link Aggregation with support for up to 72 link aggregation groups (LAGs) per switch and up to 8 member ports per LAG (IEEE 802.3ad): Standard
• LACP support (IEEE 802.3ad): Standard
• Supports jumbo frames up to 9K bytes: Standard
• IPv6 Host Support: Standard
• IPv4 Support: Standard
• Support for unicast NLB (multicast NLB not supported): Standard

Management

• Industry-standard CLI accessible via Telnet, Out-of-Band Ethernet, SSH or local console (RJ45 Yost): Standard
• Robust HTTP GUI Management: Standard
• sflow: Standard
• Management IP Address Conflict Notification: Standard
• SNMPv1, SNMP v2c, SNMP v3 supported: Standard
• USB Drive Support: Auto-Configuration, Firmware: Standard
• 4 RMON groups supported (history, statistics, alarms and events): Standard
• HTTP and TFTP transfers of firmware and configuration files: Standard
• Dual Firmware images on-board: Standard
• Multiple configuration file upload/download supported: Standard
• Statistics for error monitoring and performance optimization including port summary tables: Standard
• BootP/DHCP IP address management supported: Standard
• DHCP Auto Configuration, DHCP Auto Image Upgrade: Standard
• LLDP-MED Support: Standard
• SNTP Support: Standard
• Layer 3 Traceroute: Standard
• Telnet Client: Standard
• Syslog remote logging capabilities: Standard

Hardware

• 2GB of CPU DRAM: Standard
• 256MB of Flash Memory: Standard
• 9MB Packet Buffer Memory: Standard

Power

• Power Consumption Max (Watts): 220W
• Power Consumption (BTU/hr): 754.82
• Maximum Current Draw per system: 2.0A at 100/120 VAC / 0.98A at 200/240 VAC

Boot Log:

System ModelID................... Dell Networking In MACAddress............. F8B1.562F.B3F4
System ObjectID.................. 3
CPLDVersion...................... 17unit active backup current-active next-active
---- ---------------------- -------------- --------------
1 6.3.1.86.3.1.8 6.3.1.8 Dell Networking Switch
System Up Time: 0days, 00h:03m:55s
System Contact:
System Name:
System Location:
Burned In MACAddress: F8B1.562F.B3F4
System Object ID:1.3.6.1.4.1.674.10895.3046
System Model ID:N4064F
Machine Type:Dell Networking N4064FSystem ThermalConditions:Unit TemperatureState
(Celsius)
---- ----------------------
1 Temperature
(Celsius)
---------------------- -----------
1 MAC 32
1 CPU 33
1 PHY (left side) 26
1 PHY (right side) 27Fans:Unit DescriptionStatus
---- -----------------
1 Fan-1OK
1 Fan-2OK
1 Fan-3OK
1 Fan-4OK
1 PS-1 FanOK
1 PS-2 FanOKPower Supplies:Unit DescriptionStatus Average Current Since
Power Power Date/Time
(Watts) (Watts)
---- ----------------------- ---------- ---------------------------
1 System OK 66.7 68.8
1 Internal(R) OK41.8 43.4 07/01/2024 15:22:02
1 Internal(L) OK25.0 25.3 07/01/2024 15:22:02USB Port NotPresentconsole#showsystem idService Tag:4Z9ZZY1
Serial Number:CN08KHT12829842K0019A00
Asset Tag: none
Unit Servicetag Serial number Asset tag
---------------- -------------- ------------
1 4Z9ZZY1 CN08KHT12829842K0019A00 none
