Dell WD22TB4 180W Thunderbolt 4 Docking Station USB-C Laptop Dock w/ Genuine Dell AC Adapter Dual Thunderbolt 4, HDMI, Dual DisplayPort, Gigabit Ethernet
Dell's modular Thunderbolt 4 dock, built for future-ready performance. Two Thunderbolt 4 ports and 40 Gbps bandwidth turn a single cable into a full desktop workstation, driving up to four displays and connecting monitors, storage, audio, and wired networking at once. Backward compatible with Thunderbolt 3 and USB-C. Ships with the genuine Dell 180W power adapter delivering up to 130W of charging power.
Product Overview
The Dell WD22TB4 is the world's first modular Thunderbolt 4 dock, connecting over a single cable to add two Thunderbolt 4 ports, HDMI, dual DisplayPort, USB-A/USB-C, audio and Gigabit Ethernet. It supports up to four external displays (dual 4K @ 60Hz or triple FHD) and up to a single 5K display, with 40 Gbps data transfer. The included genuine Dell 180W adapter provides up to 130W power delivery to Dell laptops (90W to non-Dell) via ExpressCharge fast charging. Backward compatible with Thunderbolt 3 and standard USB-C hosts. Note: on macOS, especially Apple Silicon Macs, multi-monitor extended mode over a single DisplayPort stream (MST) is not supported and displays may mirror. Inspected, tested, and confirmed fully functional.
Specifications BrandDell (Genuine / OEM) ModelDell WD22TB4 (Thunderbolt 4) MPN / P/NWD22TB4 / 0MT6V9 UPC884116420064 TypeDocking Station ConnectionThunderbolt 4 over USB-C (40 Gbps) — backward compatible with TB3 / USB-C Power AdapterGenuine Dell 180W AC adapter (power cord included) Power DeliveryUp to 130W to Dell laptops / up to 90W to non-Dell systems Display SupportUp to 4 displays; Dual 4K @ 60Hz or Triple FHD Maximum ResolutionUp to 5120 x 2880 (5K) @ 60Hz Thunderbolt / Video2 × Thunderbolt 4, 2 × DisplayPort 1.4, 1 × HDMI 2.0, 1 × USB-C MFDP USB Ports3 × USB-A 3.2 Gen 1 (1 with PowerShare), 1 × USB-C 3.2 Gen 2 AudioCombo audio in/out NetworkingGigabit Ethernet (RJ-45) CoolingPassive (fanless) Enterprise FeaturesDell ExpressCharge, MAC address pass-through, PXE Boot, Wake-on-LAN OS SupportWindows 10 / 11, Ubuntu; works with macOS (limited) Country of OriginChina Key Features & What's Included
- Two Thunderbolt 4 ports40 Gbps bandwidth for displays, storage and daisy-chaining
- Up to 4 displaysdual 4K @ 60Hz or triple FHD, single 5K supported
- Single-cable dockingfull workstation setup in one connection
- Gigabit Ethernet, audio, plus multiple USB-A and USB-C ports
- Up to 130W power delivery with ExpressCharge fast charging while docked
- Fanless passive cooling and includes genuine Dell 180W AC adapter

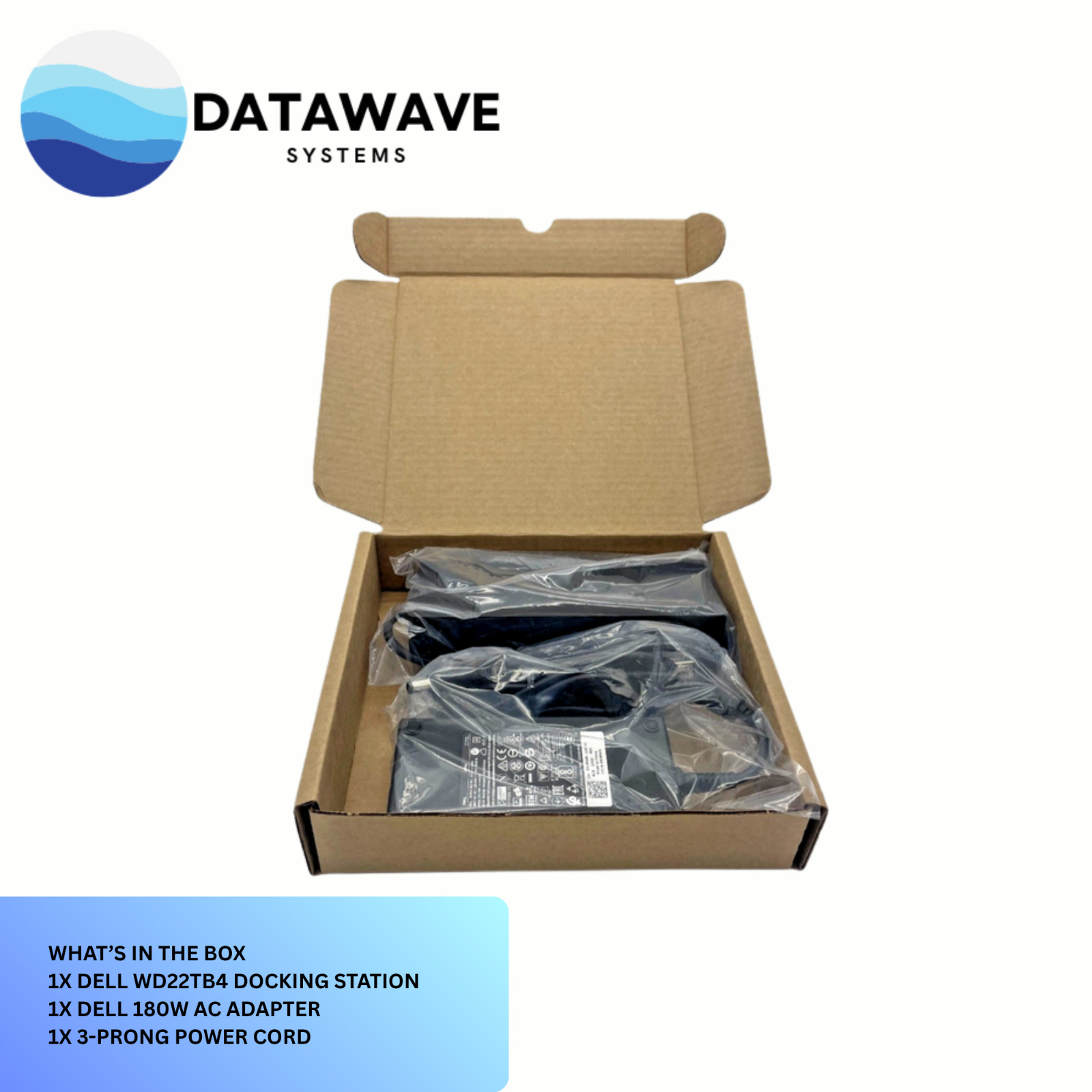

- 1 x Dell WD22TB4 Docking Station
- 1 x Genuine Dell 180W AC Adapter
- 1 x 3-Prong Power Cord
Condition — Open Box Functional Fully Functional Inspected and tested. Thunderbolt 4, all ports and power delivery verified operational. Cosmetic Open Box Excellent cosmetic condition with minimal to no signs of handling. Packaging may show light storage wear. Data Non-Data Device This is a docking accessory and stores no user data. Terms of Sale Shipping & Carrier Selection
