Upgrade your Dell XPS 27 7760 with this high-performance motherboard, designed for Intel LGA1151 socket. This model, part number Y5J85, supports 6th and 7th Gen Intel Core i5/i7 processors, allowing for seamless multitasking and robust performance. With four DDR4 SO-DIMM slots, experience up to 64GB of memory at 2133 MHz for optimal speed. Connect effortlessly with various USB ports, HDMI, and Thunderbolt 3. Ideal for upgrading your All-in-One system, it ensures compatibility and superior functionality. Elevate your computing experience with this reliable motherboard crafted specifically for Dell XPS.

Genuine HP MAH P SERIES 460499-001 462969-B21 462976-001 Raid Controller Battery $41.99 Shop Fortinet Fortigate FG-61E Firewall Network Security Appliance ATP Bundle 1 years $299.99 Shop Dell Wyse 3040 Thin Client, Intel Atom x5 2GB RAM 16GB SSD Keyboard & Mouse Kit! $125 Shop USB to Gigabit Network Adapter - USB 3.0 Single Mode Fiber (SMF)/(MMF) US1GA30SF $69.99 Shop New Dell Optiplex 3020 9020 Micro Dual VESA Mounting Kit 01C3XR 2CPFW NMGDM $29.99 Shop Dell Nvidia Tesla Referral K80 GPU 24GB GDDR5 Server Accelerator Graphics Card HHCJ6 $88.62 Shop Tablet Docking Station 0HR73C Dell K10A Venue 11 Pro 5130 7130 7139 Series 1V3M8 $16.99 Shop HGST Ultrastar SS200 480GB SAS 12Gb/s SSD 2.5" SED 1.8K Read 1K Write 0TS1393 $138.99 Shop Polycom VVX 411 Black 12-Line 3.5" 320x240 Backlit LCD VoIP Phone 2200-48450-001 $59.89 Shop Polycom RealPresence Trio 8500 5" Touchscreen Conference IP Phone 2200-66700-025 $90.89 Shop

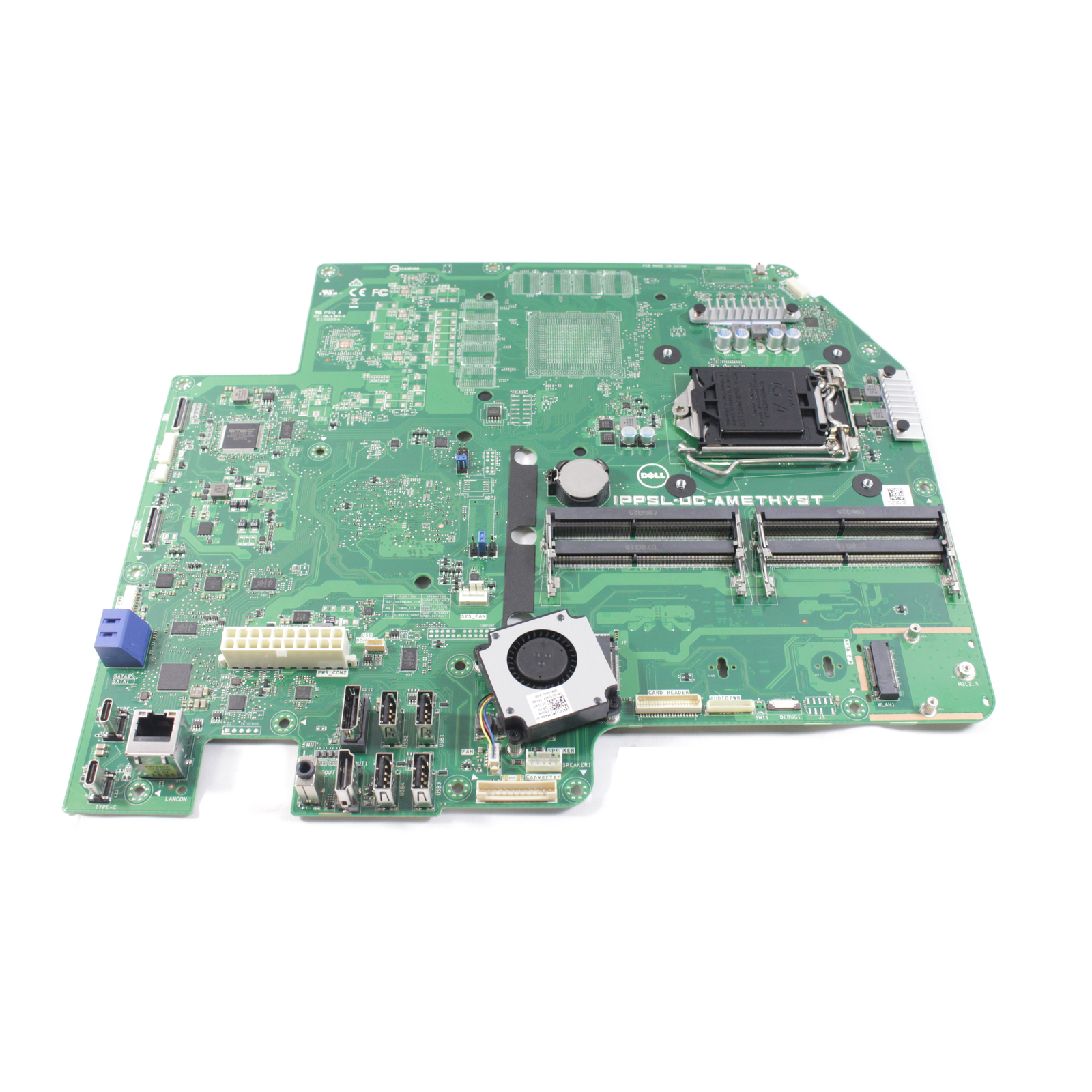

Dell XPS 27 7760 All-in-One Motherboard Intel LGA1151 Socket i7 H170 Y5J85




Brand: Dell
Model: IPPSL-LC AMETHYST
Part Number: Y5J85
MPN: Y5J85, 0Y5J85, CN-0Y5J85
Type: Motherboard
Compatible Brand: For Dell
Compatible Product Line: For Dell XPS
Compatible Model: For Dell XPS 27 7760 AIO
Platform: Intel (LGA 1151 socket for 6th/7th Gen Core CPUs)CPU Support
Socket: LGA1151
Supported CPUs: Intel 6th Gen (Skylake) and 7th Gen (Kaby Lake) Core i5/i7 processors (e.g., i7-6700, i7-7700)
Chipset: Intel H170Memory Support
Memory Slots: 4x DDR4 SO-DIMM slots
Maximum RAM: 64GB DDR4 at 2133 MHzConnectors & Ports on Board
Power Connector: 24-pin ATX power connector
CPU Fan Header
SATA Connectors: 3-4 SATA III ports (seen near lower edge)
USB Headers: Multiple internal USB 2.0/3.0 headers
M.2 Slot: M.2 slot for SSD (visible bottom right)Networking
Ethernet Port: 1x RJ45 onboard NIC (Intel I219-V)
Wireless: Handled via a separate wireless card module (not shown on this board)Audio
Audio Codec: Realtek ALC3246
Audio Header for front panel connectionI/O Ports (Back Panel, soldered to board)
HDMI out
DisplayPort
USB 3.0 ports
Thunderbolt 3 via USB-C
Audio out

This item will be shipped exactly as shown in the picture.
