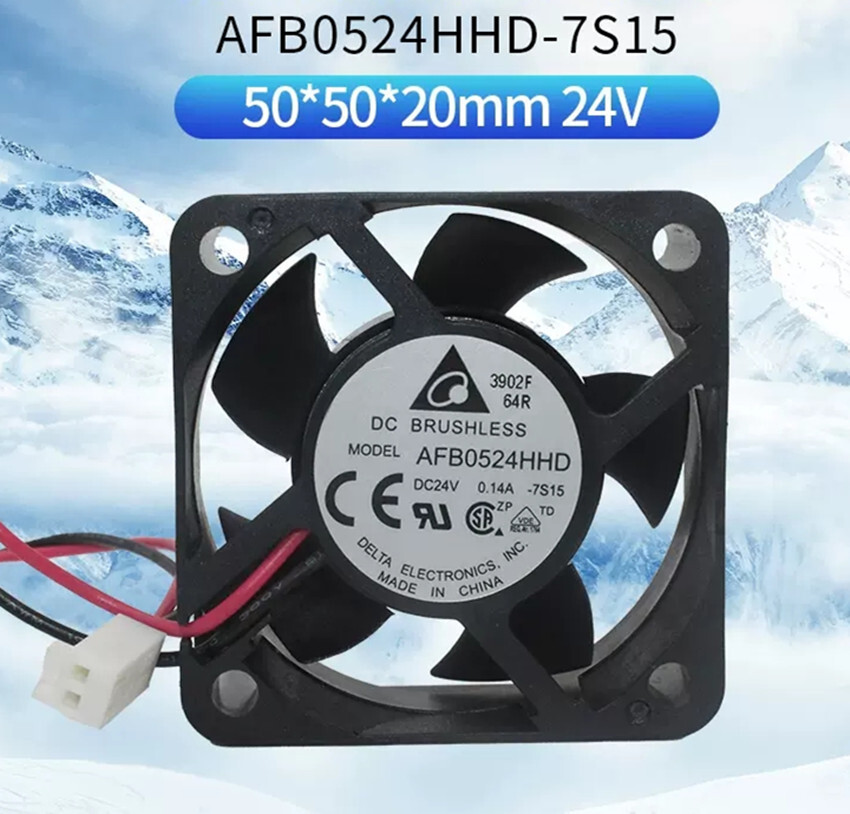

Model : AFB0524HHD

Size 50*50*20mm

Bearing oil bearing

Standard voltage: 24V

Current 0.14A

Line head: 2 lines

Line length: 20 cm

Maintain optimal continuous running time 80,000 hours Service life: 8.000 hours (25 ° C, 45-85% relative humidity)

Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;

Wind blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant;

Fan rotation: counterclockwise from the direction of the blade;

Operating temperature: -10 degrees Celsius to +70 degrees Celsius;

Storage temperature: -40 degrees Celsius to +70 degrees Celsius;

Bearing: oil bearing;

Power range: plus or minus 15% of the rated power supply;

Insulation resistance: greater than 500 megohms;

Withstand voltage: sink current 0.5mA 500V / 1 minute;

Working life: 80000 hours when the ambient temperature is 25 degrees
