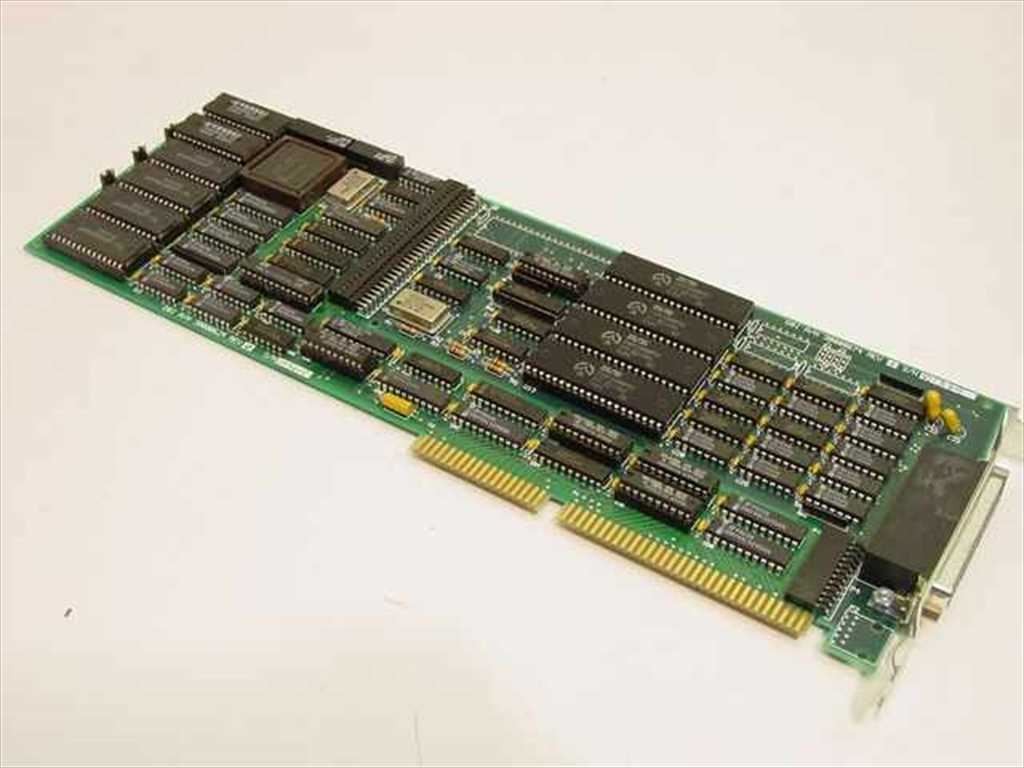

Digi DigiBoard 30000674 16-Bit ISA Controller Card 30000642 30000624 Rev D
Digi DigiBoard 30000674 16-Bit ISA Controller Card 30000642 30000624 Rev D
The Digi DigiBoard 30000674 is a full-length 16-bit ISA expansion card designed to add multi-port asynchronous serial connectivity to ISA-bus host systems. Also referenced under part number 30000642, this board carries the PCB assembly number 30000624 at Revision D. DigiBoard ISA serial cards were a staple product from Digi International, enabling AT-class PCs and compatible workstations to support multiple serial devices simultaneously — a common need in industrial control, point-of-sale, data acquisition, and terminal server applications of the era.
Specifications & What's Included
- Manufacturer: Digi International (DigiBoard)
- Part Number / Model: 30000674
- Secondary Part Number: 30000642
- PCB Assembly Number: 30000624, Revision D
- Bus Interface: 16-bit ISA (AT-compatible)
- Form Factor: Full-length ISA expansion card
- External Connector: High-density multi-pin D-sub style connector on the slot bracket (DB-78 class, for serial port breakout cable/octopus cable)
- Logic ICs: DM74ALS257N (National Semiconductor / Fairchild Advanced Low-Power Schottky multiplexers) — multiple units visible on PCB
- Main controller IC: Large PLCC package on component side (markings not fully legible in photos)
- Board-mounted crystal oscillator present
- Included: Card only — no breakout cables, software, or documentation
Applications
DigiBoard ISA multi-port serial cards were widely used from the late 1980s through the mid-1990s in any environment where a single PC needed to communicate with multiple serial devices at once. Typical deployments included multi-user terminal server setups (connecting ASCII terminals or dumb terminals to a single host), industrial automation (connecting PLCs, barcode readers, serial sensors, and SCADA devices), point-of-sale systems, and data acquisition from serial instruments. The full-length ISA form factor places this card firmly in the AT-bus era — compatible with IBM PC/AT and the wide range of 286, 386, and 486-class machines that used the 16-bit ISA bus before PCI became the dominant standard in the mid-1990s. Today, these cards are sought by legacy system maintainers keeping older industrial or custom-built systems operational, as well as collectors of ISA-era hardware.
Condition: Used
This Digi DigiBoard 30000674 16-bit ISA controller card has been inspected and appears to be in good used condition. The PCB shows typical light handling wear consistent with a pulled board — no cracks, burn marks, or obvious physical damage noted. The high-density external bracket connector appears intact. Please view our photo set and contact us if you have any questions. Visit Our Store
