New 2026 High-Performance Edition Thermally Conductive Double-Sided Adhesive Transfer Tape
High-Tack Fiberglass Mesh Carrier Thermal Interface Tape for CPUs, GPUs, LEDs & PCB Heatsinks
🔥 High-Performance Thermal Interface & Heat Dissipation
Enhance heat dissipation across your electronic assemblies with this high-tack, thermally conductive double-sided transfer tape. Made with a durable fiberglass cloth carrier and pressure-sensitive thermally conductive adhesive, this 0.2 mm (0.008 in) thick tape provides strong adhesion and efficient heat transfer between heating components like CPUs, GPUs, LEDs, and PCB chips to metal heatsinks.
With long-term heat resistance up to 248°F (120°C) and short-term resistance up to 356°F (180°C), it serves as a clean, reliable alternative to liquid thermal glue, mechanical screws, rivets, and metal fasteners on smooth or uneven surfaces.
⚡ Key Features & Product Highlights • 🌡️ High Thermal Conductivity:
Efficiently transfers heat away from electronic chips, LEDs, and processors directly to aluminum or copper heatsinks.
• 🧲 Strong Pressure-Sensitive Adhesive:
High-tack adhesive creates a firm, long-lasting bond requiring only light surface pressure to activate.
• ⚡ Electrical Insulation & Cushioning:
Fiberglass cloth matrix provides electric insulation, shock absorption, and mechanical buffer support.
• 📐 Flexible & Conformable:
Adapts smoothly to micro-gaps and uneven electronic component surfaces for maximum thermal contact.
• 🔄 Fast Mechanical Replacement:
Eliminates the need for liquid thermal paste, screws, rivets, or permanent metal welds.
• 💡 Versatile Component Bonding:
Perfect for GPU IC chips, CPU coolers, LED light strips, power transistors, drive modules, and PCB board assemblies.

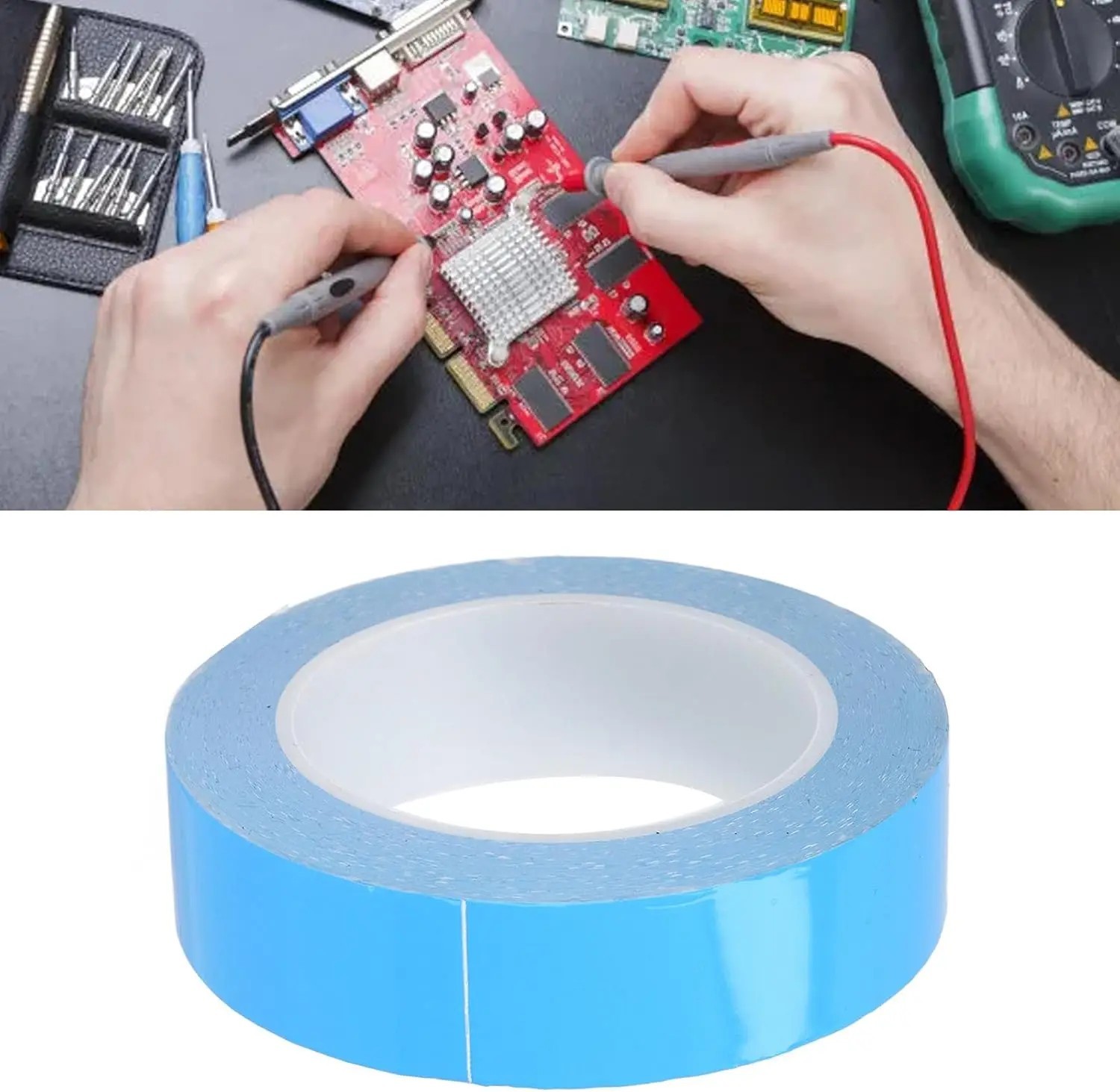

📷 Product Structure & Application Details 📋 Product Specifications & Technical Information Feature / Attribute Imperial / American Standard International Metric Units Product Category Business & Industrial > Adhesives & Tapes Total Tape Length Approx. 32.8 ft Approx. 10 M (10,000 mm) Tape Thickness Approx. 0.008 in Approx. 0.2 mm Available Width Options 0.20 in, 0.39 in, 0.98 in, 1.18 in 5 mm, 10 mm, 25 mm, 30 mm Substrate / Carrier Fiberglass Cloth Mesh Long-Term Resistance 248°F 120°C Short-Term Resistance 356°F 180°C Adhesive Type Thermal Conductive PSA Adhesive Sides Double-Sided Adhesive Backing Liner Color Blue Protective Film Net Roll Weight Approx. 0.07 lbs - 0.22 lbs Approx. 30 g - 100 g (width dependent) Brand Designation Unbranded
* Conversions: 1 in = 2.54 cm = 25.4 mm / 1 M = 3.28 ft = 39.37 in
💻 Compatibility & Recommended Uses
- Electronic Component Compatibility: Compatible with CPU processors, GPU graphics card IC chips, RAM memory modules, LED light strip bars, power MOSFETs, solid-state drives, and PCB circuitry.
- Assembly Applications: Ideal for bonding aluminum or copper heat spreaders to heating components in 3D printers, computer repair, DIY LED retrofits, and automotive electronics.
🛠️ How to Use & Installation Instructions
1. Surface Prep: Clean both contact surfaces (heatsink and chip) with isopropyl alcohol to remove dust and oils.
2. Cut to Size: Cut the required length of tape using sharp scissors or a utility blade.
3. Initial Application: Apply the adhesive side to the component and press firmly across the surface to activate the pressure-sensitive bond.
4. Remove Liner: Peel off the blue protective backing film to expose the top adhesive layer.
5. Final Bonding: Align and firmly press the heatsink onto the exposed tape surface for 5 - 10 seconds.
⚠️ Product Safety Notice: Ensure the device is powered off and unplugged prior to applying or removing thermal tape on circuit boards.
Storage Instructions: Store tape rolls in a cool, dry place away from direct sunlight and extreme dust to maintain maximum adhesive shelf life.
⚠️ Buyer Sizing & Selection Disclaimer:
Package includes 1 Roll of Double-Sided Thermal Conductive Tape in selected width. Board components and heatsinks shown in images are for application demonstration only and are not included.
Dimensions & Sizing Notice: Please select your desired width (5 mm, 10 mm, 25 mm, or 30 mm) from the variation menu prior to ordering. Allow minor 0.004 in - 0.012 in (0.1 mm - 0.3 mm) width variances due to precision manual slitting.
📦 Package Content Inventory List
1 x Roll of Double-Sided Thermal Conductive Adhesive Tape (10 M Length)
