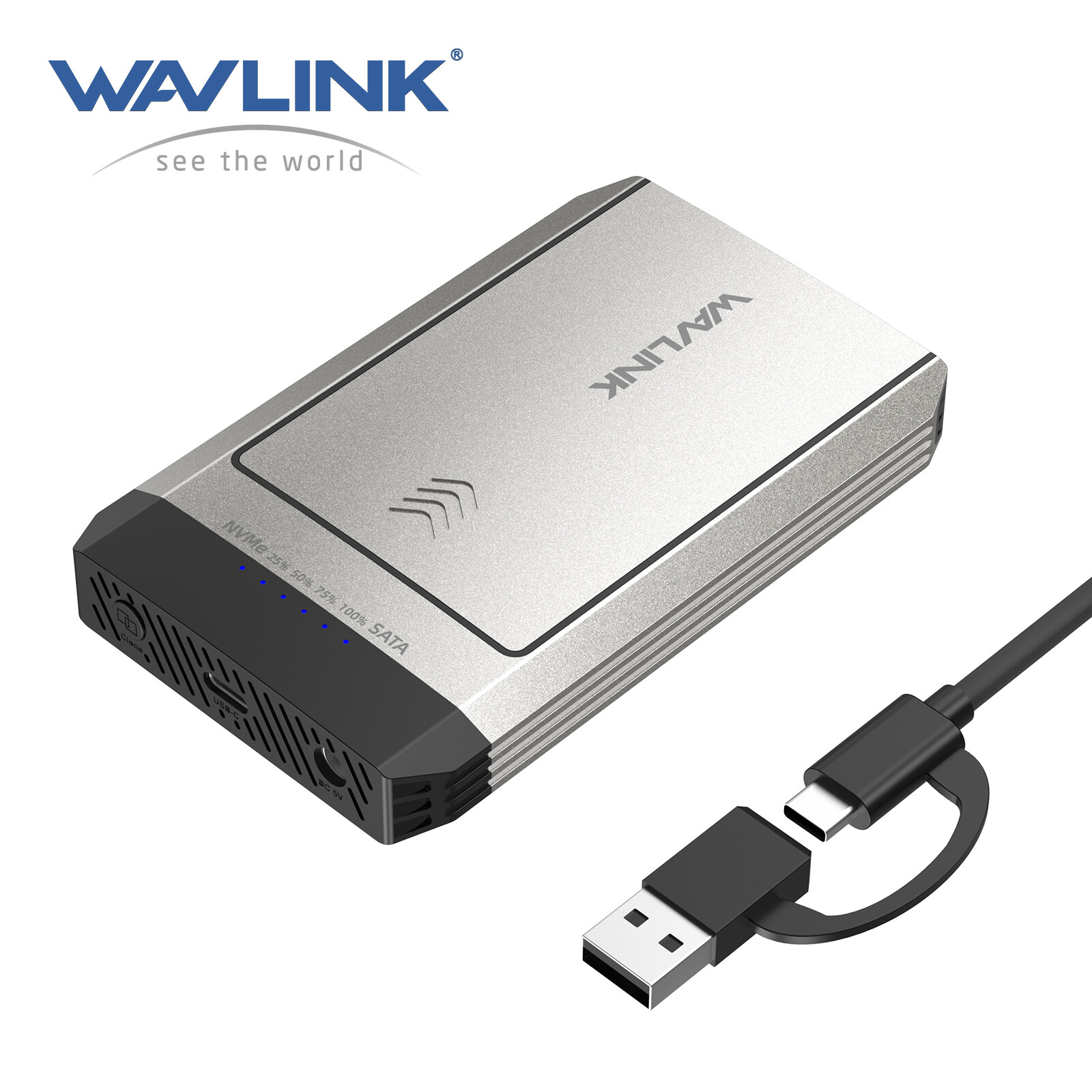

20Gbps/10Gbps M.2 SSD Dual-Bay Hard Drives Enclosure
WAVLINK Hard Drives Enclosure, M.2 SSD Dual-Bay Duplicator, Compatible with NVMe, One Click Offline Clone, 20Gbps /10Gbps USB-C(USB3.2 Gen 2x1), 8TB Expansion Storage(4TBx2)
Product Description:
*One-Click Offline Clone: WAVLINK's hard disk enclosure is a dual-bay device that supports one-click cloning from the source disk to the target disk. You can also change the cloning direction through the toggle switch. Be sure to disconnect the data from your computer before starting cloning.
*Flexible Storage Expansion: The dual-bay hard drive enclosure supports up to 8TB, which equates to two 4TB SSDs. Equipped with a C to C power cord, USB-A adapter and OTG support, it can help you connect your mobile phones, tablets, laptops, desktop computers and other devices to expand your storage capacity.
*High Speed Transmission: USB-C supports a maximum transmission speed of 20Gbps /10Gbps. High-speed reading and writing are 935MB/s and 729MB/s respectively. Just plug and play and you can quickly transfer large-capacity tasks such as pictures, videos, files, games, etc.
*Wide Compatibility: The dual-bay supports SSDs of various sizes, such as 2280/2260/2242/2230 and applicable interfaces, M and B+M keys. But it is not suitable for SSD with mSATA interface. It also comes with two silicone buckles and two thermally conductive silicone pads to secure the SSD.
*Easy to Use: Metal sliding cover design, easy to disassemble and assemble, no tools required, plug and play, no need to download any driver. If you encounter any installation or usage problems, please contact our customer service staff to protect your rights.
Product Features:
WAVLINK Dual M.2 SSD Enclosure with Offline Clone
The M.2 dual-bay SSD enclosure is a convenient and fast storage solution designed to provide users with an efficient data migration and backup experience. The conversion key can help you quickly switch the cloning direction; the transfer rate is up to 20Gbps /10Gbps, you can use it regularly to back up all system disk or game disk data to another hard drive. Or you often move a system hard drive between different computers. The one-click offline cloning function provides users with a convenient way to copy data, which saves users valuable time and is especially suitable for scenarios that require frequent backup or upgrade of storage devices.
One-Button Offline Clone
It supports one-click offline cloning, and switching the cloning direction keys eliminates the trouble of disassembling and installing the target disk and source disk, but the capacity of target disk must be larger than the source disk.
Detail & Design
Metal shell, sliding cover design, no tools required, easy to disassemble and install; equipped with ventilation holes on the side for heat dissipation.
Compact & Portable
Length, width and height - 118.1 * 73.25 * 15.78mm, weight 132.7g, lightweight and compact, easy to store and take out for office use.
LED Indicator
The blue progress indicator light only lights up when the cloning task is in progress; the blue work indicator light only lights up when data is read.
How to Install the SSD?
① Push the cover in the direction of the arrow to open the top lid of the Enclosure.
② Insert the SSDs into the slots.
③ Tear off the protective films on both sides of the two thermal silicone pads, and stick them on two SSDs respectively.
④ Reassemble the top lid in the direction of the arrow.
⑤ Connect the USB-C cable to the Host.
⑥ Finally, plug it in and it’s ready to use.
Specification:
1.Model: ST347/ST348
2.Ports: 1 x DC IN Port, 1 x USB-C Port
3.Button: 1 x Offline Cloning Key, 1 x Toggle Switch
4.Status LED(Blue): 1 x NVMe, 1 x SATA
5.Offline Cloning Indicator(Blue): 25%, 50%, 75%, 100%
6.Power Adapter: DC 5V/4A
7.Unit Dimensions: 118.1 x 73.25 x 15.78mm /4.65 x 2.88 x 0.62in (L x W x H)
Compatibility
Systems: Microsoft Windows 10/11; Mac 10 or later; Chrome OS; Linux; Android; Harmony OS; iPad OS; iOS.
Devices: Computers with USB-C or A ports that support data transmission; mobile phones and tablets with USB-C ports.
SSD: Support M and B+M key PCIe NVMe in sizes of 2230/2242/2260/2280; not support mSATA SSDs.
What’s in the Package?
- 1 x Dual M.2 SSD Enclosure with Offline Clone
- 1 x USB-C to USB-C with USB-A Cable
- 2 x Thermally Conductive Silicone Pad
- 1 x DC 5V/4A Power Adapter
- 2 x Silicone Buckles
- 1 x Quick Start Guide
Note:
- Supports offerirectional cloning, cloning data offline from NVMe to SATA or SATA to NVMe through toggle switch.
- Supports OTG mobile phones to read and write USB peripherals and SSD.
- Please start cloning after disconnecting the data connection from the computer.
- The target disk capacity must be larger than the source disk. Please check your SSD before installation.
- Compatible with NVMe and SATA, not suitable for mSATA interface. Please confirm your hard drive type before purchasing.
10Gbps M.2 SSD Single-Bay Hard Drives EnclosureWavlink Aluminum M.2 NVMe SSD Enclosure, USB 3.1 Gen 2 (10 Gbps) to NVMe PCI-E M.2 SSD Case Support UASP for NVMe SSD Size 2230/2242/2260/2280 (up to 2TB) with Type-C OTG converter,Silicone case and Pouch•【10Gbps Super Speed】: Wavlink M.2 NVMe SSD external case adopts Realtek RTL 9210 control chip and latest USB 3.1 Gen 2 Type-C interface. Support UASP acceleration protocol and support theoretical data transmission speed of up to 10Gbps. When using high-performance NVMe media, the read/write performance can reach 1000 Mbytes/sec. Includs USB-C to USB-A cable and a USB-A to USB-C OTG convertor, works with USB-C/USB-A hosts.
•【Applicable SSD Hard Drive】: M.2 NVMe SSDs (SSD not included). USB-C Gen 2 or Thunderbolt 3 hosts up to 10Gbps, USB-C 3.1 Gen 1 and USB 3.0 systems capable of up to 5Gbps. Compatible with 2230/2242/2260/2280 NVMe SSD. Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 PCIe devices.
•【Support System】: Portable, Plug & Play, no Driver needed and compatible with Windows, Mac OSX, linux and smartphone with OTG functionality. SSD file system must be supported on host operating system to be accessible.
•【Reliable & Durable】: Made of premium aluminium alloy with ventilation holes, Wavlink enclosure does better at heat dissipation, no cooling fan is needed for high-speed working. Built with short-circuit, over-current and over-heat protection, it ensures safety to your NVMe SSD and valuable files. The LED indicator lets you learn the working status easily.
The included pouch can be used to neatly store the SSD enclosure (in the double protection of our silicone case), the data cable and the disassembled gadgets, so that they can steadily keep in good condition and be in order when needed to be used.
•【What you get】: 1x USB3.1 Gen.2 NVMe SSD Enclosure, USB-C to USB-A (10Gbps) Cable 500mm, 1x USB-A to USB-C Adapter, 1x pouch, 1x Silicone protective case, 1x Screw driver, 1x User Manual. 12-month worry free warranty (extra 6 months for registered members) and lifelong friendly technical support.
Wavlink NVMe M.2 enclosure -- Instant Access to external Files!
Wavlink M.2 USB-C Enclosure is dedicated to bridge your host devices and external storgae, provide a solid house to M-Key or M+B Key NVMe PCIe SSD and turn it into a portable USB 3.1 external drive for maximum utilization. Plug and play and no driver needed, maximum 10Gbps data transmission, Ideal for cloning files, backing up data, reusing old M.2 SSD, and expanding storage space.
Main Features
•Plug & Play and Hot-Swapping. Easy installation & no driver required. No additional power required.
•Support all 2230 2242 2260 2280 PCIe NVMe M.2 SSD of M-Key or M+B Key.
•UASP supported, USB-C Gen 2 or Thunderbolt 3 hosts up to 10Gbps, USB-C Gen 1 and USB 3.0 systems capable of up to 5Gbps.
•Aluminum alloy case with ventilation holes, which is better for heat dissipation, no worry about over-heat.
•Built with short-circuit, over-current and multi-protection to ensure safety for your SSD and valuable data.
Warm Reminder:
1. Your computer won't recognize the actual SSD's brand with this NVME to USB Adapter, so for Samsung SSD that you couldn't use the Samsung disk cloning software
2. For the brand new SSD drive, it may not find the drive, because the brand new SSD drive should be formatted before first time using. And also need to make the SSD drive partition.
10Gbp Super Speed & UASP Supported
This M.2 SSD enclosure features the latest USB 3.1 Gen 2 and PCIe GEN 3, which supports amazing data transmission rate up to 10Gbp. You can transfer 1GB files in 1 second.
The USB 3.1 interface incorporates with UASP (USB Attached SCSI Protocol) that enables it to perform a 70% faster read speed and 40% faster write speed than conventional USB 3.1 when used with a UASP-enabled host computer.
Designed for NVMe PCIe M.2 SSD
The NVMe M.2 Enclosure is specially designed for M-Key and M+B Key PCIe NVMe M.2 SSD of 2230/2242/2260/2280 and up to 2TB, Does not support NGFF SATA based B-Key and M&B-Key M.2 SSD, M.2 PCIe AHCI SSD, mSATA SSD.
Excellent Heat Dissipation
Made of premium aluminum case with ventilation holes that does better at heat dissipation, no need to worry about overheat.
OTG functionality, Super Convenience
Back up pictures and watch movies at anytime and anywhere.
Inteligent LED Indicator
With blue LED indicator, you can learn of the working status of this M2 Case easily.
Compact and Durable
Wavlink M.2 NVMe enclosure with a dimension of 0.39x1.14x4.33 in, the case is compact and lightweight to take for daily working needs. The silicone case provides an extra protection, making it robust and durable, no need to worry about accidental falling and crashing.
Universal Compatiblity
Compatible with Windows, Mac OS, Linux, Chrome OS, PS4, PS3, Xbox, router, OTG Phones. Enable your M.2 SSD to be a mobile database between your devices.
