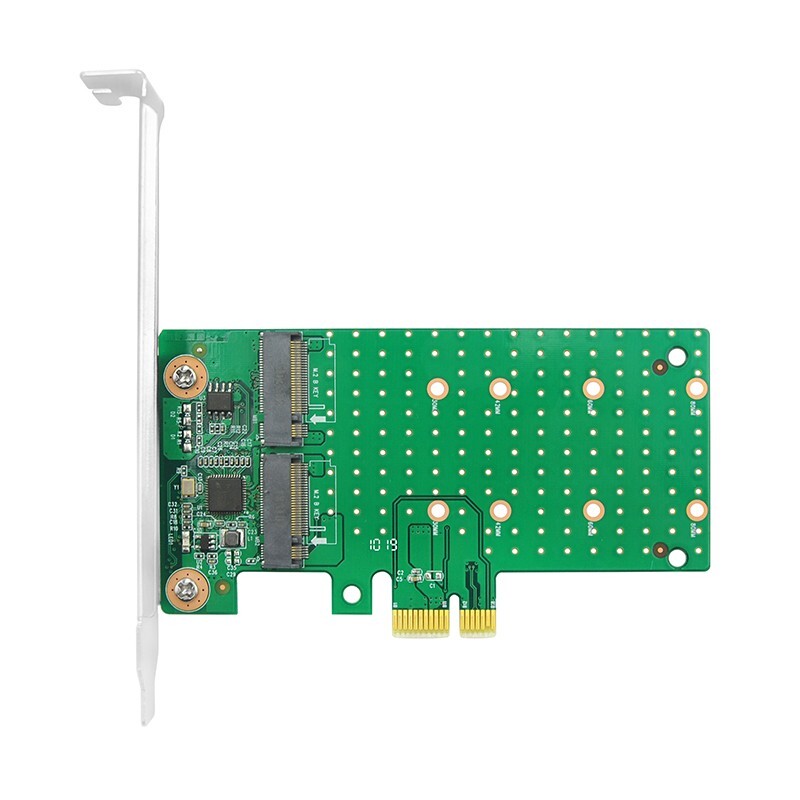

Product Name:Dual PCIe x1 to M.2 SATA Controller CardChipset:ASMedia 1061Interface Type: 2*M.2 ConnectorsSupport Equipment: 2*M.2 SSDHost Bus Type: PCIe 2.0 x1
Product Description
ST9661-2IT is dual SATA III (6 Gbps) to PCI Express Card. ST9661-2IT is Serial ATA Advantage HCI controller, bridges PCI Express to two ports of Serial ATA 6Gbps, enables Serial ATA PHY up to 6Gbps high speed interface, supports SRIS (Separate Reference Clock With Independent Spread) function, complies with Serial ATA Revision 3.0 Compliant with Serial ATA Specification 3.0.
• Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
• Single virtual channel
• SSC support
• Serial ATA AHCI Spec. Rev.1.3
• Supports two M.2 SATA ports.
• ECRC and Advanced Error Reporting capability
• Support Native Command Queuing (NCQ).
• Support Port Multiplier
• Support Gen 1m and 2m SATA of Device
2 Internal
I/O Controller
ASMedia1061T
Bus Type
PCI Express 2.0 x1
Compatible Device Type
2 M.2 SATA SSDs
Interface
2 M.2 B Key
CONNECTOR(S)
Device Connector
2*M.2 SATA Connectors
Host Connector
PCIe 2.0 x1
ENVIRONMENTAL
Humidity
0% – 90%
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 65°C (14°F to 149°F)
PHYSICAL Weight
46g
WARRANTY INFORMATION
PACKAGING INFORMATION
Shipping (Package)Weight
3.0oz [86 g]
WHAT'S IN THE BOX
Included in Package
1 - PCI Express to M.2 SATA adapter
1 - full-height bracket (installed)
1 - low-profile bracket
2 - screws and nuts
