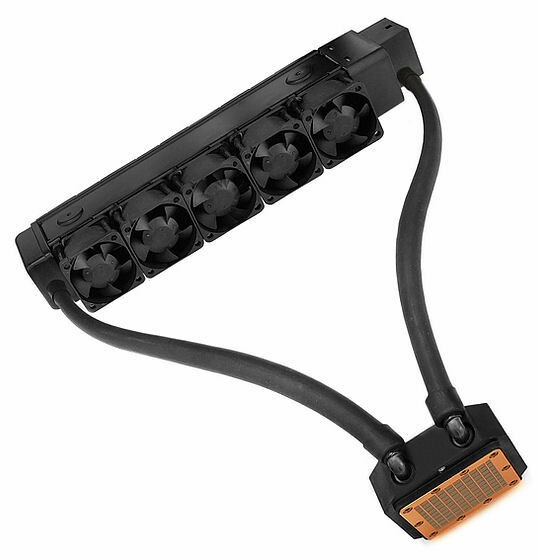

All-in-one Liquid Cooler for 1U Server and up, Recommend for Intel Socket LGA115x, LGA2011/2066 Square ILM Mounting , AMD Socket AM2, AM3, AM4, FM1 and FM2, Five 40X40 mm PWM fans with Maximum 12000rpm Fan Speed, Fully Support CPU Overclocking 250 Watts Heat Dissipation.
CPU Support
Intel & AMD
CPU Socket
LGA 115X, LGA1700, LGA2011/2066 Square ILM
AM2/AM3/AM4/FM1/FM2
Solution
1U Server
Fan Dimension
40 x 40 x 28 mm
Speed
At Duty Cycle 0~20%: 3300±10% RPMAt Duty Cycle 50%: 5700±10% RPMAt Duty Cycle 100%: 12000±10% RPM
Bearing
2 Ball Bearing
Rated Voltage
12V
Power
At Duty Cycle 0~ 20%: 0.72 WAt Duty Cycle 50%: 1.56 WAt Duty Cycle 100%: 8.40 W
Noise Level
At Duty Cycle 0~ 20%: 25.93 dBAAt Duty Cycle 50%: 37.80 dBAAt Duty Cycle 100%: 53.96 dBA
Air Flow
At Duty Cycle 0~ 20%: 5.920 CFMAt Duty Cycle 50%: 10.225 CFMAt Duty Cycle 100%: 21.526 CFM
Air Pressure
At Duty Cycle 0~ 20%: 1.733 mm-H2OAt Duty Cycle 50%: 5.170 mm-H2OAt Duty Cycle 100%: 22.912 mm-H2O
Lead Wire Pin Out
Pin1- (-)Pin2- (+)Pin3- (Tachometer/Signal output)Pin4- (PWM)
