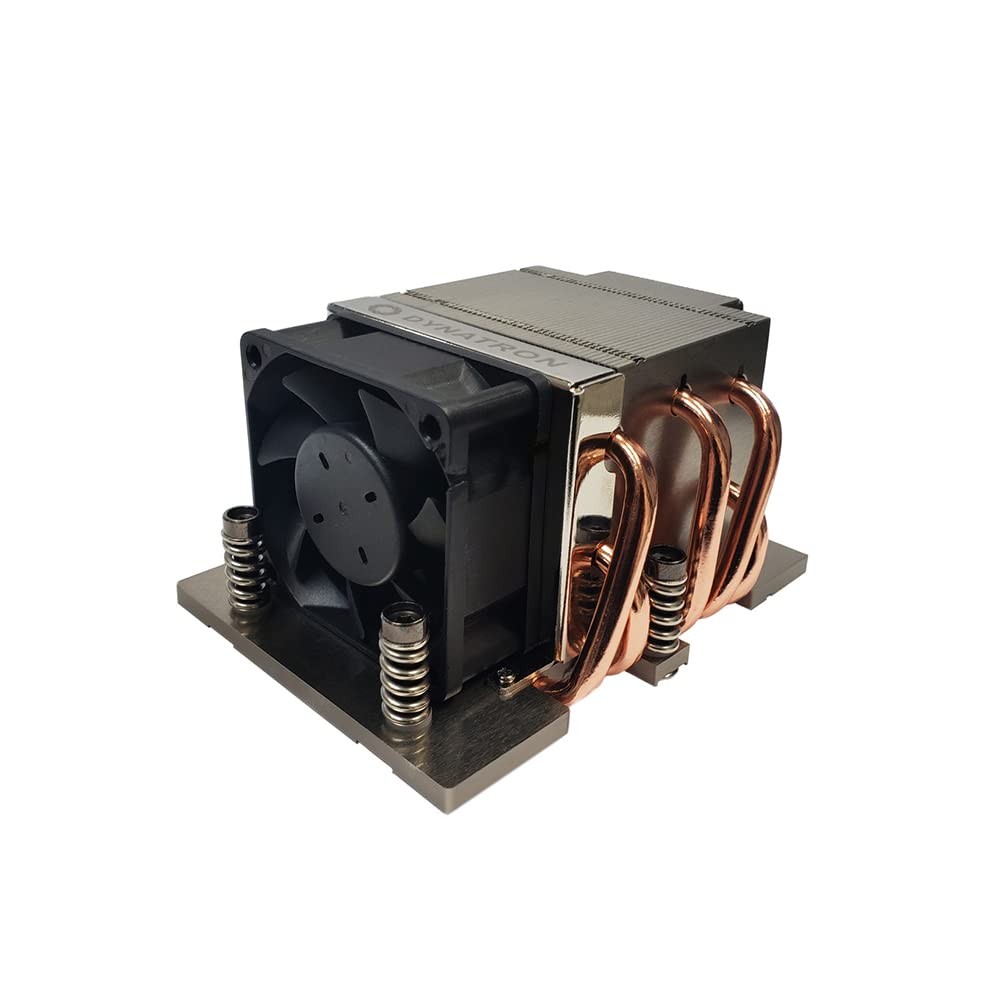

Dynatron AMD Genoa Copper Heatsink and Active Cooler | SP5 J10
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Dynatron AMD Genoa Copper Heatsink and Active Cooler | SP5 J10
Price: US $54.99
DYNATRON J10

The Dynatron J10 is a powerful 2U server and up CPU cooler engineered for AMD SP5 processors, delivering excellent thermal performance for high-demand server environments. The J10 provides efficient heat dissipation, ensuring stable CPU temperatures during intensive workloads. Designed for 2U and larger servers, the Dynatron J10 is perfect for data centers, cloud computing, and other performance-critical environments that require consistent and reliable cooling.

  • Recommend for AMD CPU as AMD Genoa Processor Family, Socket SP5
  • Active Cooler for 2U Server & Up
Overall Specification
  • Material: 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack
  • Fan: 6025 Side-blow fan with PWM Function
  • Mounting Method: Captive Screw Set, Per AMD Design Guide
  • Thermal Grease: SHIT-ETSU 7762 or Equivalent
  • TDP: Support CPU Power up to 320 Watts at 40℃ ambient temperature
Cooling Fan Specification
  • Bearing Double Ball
  • Rated Voltage 12V
Rated Speed
  • At Duty Cycle 0~20%: 2300± 200 RPM
  • At Duty Cycle 50%: 5400± 10% RPM
  • At Duty Cycle 100%: 11000±10% RPM
Input Power
  • At Duty Cycle 0~20%: 0.84 W
  • At Duty Cycle 50%: 2.76 W
  • At Duty Cycle 100%: 18.0 W
Maximum Airflow
  • At Duty Cycle 0~20%: 11.91 CFM
  • At Duty Cycle 50%: 28.38 CFM
  • At Duty Cycle 100%: 58.31 CFM
Rated Static Pressure
  • At Duty Cycle 0~20%: 1.48 mm-H2O
  • At Duty Cycle 50%: 7.54 mm-H2O
  • At Duty Cycle 100%: 28.8 mm-H2O
Acoustical Noise
  • At Duty Cycle 0~20%: 25.8 dBA
  • At Duty Cycle 50%: 44.4 dBA
  • At Duty Cycle 100%: 59.8 dBA
Lead Wire Pin Out
  • Pin#1- Black(-)
  • Pin#2- Yellow(+)
  • Pin#3- Green(Tachometer/ Signal Output)
  • Pin#4- Blue (PWM)
