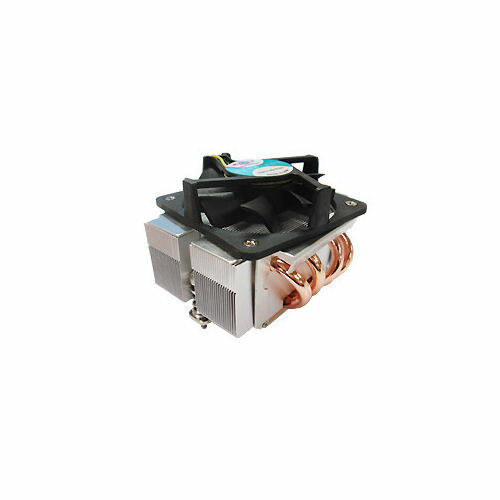

Dynatron Intel® CPU Socket 1567 Nehalem-EX Xeon® 120W 1U ACTIVE Cooler, Q3
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Dynatron Intel® CPU Socket 1567 Nehalem-EX Xeon® 120W 1U ACTIVE Cooler, Q3
Price: US $49.99
CPU Socket 1567CPU Support Intel® Nehalem-EX Xeon® Processor 7500 Series up to 130 WattsSolution 2U&Up ServerOverall Dimension 94.0 x 90.0 x 66.0 mmWeight 440 ± 5gMaterial Copper Base & Aluminum Fins with Heatpipes embeddedFan Dimension 77 x 77 x 20 mmSpeed At Duty Cycle 0~20%: 1000 RPM
At Duty Cycle 50%: 2600 RPM
At Duty Cycle 100%: 5500 RPMBearing 2 Ball BearingRated Voltage 12Power At Duty Cycle 0~20%: 0.54 W
At Duty Cycle 50%: 1.68 W
At Duty Cycle 100%: 9.0 WAir Flow At Duty Cycle 0~20%: 8.36 CFM
At Duty Cycle 50%: 25.5 CFM
At Duty Cycle 100%: 53.9 CFMNoise Level At Duty Cycle 0~20%: 20.6 dBA
At Duty Cycle 50%: 35.1 dBA
At Duty Cycle 100%: 51.4 dBAAir Pressure -Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)Thermal Resistance & Noise Level VS. Cooling Fan Speed Note 1. Thermal Grease Pre-Printed with GE-Toshiba TIG830SP
2. RoHS Compliance
3. Backplate is not included.
