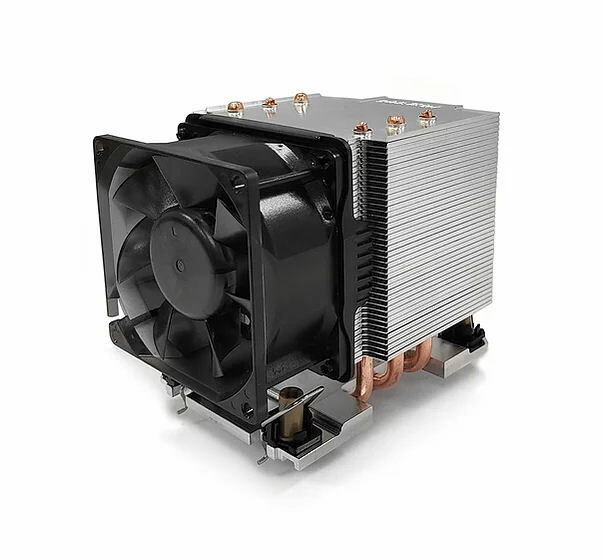

Recommend for Intel® Whitley Platform Ice Lake and Cooper Lake Server Processor, LGA 4189 sockets, Aluminum Stacked Fins with Heat Pipes directly contact CPU, Active Cooler for 3U Server and up, Support 250 Watts CPU Power Heat Dissipation.CPU Support Intel
CPU Socket FCLGA 4189-4/5(Socket P4/P5 or P+)
Solution 3U Server and Up
Dimensions 113 x 78 x 110 mm
Weight 600 g
Material Aluminum Stacked-fin with Heat Pipes directly contact CPU
Fan Dimension 80 x 38 mm
Speed At Duty Cycle 0~20%: 800 ± 200 RPMAt Duty Cycle 50%: 1500 ± 10% RPMAt Duty Cycle 100%: 3000 ± 10% RPM
Rated Voltage 12V
Bearing 2 Ball Bearing
Power At Duty Cycle 0~20%: 0.48 WAt Duty Cycle 50%: 0.84 WAt Duty Cycle 100%: 2.88 W
Air Flow At Duty Cycle 0~20%: 13.67 CFMAt Duty Cycle 50%: 25.63 CFMAt Duty Cycle 100%: 51.26 CFM
Noise Level At Duty Cycle 0~20%: 13.45 dBAAt Duty Cycle 50%: 27.1 dBAAt Duty Cycle 100%: 42.15 dBA
Air Pressure At Duty Cycle 0~20%: 0.402 mm-H2OAt Duty Cycle 50%: 1.41 mm-H2OAt Duty Cycle 100%: 5.66 mm-H2O
Lead Wire Pin Out Pin#1-Black(-)Pin#2- Yellow(+)Pin#3- Green(Tachometer/ Signal Output)Pin#4- Blue (PWM)
Thermal Grease Shin-Etsu 7762 Pre-printed
