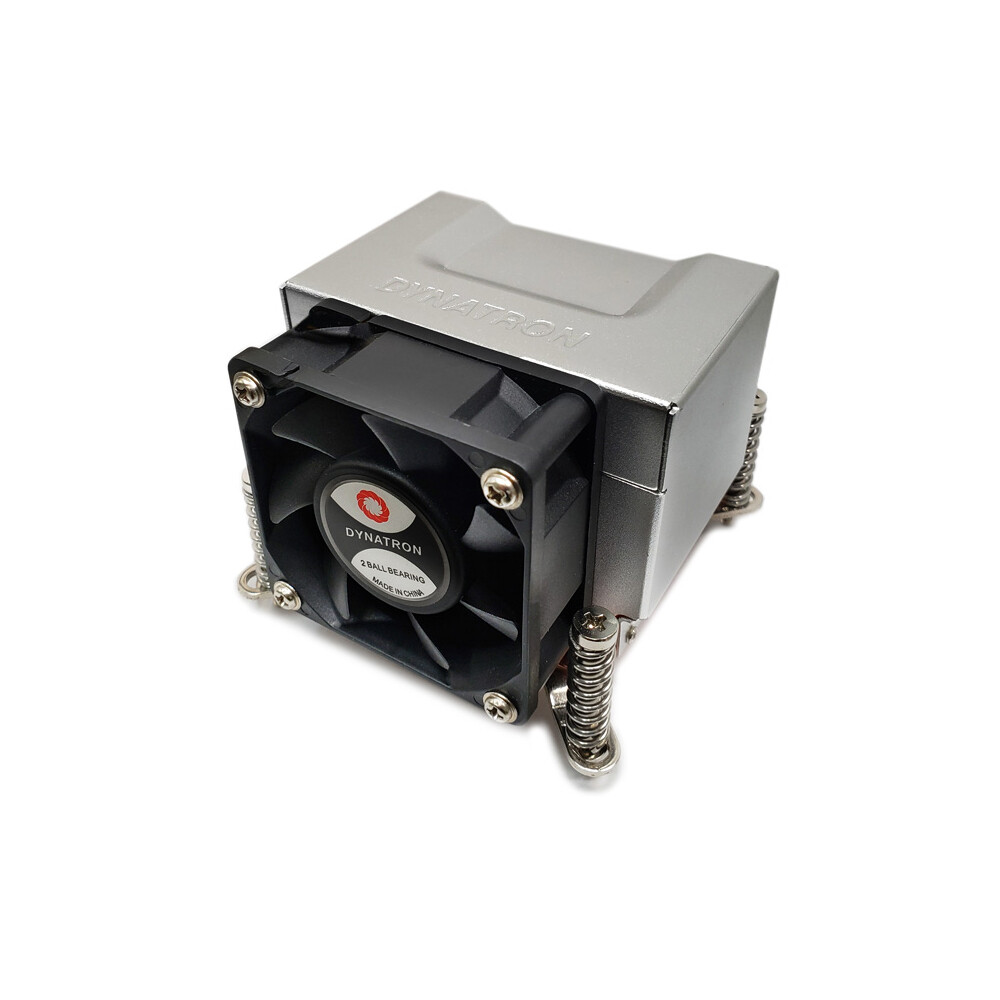

Dynatron Q5 Alder Lake-S Socket LGA1700 CPU Heatsink and PWM Fan, 125W TDP
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Dynatron Q5 Alder Lake-S Socket LGA1700 CPU Heatsink and PWM Fan, 125W TDP
Price: US $59.95
General Description

Recommend for Intel Alder Lake S Processor, Socket LGA 1700. 60 x 60 x 25 mm Fan with PWM function, Copper Base & Aluminum Fins with Heatpipes Embedded. Active Cooler for 2U Server and Up. Supports CPU Power up to 125 Watts Heat Dissipation.


Key Features
  • Supports Intel Alder Lake-S Socket LGA 1700
  • Copper Base, Aluminum Fins with Heatpipes
  • Supports up to 125W TDP
  • Pre-applied Shin-Etsu 7762 Thermal Grease
  • Dimensions: 3.6" x 3.3" x 2.6"
Technical SpecificationsManufacturer DynatronProduct ID Q5CPU Support Supports Intel Alder Lake-S
Socket LGA 1700
Up to 125W TDP
Connection 4 Pin (PWM)Voltage 12VSpeedAt Duty Cycle 20%: 1600 RPM
At Duty Cycle 50%: 4000 RPM
At Duty Cycle 100%: 8000 RPMPerformance At Duty Cycle 20%: 9.28 CFM
At Duty Cycle 50%: 23.21 CFM
At Duty Cycle 100%: 46.41 CFMVolume At Duty Cycle 20%: 18 dBA
At Duty Cycle 50%: 37.89 dBA
At Duty Cycle 100%: 52.94 dBADimensions 90.7 x 85.0 x 65.1mm
3.6" x 3.3" x 2.6" (in inches, approximate)
Fan Dimensions60 x 60 x 25 mm
2.36" x2.36" x 0.98" (in inches)Weight515.2 g
1.14 lbs Features Shin-Etsu 7762 Thermal Grease
