CPU SUPPORT

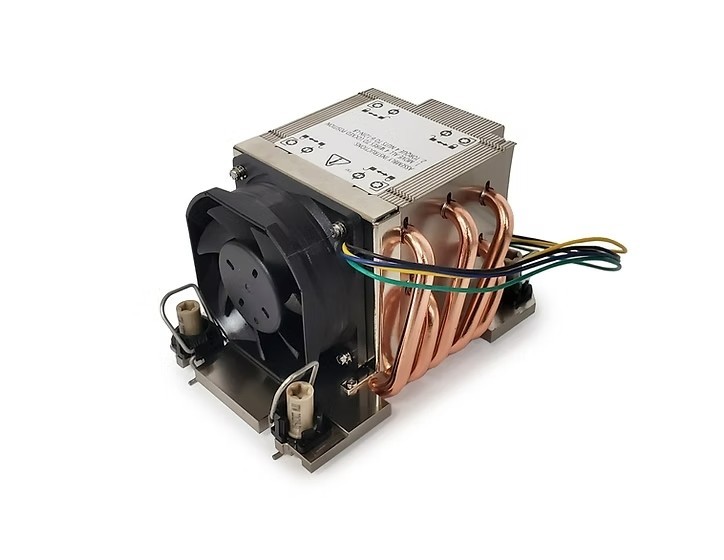

Intel® Sapphire Rapids Processor

CPU SOCKET

Intel Socket |

FCLGA 4677

APPLICATION
2U

MAXIMUM POWER*

550 W

* At an ambient temperature of 20°C, it is estimated from the thermal resistance value of the radiator.

Note:

Dynatron S2, S3, S4, S5, S5R1, S6, and S7 each come with the E1A and E1B Package Carrier.

CPU Support

Intel

CPU Socket

FCLGA 4677

Screw Type

#8-32

Installation Torque

8 in-lb

Solution

2U Server and Up

Dimensions

118 x 82 x 67 mm

Weight

470 g

Material

5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack

Fan Dimension

60 x 60 x 25 mm

Speed

At Duty Cycle 0~20%: 2300± 200 RPM

At Duty Cycle 50%: 5400± 10% RPM

At Duty Cycle 100%: 11000±10% RPM

Rated Voltage

12V

Bearing

Double Ball

Power

At Duty Cycle 0~20%: 0.84 W

At Duty Cycle 50%: 2.76 W

At Duty Cycle 100%: 18.0 W

Air Flow

At Duty Cycle 0~20%: 11.91 CFM

At Duty Cycle 50%: 28.38 CFM

At Duty Cycle 100%: 58.31 CFM

Noise Level

At Duty Cycle 0~20%: 25.8 dBA

At Duty Cycle 50%: 44.4 dBA

At Duty Cycle 100%: 59.8 dBA

Air Pressure

At Duty Cycle 0~20%: 1.48 mm-H2O

At Duty Cycle 50%: 7.54 mm-H2O

At Duty Cycle 100%: 28.8 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu 7762 or Equivalent

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
