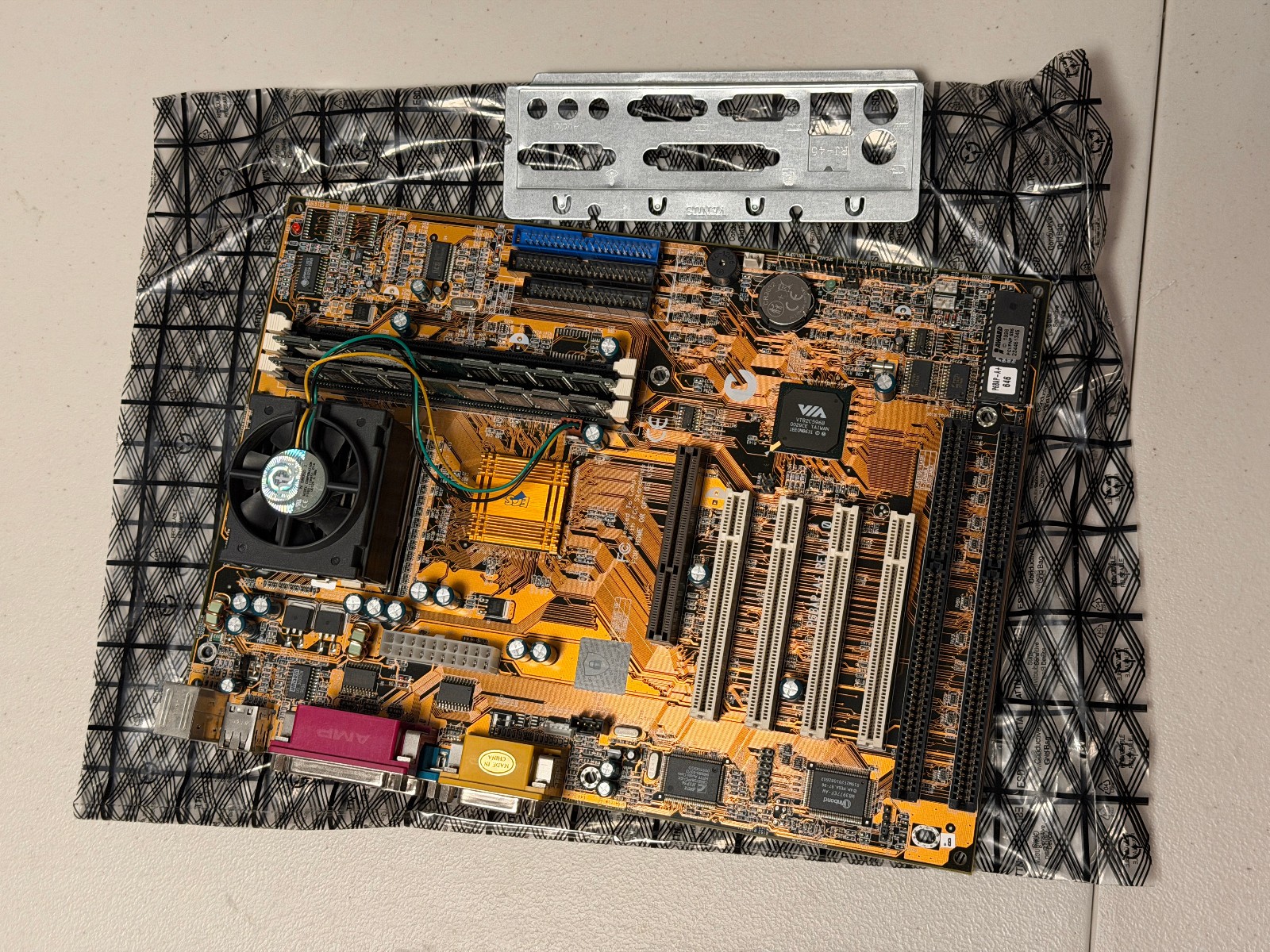

ECS P6BAP-A+ Rev 1.0 Socket 370 Vintage ATX Motherboard w/ Celeron 600MHz Tested For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
I'm selling a Motherboard, CPU, and Ram combo that is tested working. This motherboard lacks an vga output so you will need a video card to use it. I tested it using a Voodoo 5 5500 that I have in another listing. The processor is running at 600mhz with 2 sticks of 32mb of ram running at 66mhz giving you a total of 64mb of ram. There is an additional slot open for more ram and the processor supports more but I was unable to get clear information on the total max supported. This motherboard is also known as MatsonicMS-7117C REV 2.x running the chip set VIA VT82C693A. Expansion slots: 2x16-bit ISA 1x3.3V AGP 4x32-bit PCI I/O ports: 1x3.5mm Audio Combo 1xFloppy interface 1xGameport 2xIDE interface 1xIrDA 1xPS/2 keyboard 1xPS/2 mouse 1xParallel 1xS/PDIF 1xSB_Link 2xSerial 2xUSB 1.x
