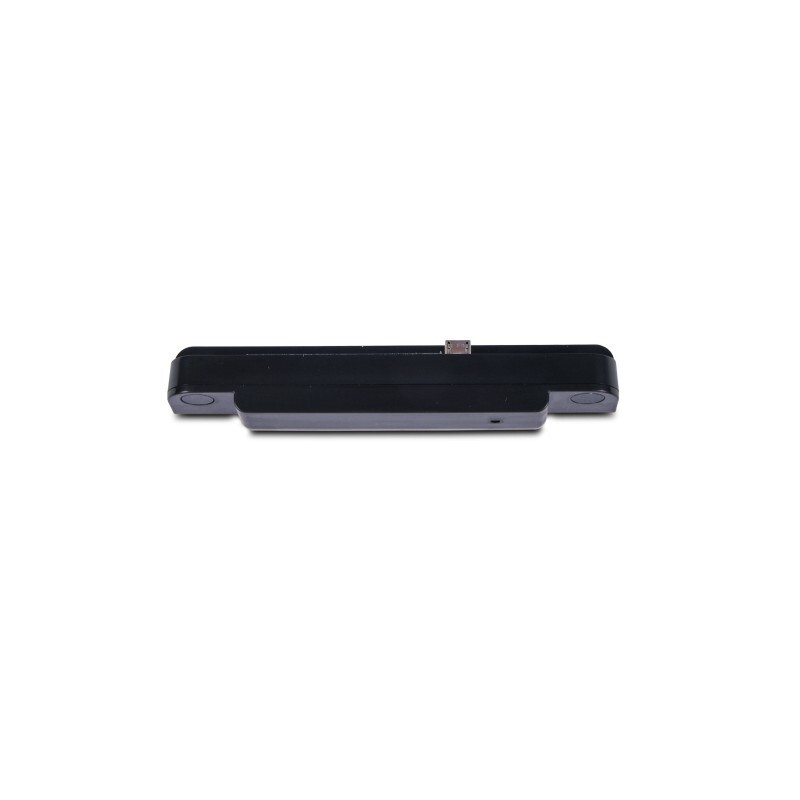

ELO E926356 Barcode Scanner, 2D

for I-Series/X Series/-02 Series ELO Monitors**Brand New**

Improve self-service and price-checker applications when you couple the 2D Barcode scanner with an Elo touchscreen. Change the way your customers interact in-store by deploying a new generation of price-checkers that can run apps and websites, allowing companies to utilize the product for brand messaging and endless aisle applications while maintaining the main purpose as a price checking solution. When coupling the 2D barcode scanner with Elo’s I-Series for Android and EloView®, content and device management can be done with ease. EloView is a ground breaking platform from Elo that allows you to deploy content for kiosk based applications to multiple locations remotely.

POS and kiosk management can be even easier with EloView. A revolutionary interactive platform, EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView has got you covered. EloView software provides device setup, remote management, alerts, attract loops, and the ability to securely upgrade the operating system, applications, and content.

SPECIFICATIONS

• Part Number(s)

  E926356

  Enclosure Color

  Black

  Compatibility

  I-Series for Android (2.0, 3.0)I-Series for Windows (2.0)EloPOSTouchscreen Monitors - 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702LTouchscreen Signage - 3202L, 3203L, 4202L, 4602L, 5502L, 5553L, 6553L

  Supported Operating Systems

  Windows 7Windows 8Windows 10Android 4.0 and above

  Barcode Engine

  N3680 series compact decoded 2D barcode engine

  Standard Configuration

  VCP Mode (USB Serial) with Presentation Mode Enabled

  Supported Terminal Modes

  HIDKeyboardUSB Serial (COM driver required)

  Reader Type

  2D barcode reader

  Sensor

  CMOS Sensor

  Resolution

  640 x 480

  Illumination & Aiming

  White LED illuminationRed LED dot aimer

  Ideal Scan Distance

  60 – 152 mm / 6 -15.2 cm (depends on barcode quality, size and environment conditions)

  Supported Symbologies

  Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data bar
  2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
  2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible(Han Xin) code
  Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet

  Viewing Angle

  Horizontal: 37.8° / Vertical: 28.8°

  Beeper Output

  85 db min @ 10cm

  Ambient Light

  0-100,000 lux

  Typical Current Draw

  220 mA while scanning65 mA at Idle2.5 mA while on standby

  Input Voltage

  5V

  Weight (Unpackaged)

  0.06 lbs / 0.03 kg

  Weight (Packaged)

  0.36 lbs / 0.16 kg

  Dimensions

  0.63'' x 4.68'' x 1.15'' / 16mm x 118.9mm x 29.1mm

  Shipping Box Dimensions

  5.51'' x 8.86'' x 2.76'' / 140mm x 225mm x 70mm

  What's in the Box

  2D Scanner2 Mounting screws2 Mylar screw coversQIG

**Power supplies, cords, cables, and other basic accessories are NOT included unless stated otherwise in the description.**
