- 16 Megapixel USB camera High Definition 4656*3496 resolution webcam with 1/2.8 inch IMX 298 color CMOS sensor is able to ensure your videos are always sharp and crystal clear.
- With Wide Angle 118degree no distortion Lens,wider angle of view,super small and mini size for lightburn laser engraver, compact lightburn laser camera for all kinds of machine vision.
- Just plug the USB cable into your PC’s USB port, plug and play, there is no need to download or install complicated driving software,OTG Support, can be connected to tablet, mobile phone, mini PC.
- High speed USB 2.0 interface USB webcam widely works with WinXP/Vista/Windows 7/8, Windows 10 Linux with UVC. Webcam for MAC, PC, desktop computer, laptop USB.
- Application：Suitable for document, passport, receipt, bar code,QR code scanning,highly recommended for a home surveillance system, monitoring 3D Printer,altimeter,3D (H120 No distion Lens, HFOV 118degree)

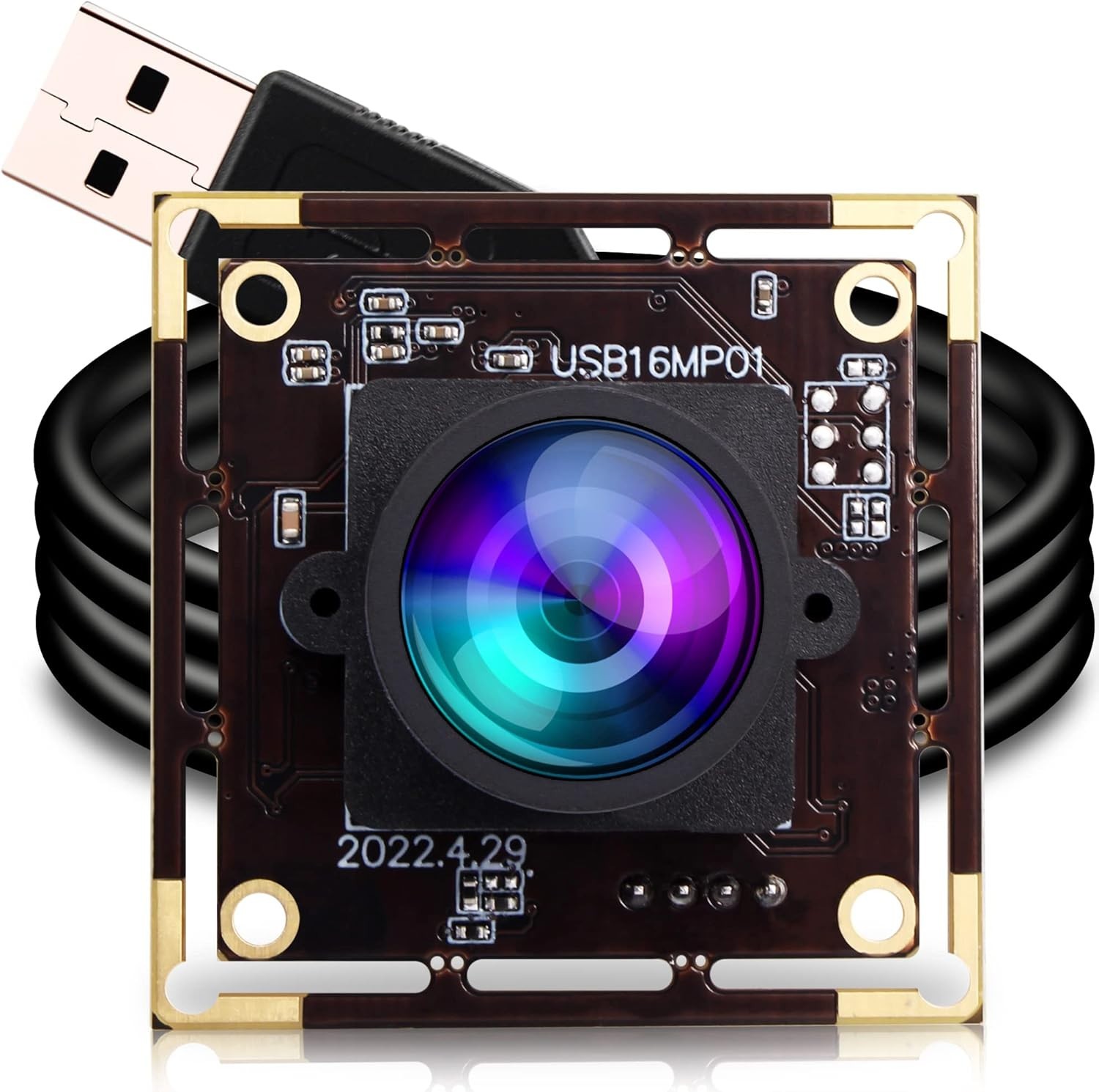

Based on 1/2.8" 16MP IMX298 image sensor, Fixed focus, No distortion lens, UVC compliant USB 2.0 cameras. This is a mini webcam module, Max resolution 16 Mega pixel 4656 x 3496 output, with 38*38/32*32mm mini board size. No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.Manual control the focusing process to capture the still object,shots the imaging and video you want.Ultra HD resolution meets your request for higher quality video still pictures resolution.
FOR RASPBERRY PI:- It can work with already preinstalled camera software instead of builtin camera.
- Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR PC: - Support windows,linux,mac,Android,raspberry Pi
- Very easy to use,UVC compliant,free driver,just plug in and go.
Top Features:- 16MP High Resolution 4656X3496 USB Camera Module
- High quality 1/2.8 inch IMX 298 Color CMOS image Sensor
- High speed USB 2.0 interface Camera Module
- With Wide Angle 120degree No distortion Lens,HFOV about 118degree.
- USB powered Low power consumption
- Small outline for embedded application
- Free Driver, Plug and Play,UVC Compliant for use in OS Windows, Linux, Android, Mac
- OTG Support, Can be connected to tablet, mobilephone, mini PC
- Suitable for document, passport, receipt, Code scanning
Mini 38mmx38mm camera board can be installed in most hidden and narrow position:Applications: - Bar Code QR Code Scan
- Document, Passport, Receipt Identification Scanning
- 3D Printer,3D Scanner
- Home Surveillance System
- Robotic Machine Vision
- Baby Camera
- Dashcam
Product information
Additional detailsSensor TypeCMOSConnectivity TechnologyUSBColorH120 No Distortion LensFeaturesLightweight, Mini size, high definition 16mp, imx298 image sensor, wide angle 120degree no distortion lensWater Resistance LevelNot Water ResistantHas Image StabilizationYesImage stabilizationOpticalForm Factorcompact mini use camera moduleOperating SystemAndroid, Linux, MAC, Raspberry Pi, WinXP/Vista/Windows 7/8, Windows 10Item Dimensions D x W x H2.17"D x 3.54"W x 2.56"HLensMaximum Focal Length1.8 MillimetersMaximum Aperture2 fMinimum Focal Length1.8 MillimetersLens TypeWide Angle no distortion lensFocus TypeFixed FocusDisplayScreen Size2.8 InchesViewing Angle118 DegreesDisplay Resolution Maximum4656X3496 Pixels
|
|
