Features:
*High Speed1080PHD USB Camera
*Equiped withwide angle fisheye lensFOV 180Degree
*Can drive30fps@1080Pand60fps@720p, 120fps at 480P
*CMOS OV2710sensor for high quality image and low power consumption.
*High speedUSB 2.0 interfacefor high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use inLinux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

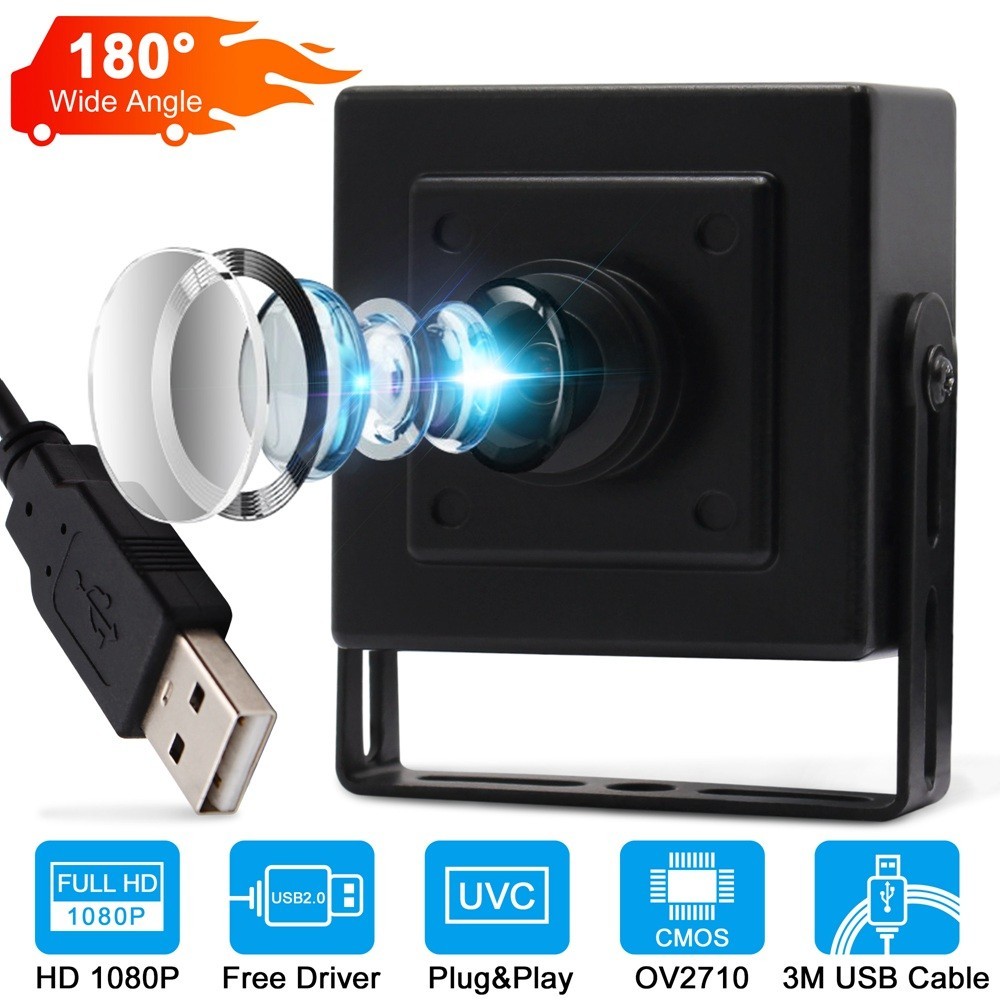

General DescriptionThe HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made byOmniVision, one of the world leaders in this field of electronics.The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Specification:Optional models
ELP-USBFHD01M-BL180
Sensor
1/3" CMOS OV2710
Lens size
200W, 2.0megapixel, 1920(H)x1080(V)pixels
Max. Resolution
1920X1080
Picture format
MJPEG
USB Protocal
USB2.0 HS/FS, USB1.1 FS
Support free driver
USB Video Class(UVC)1.1
Auto exposure AEC
Support
Auto white blance AEB
Support
Frame rate
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps
320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps
Adjustable parameters
Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision
optional, can choose IR board
view angle
180 degree
voltage
DC 5V
current
150mA
work temperature
DEGREES(-20~70)
Size
32x32mm/38*38
Support OS
WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
*Equipped with wide angle view 180 degree fisheye lens
*Can drive 30fps@1080P and 60fps@720p 120fps @480P
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
