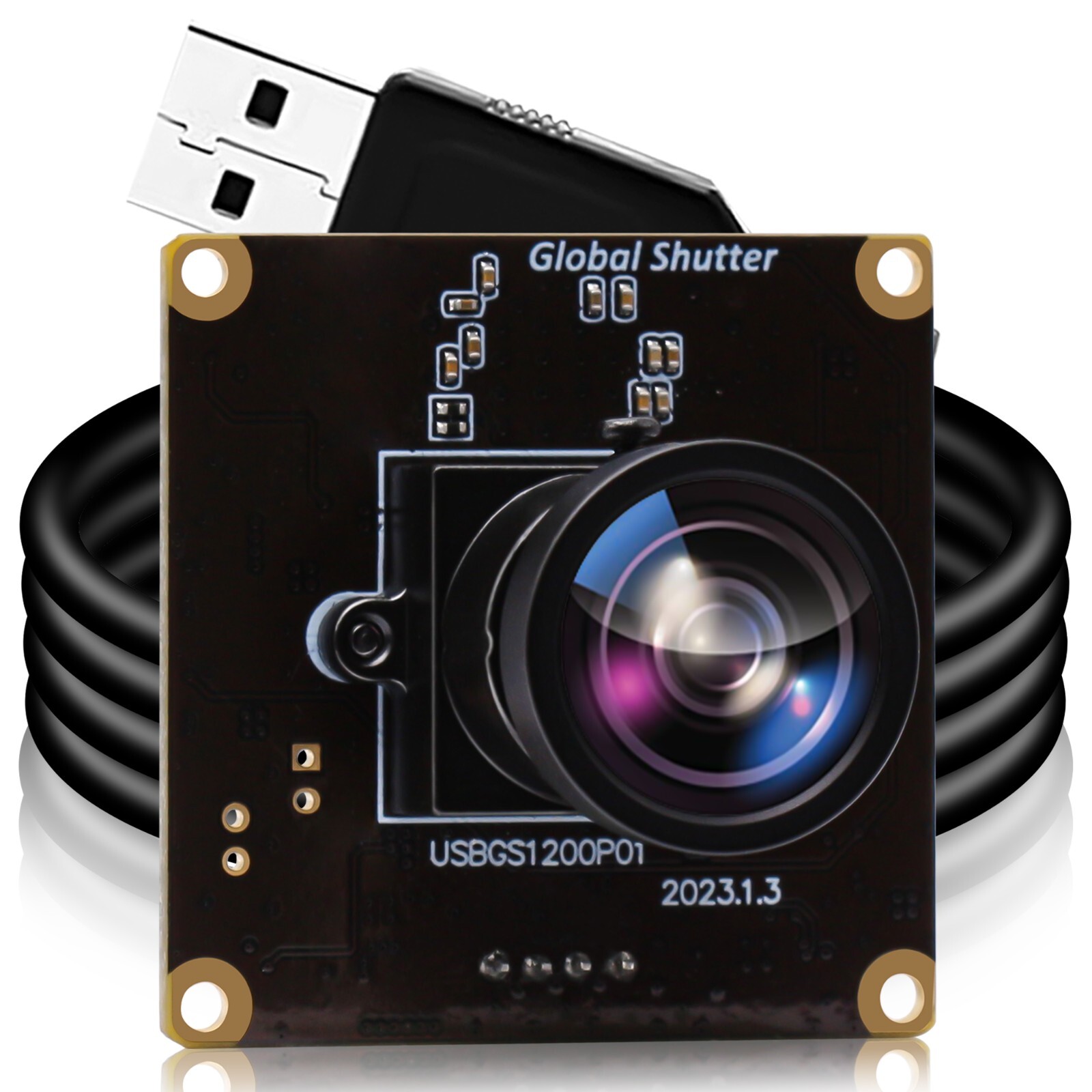

ELP High Speed Wide Angle Global Shutter USB Camera Module for Computer 1080P Mini UVC USB2.0 Webcam Board with 120degree No Distortion Lens AR0234 High Frame 90fps Web PC Camera Board for LaptopPacking Include:
1) 1PC 2.3MP global shutter mini USB Camera Module with 120 degree no distortion lens
2) 1PC 1meter usbcable
3) User Manual
Features:
* Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
* HD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 90fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting. 1080P usb camera module with 1/2.6” Aptina AR0234 high quality sensor for sharp clear image.
* Wide Angle 120degree No Distortion Lens, HFOV about 126degree, mini 38mmx38mm camera board can be installed in most hidden and narrow position, can be used in machine visions for personal or industrial.
* Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
* Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.
Specification:
Model
ELP-USBGS1200P01-L180
Sensor
Aptina AR0234 (1/2.6”) Global Shutter
Max Resolution
1920 (H) *1200 (V)
Sensor Size
1/2.6 inch (4:3)
PixelSize
3.0μm
Compression Format
MJPEG/YUV2 (YUYV)
Resolution& Framerate
1920x1200 @90fpsMJPEG
1600x1200 @90fpsMJPEG
1280x720 @ 90fpsMJPEG
960x720 @ 90fps MJPEG640x480 @ 90fps MJPEG
1920x1080 @ 90fps MJPEG
1280x960 @ 90fps MJPEG
1024x768 @ 90fps MJPEG
800x600@ 90fps MJPEG
320x240 @ 90fps MJPEG
Surface Mount Technology
SMT
Focus
Fixed
Central Definition
600LW/PH (Center)
S/N Ratio
37dB
DynamicRange
70dB
Sensitivity
1.4V/lux-sec@550nm
MiniIllumination
0.3lux
Shutter
Global Shutter
Interface
USB2.0 High Speed
AEC
Support
AWB
Support
AGC
Support
AdjustableParameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure
Lens Parameters
with H120 wide angle no distortion lens (HFOV is about 126degree)
LED board power
connector
Support 2P-2.0mm socket
Power Supply
USBBUSPOWER4P-2.0mm socket
Operating Voltage
DC5V
WorkingCurrent
160mA- 190mA
Dimension
38mm x 38mm
Storage Temperature
-20°Cto80°C
Working Temperature
0°C to 60°C
USBCable
1M(2M/3M/5M ... Optional )
OperatingSystemRequest
Linux withUVC(abovelinux-2.6.26)
MAC-OS X 10.4.8 orlater
Android4.0 or above with UVC
