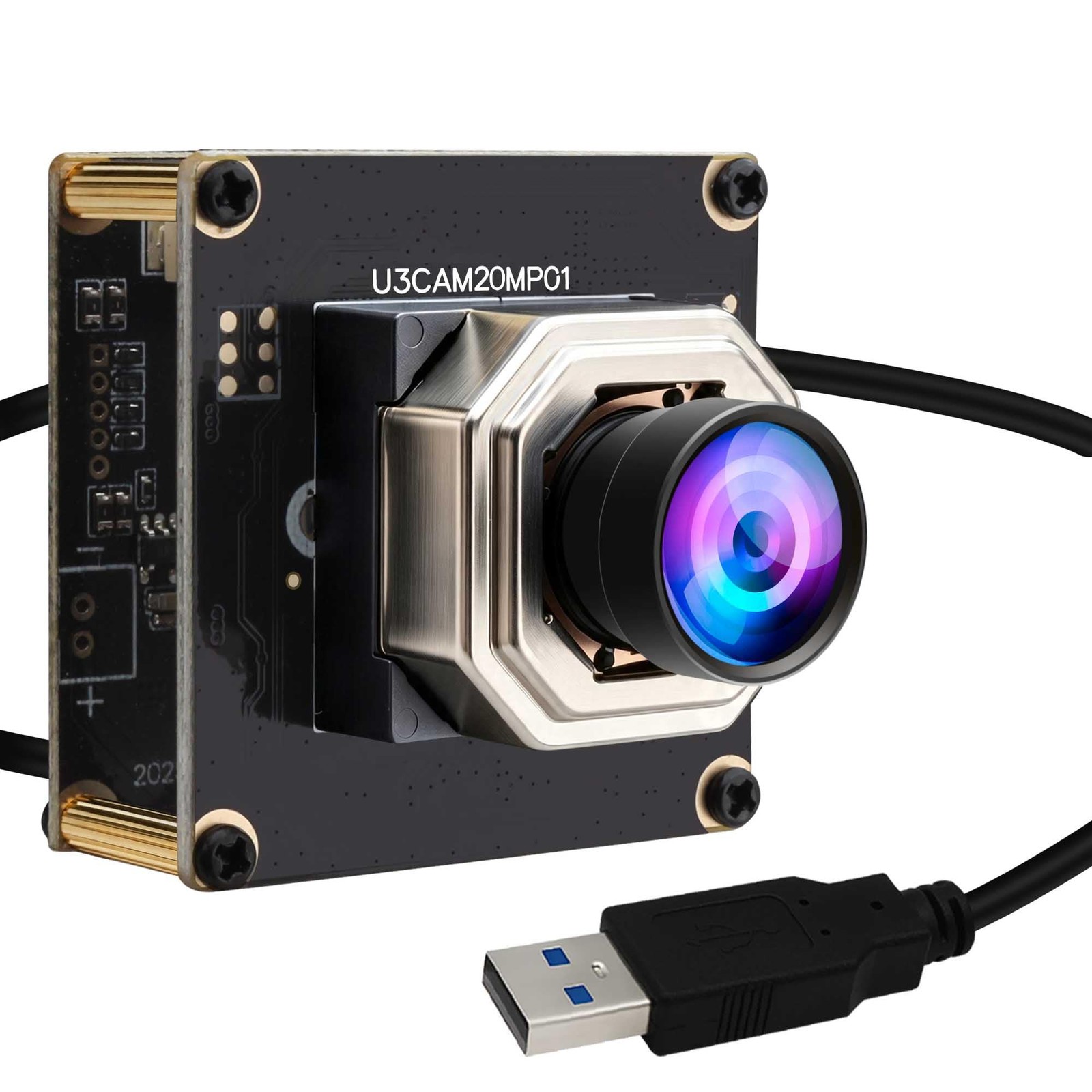

Model: ELP-U3CAM20MP01-AFTV100
Sensor: 1/1.8” Onsemi AR2020
Max/ Default Resolution: 5120(H)*3840(V)
Pixel Size: 2.0µm x 2.0µm
Video Compression: MJPEG / YUY2(YUYV)
Resolution & Frame Rate: (USB 3.0 Interface & Speed)
Under USB 3.0 Interface & Speed:
5120x3840 MJPEG 27.5fps/ YUY2 7.5fps
5120x2880 MJPEG 30fps/ YUY2 10fps
4608x3456 MJPEG 27.5fps/ YUY2 10fps
4096x3072 MJPEG 27.5fps/ YUY2 15fps
4000x3000 MJPEG 27.5fps/ YUY2 15fps
4096x2160 MJPEG 30fps/ YUY2 20fps
3840x2160 MJPEG 30fps/ YUY2 23fps
3264x2448 MJPEG 27.5fps/ YUY2 23fps
2592x1944 MJPEG 27.5fps/ YUY2 30fps
2560x1440 MJPEG 30fps/ YUY2 30fps
2048x1536 MJPEG 27.5fps/ YUY2 27.5fps
1600x1200 MJPEG 27.5fps/ YUY2 27.5fps
1920x1080 MJPEG 30fps/ YUY2 30fps
1280x960 MJPEG 27.5fps/ YUY2 27.5fps
1280x720 MJPEG 30fps/ YUY2 30fps
640x480 MJPEG 27.5fps/ YUY2 27.5fps
Resolution & Frame Rate: (USB 2.0 Speed)
Under USB 2.0 Speed:
5120x3840 MJPEG 20fps
5120x2880 MJPEG 23fps
4608x3456 MJPEG 23fps
4096x3072 MJPEG 27.5fps
4000x3000 MJPEG 27.5fps
4096x2160 MJPEG 30fps
3840x2160 MJPEG 30fps
3264x2448 MJPEG 27.5fps
2592x1944 MJPEG 27.5fps
2560x1440 MJPEG 30fps
2048x1536 MJPEG 27.5fps
1600x1200 MJPEG 27.5fps
1920x1080 MJPEG 30fps
1280x960 MJPEG 27.5fps/ YUY2 7.5fps
1280x720 MJPEG 30fps/ YUY2 10fps
640x480 MJPEG 27.5fps/ YUY2 27.5fps
Central Definition: 1000LW/PH (Center)
S/N Ratio: 41dB
Min illumination: 0.1Lux
Shutter Type: Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type: USB 3.0 Interface
AEC/AWB/AGC Support
Adjustable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance,
Backlight Compensation, Exposure
Lens Parameter
f=3.24mm, No distortion, HFOV is approximately 95°.
Power Supply & Interface
USB Type-C Power Supply, Type-C
Operating Voltage: DC 5V
Working Current: 220-260mA
Dimension: 38x38x49.1mm
Storage Temperature: -20°C to 80°C
Working Temperature:m -10°C to 70°C
USB Cable: 1.2m cable with USB3.0 Type-C port
Operating System Request Win10/Win11 etc.
Linux with UVC;
MAC-OSX10.4.8 or later;
Android5.x or above
Ultra HD 20 megapixel: recording max 5120(H)x3840(V) video and still picture.
Autofocus: automatically sharpens images for objects at different distances, supports macro close-up shooting, ideal for QR scanning & part inspection.
100degree no distortion lens, HFOV about 95degree, wider angle of viewing range.
USB3.0-20Pin high speed interface, USB3.0/2.0 compatible, high performance ISP.
High speed , 4K@30fp, ideal for quick moving objects shooting.
Adapt with 1/1.8” Onsemi AR2020 image sensor for better picture performance, mini usb camera module with 1.2meter/3.96ft USB cable for pc laptop. Min Illumination: 0.1lux.
Mini size, light weight, small outline and thin profile for embedded machine vision.
UVC Compliant: Compatible with Windows, Linux, Mac OS and Android system, raspberry pi, Ubuntu,Open CV, VLC. USB2.0 Plug and Play without extra driver or specific software required.
Applications: 20mp mini auto focus usb camera module is highly recommended for a home surveillance system, dash cam, baby camera, monitoring 3D printer, video recording, bar code QR code identification and scan, mini lightburn camera for laser engraver/cutter, or other machine vision applications which demand high resolution.
