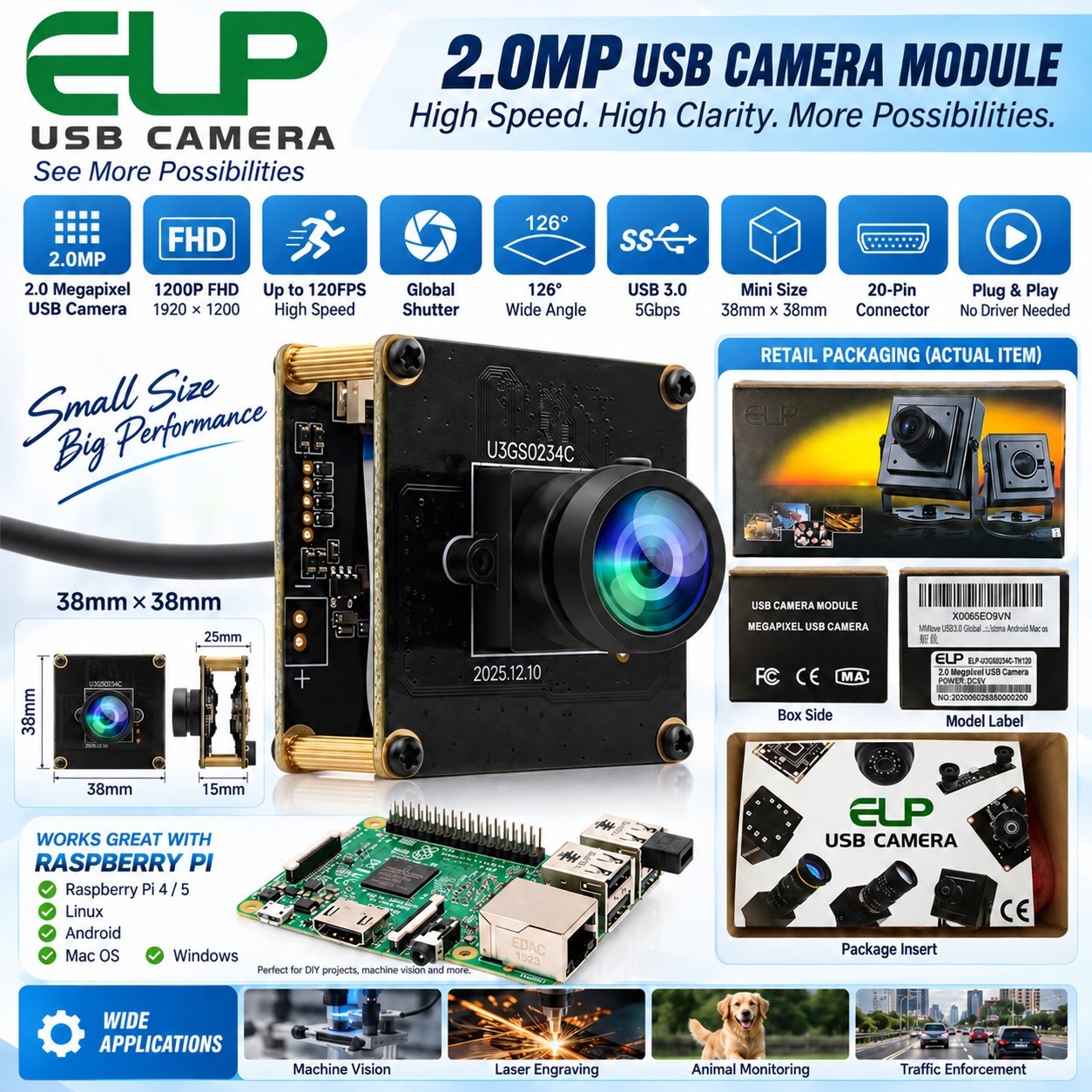

ELP U3GS0234C-TH120 USB 3.0 Camera Module AR0234 • 1920 × 1200 • 120 FPS • Global Shutter • 126° Wide Angle New and unused ELP high-speed USB 3.0 camera module.
Compact global-shutter camera designed for machine vision, high-speed imaging, robotics, inspection, DIY electronics and other compatible UVC camera applications. Condition New and unused. The retail box was not manufactured with an outer factory seal. The camera module remains exactly as packaged by the manufacturer, wrapped in pink anti-static protective bubble wrap and secured with the original manufacturer-applied tape. The protective wrapping and tape have intentionally not been removed or disturbed so the camera can remain in its original new, unused condition. The exterior retail box may show minor storage or handling wear. Please review the actual seller photos for the exact packaging and condition. Key Features
ELP U3GS0234C-TH120 - AR0234 image sensor
- Global shutter design
- 1920 × 1200 maximum resolution
- Up to 120 FPS high-speed capture
- 126° wide-angle field of view
- Low-distortion / no-distortion wide-angle lens design
- USB 3.0 high-speed interface
- UVC plug-and-play support
- Fixed focus
- M12 lens
- 20-pin connector
- Compact approximately 38 × 38 mm board size
- DC 5V operation
Technical Specifications Brand ELP Model U3GS0234C-TH120 MPN ELP-U3GS0234C-TH120 Image Sensor AR0234 Shutter Type Global Shutter Maximum Video Resolution 1920 × 1200 Maximum Photo Resolution 1920 × 1200 Maximum Frame Rate Up to 120 FPS Field of View 126° Wide Angle Focus Fixed Focus Lens Mount M12 Interface USB 3.0 Connector 20-Pin Power DC 5V Width Approx. 38 mm / 1.50 in Height Approx. 38 mm / 1.50 in Overall Depth / Length Approx. 25 mm / 0.98 in including lens Color Black Country of Origin China Global Shutter
The AR0234 global-shutter design is intended for applications involving movement where reducing rolling-shutter distortion is important. This makes the camera useful for machine vision, motion imaging, inspection and similar applications.
High-Speed USB 3.0
The USB 3.0 interface provides the bandwidth needed for higher-resolution and higher-frame-rate camera operation.
Manufacturer information lists support for up to 120 FPS at 1920 × 1200. Available resolutions and frame rates can vary depending on the host device, software, selected video format and USB connection.
Compatibility
Designed as a UVC plug-and-play USB camera for compatible systems. Manufacturer materials reference Windows, Linux, macOS, Android, Ubuntu and Raspberry Pi environments.
Compatibility can vary depending on the host hardware, operating system, USB controller and camera software being used. Please verify compatibility with your intended application before purchasing.
Example Applications Machine vision
High-speed motion imaging
Industrial inspection
Robotics
Laser engraving and equipment monitoring
Animal monitoring
Traffic and vehicle imaging applications
Raspberry Pi and DIY electronics projects Original Manufacturer Packaging The camera module remains wrapped in its original pink anti-static protective bubble wrap and secured with the manufacturer-applied tape. The protective wrapping and tape have intentionally been left intact rather than removing the camera for additional photographs. This preserves the item's original new and unused condition. Photo & Contents Information Some listing photos are manufacturer reference images used to demonstrate the camera's appearance, specifications, dimensions, features and example applications. The actual camera being sold has intentionally not been removed from its manufacturer-applied anti-static protective wrapping for photographs. Raspberry Pi boards, computers, vehicles, laser equipment and other equipment shown in manufacturer demonstration images are not included. Please refer to the actual seller photos for the retail packaging and the manufacturer-wrapped camera being sold. Product Identification
The physical manufacturer label identifies the camera as ELP-U3GS0234C-TH120 and states 2.0 Megapixel USB Camera. Maximum listed resolution is 1920 × 1200.
Shipping
The item will be carefully packed to help protect the camera and original retail packaging during shipment.
Tracking will be uploaded through after shipment. Item will ship by the handling date shown on the order.
New • Unused • Original Manufacturer Protective Packaging Manufacturer-applied anti-static wrapping and tape remain intact. Over 20 years of buyer satisfaction!
