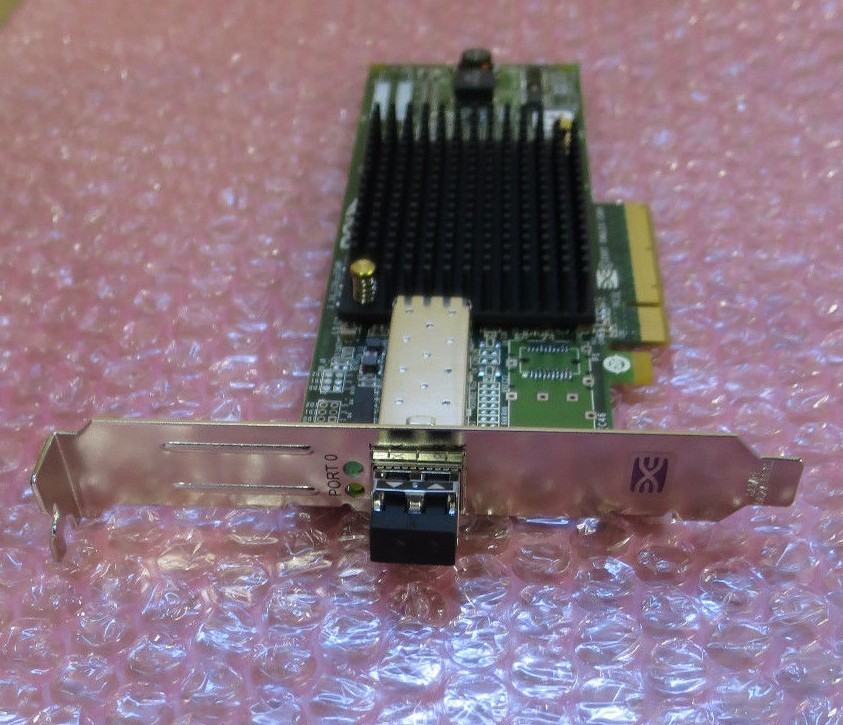

EMULEX LIGHTPULSE LPE1250 8Gb/s FIBRE CHANNEL PCI-E SINGLE CHANNEL HBA NEW
New Pulls from new servers Low profile card with full height bracket. Unparalleled manageability, reliability, performance and ease of deployment Streamlined installation and management, unrivaled scalability and industry-leading virtualization support make the single-channel Emulex LightPulse LPe1250 Fibre Channel Host Bus Adapter (HBA) an ideal solution for enterprise, mixed-operating system (OS) and virtual server environments. With powerful management capabilities and broad platform support, they deliver maximum performance in the broadest range of applications and environments. Proven design, architecture and interface Emulex LightPulse HBAs' highly integrated processor design minimized onboard components to improve host performance and efficiency. Advanced error-checking features ensure the integrity of block data as it traverses the Storage Area Network (SAN). Emulex's firmware-based architecture enables feature and performance upgrades without costly hardware changes. The unique Service Level Interface (SLI™) allows use of a common driver across all models of Emulex HBAs on a given OS platform. Installation and management facilities are designed to minimize server reboots and further simplify deployment. Key Features - PCIe 2.0 bus-compliant, with PCIe 1.0 backward compatibility supported
- Support for Message Signaled Interrupts eXtended (MSI-X), improves host utilization & enhances application performance
- Support for 8Gb/s, 4Gb/s and 2Gb/s Fibre Channel devices
- Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV) and Virtual Fabric
- Host-to-Fabric FC-SP - ensures end-to-end data integrity
- Common driver model allows a single driver to support all Emulex HBAs on a given OS
- Easy deployment of new firmware with minimal server reboots
- Efficient centralized administration of Emulex HBAs via powerful management tools
Key Benefits - Provides superior performance for the enterprise
- Integrates seamlessly into existing SANs
- Supports IT server consolidation and energy conservation initiatives
- Allows application of SAN best practices, tools and processes with virtual server deployments
- Assures data availability and data integrity
- Improves IT staff productivity through simplified deployment and management
Performance Features - Doubling the maximum Fibre Channel link rate from 4Gb/s to 8Gb/s and enhanced virtualization capabilities help support IT "Green" initiatives
- Frame-level multiplexing and out-of-order frame reassembly increases link efficiency and maximizes HBA performance.
Data Protection Features - End-to-end data protection with hardware parity, CRC, ECC and other advanced error-checking and correcting algorithms ensure data is safe from corruption.
Deployment and Management Features - Universal boot capability allows the appropriate boot environment to be automatically selected for any given hardware.
- Boot-from-SAN capability reduces system management costs and increases uptime.
- Detailed real-time event logging and tracing enables quick diagnosis of SAN problems.
- Beaconing feature flashes the HBA LEDs, simplifying their identification within server racks.
- Environmental monitoring feature helps to optimize SAN availability.
Standards - ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC-FS-2/AM1, FC-LS, FC-AL-2, FC-GS-6, FC-FLA, FC-PLDA, FC-TAPE, FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and SMI-S v1.1
- PCI Express base spec 2.0
- PCI Express card electromechanical spec 2.0
- Fibre Channel class 2 and 3
- PHP hot plug-hot 4Gb/s or 2Gb/s FC link speeds automatically detected
- Integrated data buffer and code space memory
Comprehensive OS Support - Windows, Linux, NetWare, VMware
- View OS versions and available drivers
Hardware Environments - x86, x64 and Intel® Itanium® 64-bit processor family
Optical - Data rates: 2.125, 4.25 and 8.5Gb/s (auto-detected)
- Optics: Short wave lasers with LC type connector
- Cable: Operating at 8Gb/s
- 50/125 microns (500MHz*km BW) up to 50m
- 50/125 microns (2000MHz*km BW) up to 150m
Physical Dimensions - Short, low profile MD2 form factor card
- 167.64mm x 68.91mm (6.60" x 2.71")
- Standard bracket (low profile available)
Power & Environmental Requirements - Volts: +3.3, +12
- Operating temperature: 0° to 55°C (32° to 131°F)
- Airflow required: 150 lf/m'
- Storage temperature: -40° to 70°C (-40° to 158°F)
- Relative humidity: 5% to 95% non-condensing
- 23 degree C wet bulb
Agency Approvals - Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
- UL recognized to UL 60950-1
- CUR recognized to CSA22.2, No. 60950-1-03
- Baurt-certified to EN60950-1
- FCC Rules, Part 15, Class A
- ICES-003, Class A
- EMC Directive 2004/108/EC (CE Mark)
- EN55022, Class EMC Framework (C-Tick Mark)
- VCCI (Japan), Class A
- MIC (Korea), Class A
- BSMI (Taiwan), Class A
- EU RoHS Compliant (Directive 2002/95/EC)
- China RoHS Compliant
Additional Features- Performance Features
- Doubling the maximum Fibre Channel link rate from 4Gb/s to 8Gb/s and enhanced virtualization capabilities help support IT “Green” initiatives
- Frame-level Multiplexing and out-of-order frame reassembly increases link efficiency and maximizes HBA performance.
- Data Protection Features
- End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking and correcting algorithms ensure data is safe from corruption
