Feature:

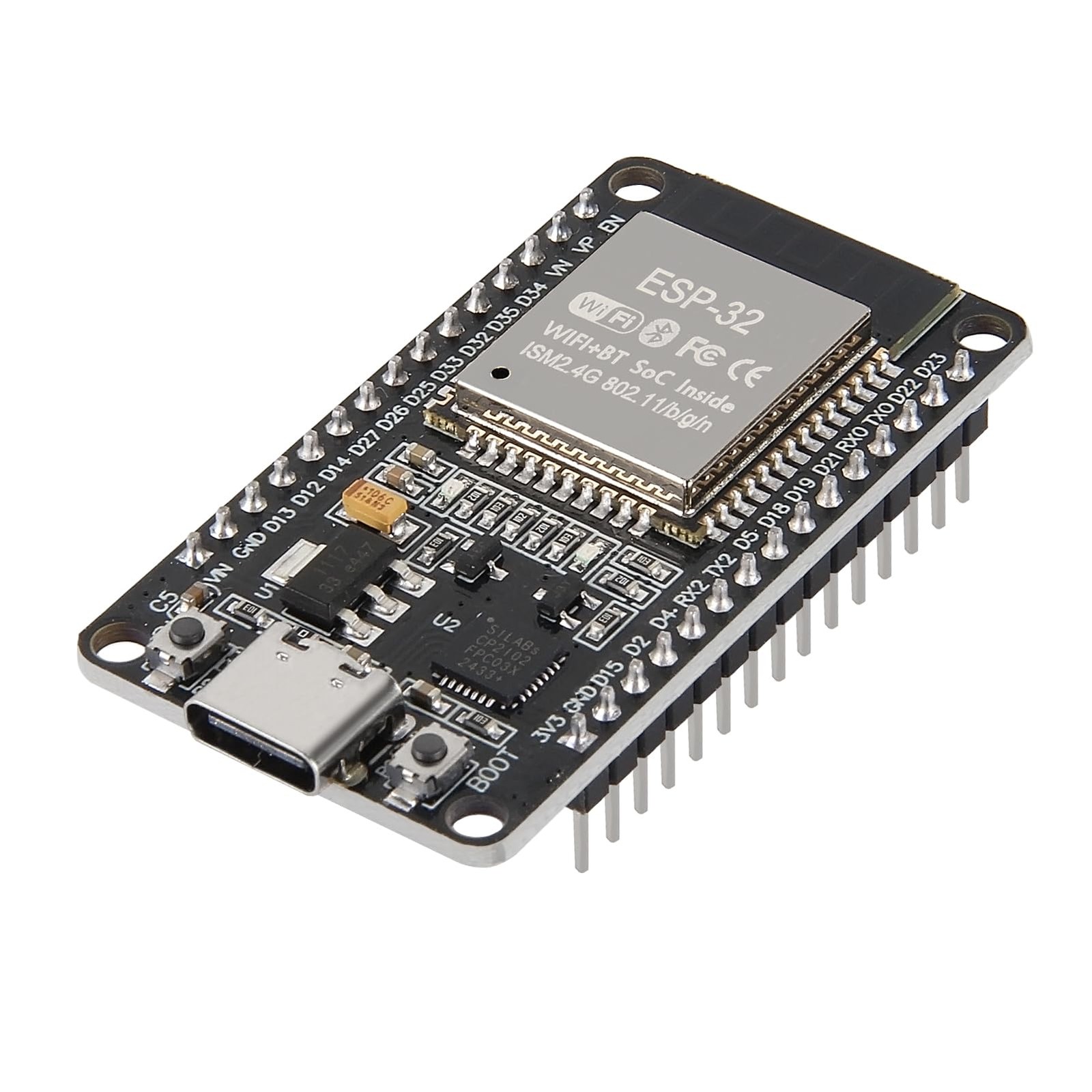

• This ESP32 CP2012 USB C development board supports STA/AP/STA+AP working modes, bringing you a lot of convenience.ESP32 development board integrates antenna switches, RF balun, power amplifiers, low noise amplifiers, filters and power management modules.

• Support STA/AP/STA+AP mode;
• Low power dual core 32-bit CPU, which can be used as application processor;
• The module is the ESP- WROOM-32 development board, and the ESP- WROOM32 parameter characteristic is also the parameter characteristic of the module.

Specification:

• SPIFlash: default 32Mbit

• Supporting interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC
• On chip sensors: Hall sensor, temperature sensor, capacitive touch sensor
• IO port: 22pcs
• Power consumption: 300mA 3.3V
• Security: WPA / WPA2 / WPA2 Enterprise / WPS
• Power supply range: USB power supply: 5V pin power supply: 5.0V~12V
• Working temperature: - 20 ~ 85 ℃

Package includes:

1 x ESP32 CP2012 USB-C (Type-C) Development Board Module
