Description
ESP32-P4 Smart 86 Box Development Board, Based On ESP32-P4 Controller With RISC-V 32-bit Dual-core And Single-core Processors, Onboard 4inch 720 × 720 Pixel Touch Display, 5-point Touch ESP32-P4 Smart 86 Box
ESP32-P4-WIFI6-Touch-LCD-4B

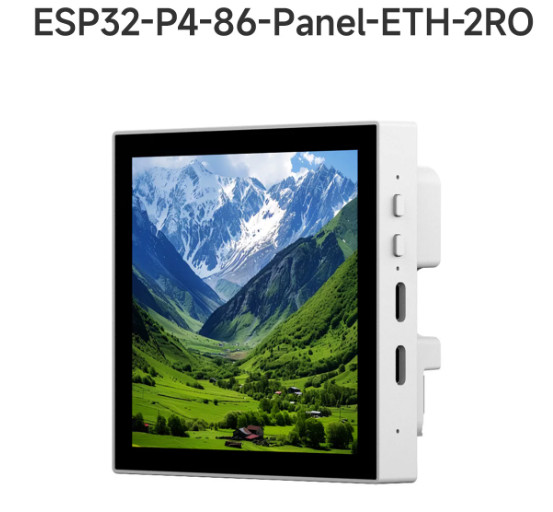

ESP32-P4-86-Panel-ETH-2RO
Features
This product series is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors, onboard 4inch 720 × 720 resolution IPS touch display. It features rich Human-Machine interfaces including MIPI-CSI (with integrated Image Signal Processor), and supports USB OTG 2.0 HS for high-speed communication.
It also integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.
* only available on ESP32-P4-86-Panel-ETH-2RO version 2-Channel Relay * this function is only available on ESP32-P4-86-Panel-ETH-2RO version
Relay Specifications Contact rating ≤10A 250V AC or ≤10A 30V DC Relay channels 2 Contact form 1 NO, 1 COM Isolation Optocoupler Isolation Relay connection * this function is only available on ESP32-P4-86-Panel-ETH-2RO version
100M RJ45 Ethernet Port * this function is only available on ESP32-P4-86-Panel-ETH-2RO version
* When connecting the network cable, the depth of the 86-type back box should be considered. A short-body RJ45 connector cable is recommended.
Installation diagram * the 86-type back box and screws are NOT included
Audio input/output
Smart Switch
Human-Machine Interface
Smart Home Terminal
ESP32-P4-WIFI6-Touch-LCD-4B ESP32-P4-WIFI6-Touch-LCD-4B × 1
ESP32-P4-86-Panel-ETH-2RO ESP32-P4-86-Panel-ETH-2RO × 1
