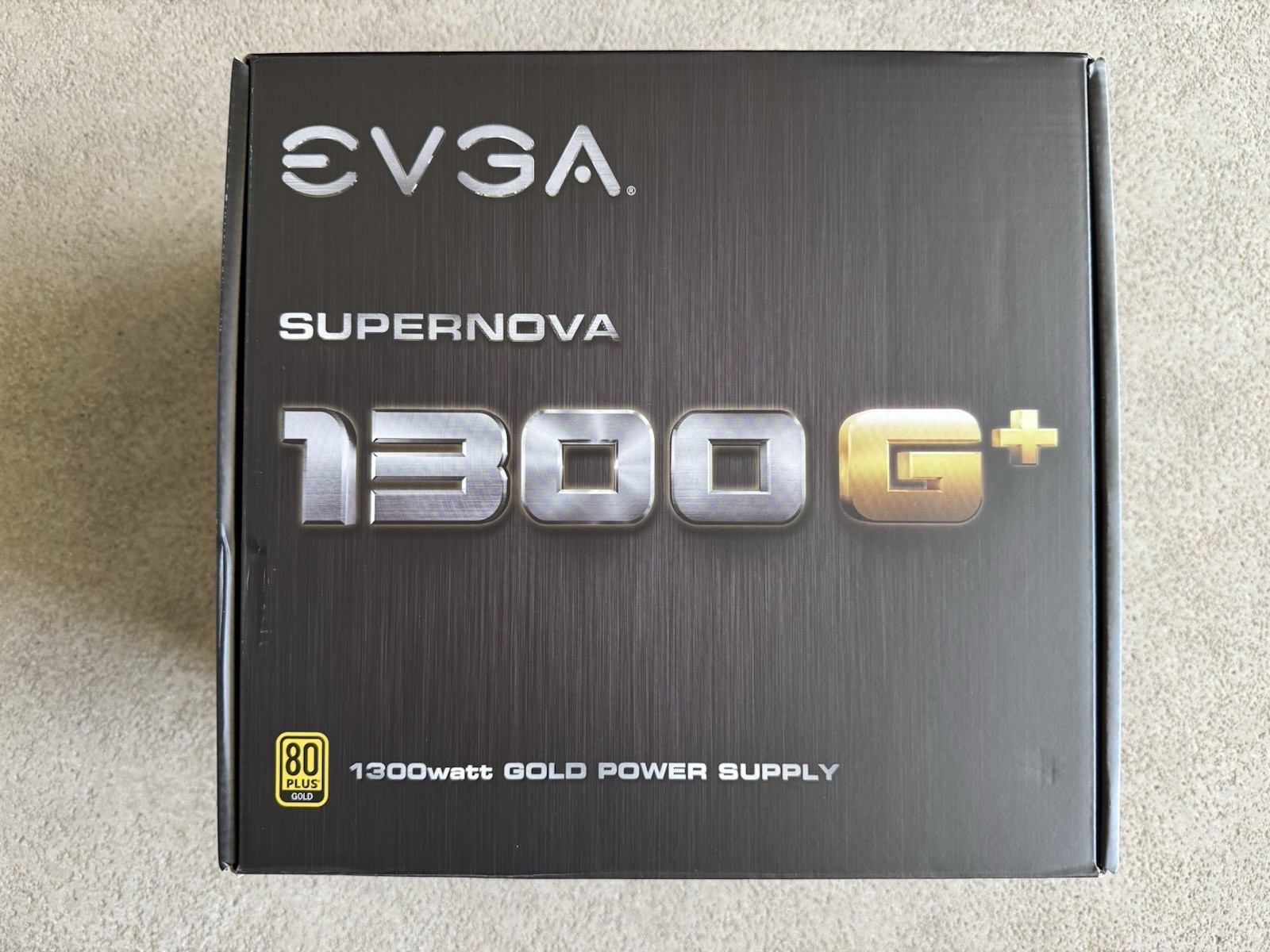

EVGA SuperNOVA 1300 G+, 80+ GOLD 1300W, Fully Modular, Includes FREE Power On Self Tester, Power Supply - 220-GP-1300-X1
*****US ONLY CUSTOMERS WITH CONFIRMED US SHIPPING ADDRESS*****

• 80 PLUS Gold certified, with 90% efficiency or higher under typical loads
• Fully Modular to reduce clutter and improve airflow
• 100% Japanese Capacitors, +DC-DC Converter design to improve 3.3V. / 5V. Stability
• Fluid Dynamic Bearing Fan and EVGA ECO Mode for ultra-quiet operation and increased lifespan

General

• Brand EVGA
• Series SuperNOVA 1300 G+
• Model ATX12V / EPS12V
• Maximum Power 1300 W
• Fans 1 x 135mm Fluid Dynamic Bearing Fan
• PFC Active
• Main Connector 20+4Pin
• +12V Rails Single
• PCI-Express Connector 8 x 6+2-Pin
• SATA Power Connector 12
• Haswell Support Yes
• Max PSU Length 200 mm
• Modular Full Modular
• Efficiency 90% or higher (under typical load)
• Energy-Efficient 80 PLUS GOLD Certified
• Protection Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Input Voltage 100 - 240 V
• Input Frequency Range 50/60 Hz
• Input Current 15 - 8 A
• Output +3.3V@24A, +5V@24A, [email protected], [email protected], +5Vsb@3A
• MTBF >100,000 Hours
• Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement
• Connectors 1 x 24 Pin ATX (20+4)
• 2 x 8 Pin EPS (4+4)
• 8 x 8 Pin PCIe (6+2)
• 12 x SATA
• 6 x Four-Pin Peripheral
• 1 x The SuperNOVA G+ is the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 G2 and 1300 G2 power supplies left off and continue the tradition of EVGA quality and performance. Additionally, the SuperNOVA G+ power supplies feature a cleaner internal layout, a Variable Resistor module, two DC to DC modules for more efficient power switching, EVGA ECO Mode, a full suite of power supply protections, and EVGA’s World-Leading Global 10-Year Warranty on all G+ power supplies.
• EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
• 80 PLUS Gold certified, with 90% efficiency or higher under typical loads.
• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Dimension & Weight

• Dimensions 3.39" x 5.91" x 7.87"
• Weight 3.3 lbs.

Details

• PFC Active
• SLI No
• CrossFire No

Connectors

• SATA Power Connector 12
