EVOLIS Tattoo RW Rewrite MAG CR-80 Single-sided ID Card USB Printer NO PRINTHEAD

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.

*** PRINTHEAD NOT INCLUDED ***

WILL NOT PRINT WITHOUT INSTALLING A NEW PRINTHEAD

THE PRINTER IS TECHNICAL OK, ONLY PRINTHEAD AND POWER SUPPLY ARE MISSING

Works with Windows XP, Vista and 7.

USB INTERFACE

ATTENTION: Please be aware this isNOTa standard label printer, the printer doesNOTwork with ribbons, it does work with thermal cards. Pleaseknowwhat you are buying!!


EXCLUDING PRINTHEAD, EXCLUDING POWER SUPPLY, EXCLUDING CABLES, EXCLUDING SOFTWARE

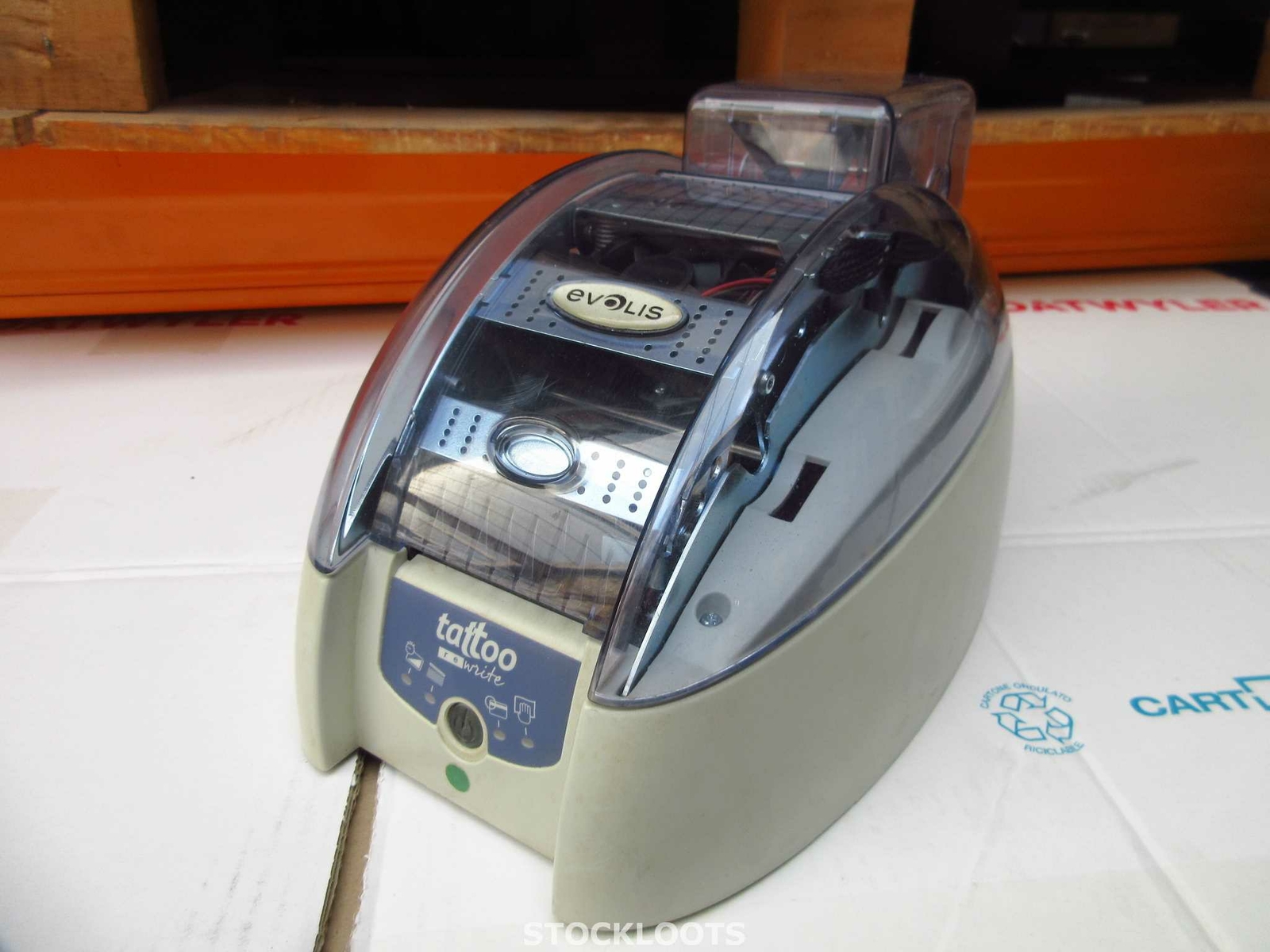

See photos for actual item!

Price is for 1 item.

General specifications

• 300 dpi print head for premium quality printing (11.8 dots/mm) (NOT INCLUDED)

• USB &Parallel connections

• 16 MB RAM

• Detachable feeder with a capacity of 100 cards (0.76 mm or 30 mil)

• 1-Button and 4-LED control panel

• Brilliant Blue cover

Encoding options

• HiCo/LoCo Magnetic stripe encoder ISO 7811 or JIS2

• Contactless encoder ISO14443A & B, Mifare, DesFire (USB connection)

Print Mode

• Direct thermal printing and erasing on rewritable material

• Maximum print area: 48 mm x 76 mm (1.89" x 2.99")

Erasing & Printing speed

• 8 seconds (manual)

• 12 seconds (card feeder)

• 3-Track ISO magnetic encoding: 4 seconds per card

Card feeding

• Manual card insertion and delivery

• Card-feeder insertion and delivery to removable hopper

• Automated Mode: selects a card from the feeder if no card is inserted manually

Card format

• CR-80 – ISO 7810 (53.98 mm x 85.60 mm – 2.125" x 3.37")

Card type:Rewritable thermochromic material

• Mitsubishi Black & Blue

• Ricoh upon request

• Other material upon request and validation

• Card thickness: from 0.5 mm to 0.76 mm (20 to 30 mil)

Resident fonts

Arial 100, Arial bold 100

Barcode – Code 39, 2/5 interleaved

Supported platforms

• Windows 7 (32 & 64 bits), XP and Vista (32 & 64 bits)

• Windows 2003 Server and Windows 2000 drivers available upon request - depending on system configuration

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
