Description:

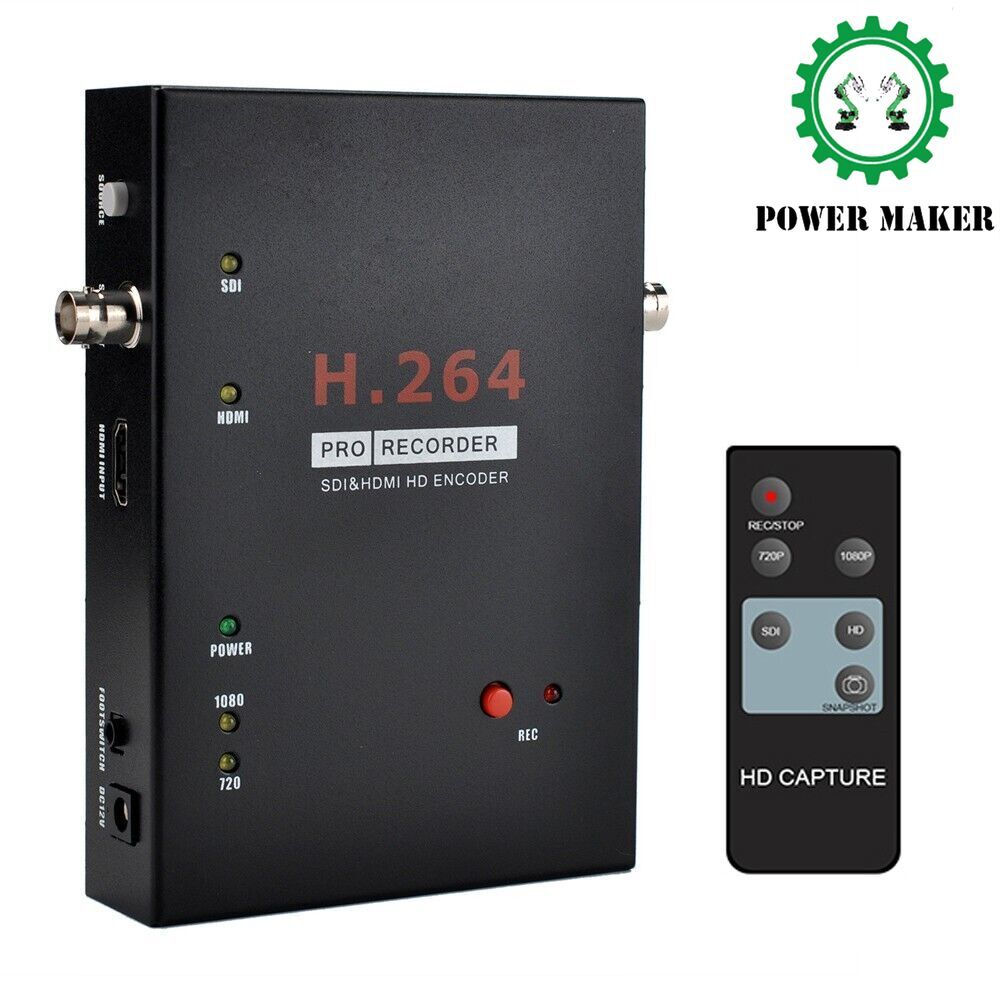

1. SDI and HDMI input, recording 1080P viedo with one click, no PC required.
2. You can set the record quality between 720p and 1080p.
3. Pass through function, you can continue to play or watch while recording.
4. With remote control and remote expand cable to operate with remote, select the video source and change the record quality. Also with snapshot function.
5. Add FOOTSWITCH interface, recording and stop by foot control.
6. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, game play, etc.
NOTE: please note that you can NOT play recorder videos on this device, you can ONLY record to your storage device (USB key, hard drive), to play the recorded files, you need to take your storage media out of the device to a computer or media player.
Interface Application:
HDMI Port:Industrial HD camera video camera, HD medical endoscopes, set-top boxes, game, etc.
SDI Port:Industrial HD camera video camera, HD medical endoscopes,etc.
NOTE: HDCP protected content can not be recorded.
Specification
Connections
Interface
USB 2.0 Host
Video Input
HDMI, SDI
Audio Input
HDMI, SDI
Video Output
Digital: HDMI (Pass through from HDMI and SDI), SDI (Pass through from SDI)
Applicable Connections with Game Consoles
HDMI
Industry HD camera, HD Medical endoscope, TV, gameplay, etc
SDI
HD camera, HD Medical endoscope
Note: protective contents cannot be recorded.
Hardware Extra
Codec
H.264 Hardware encoder
User Interface
Record button, 720p/1080p switch button, source change button.
LED indicator for working status.
3.5mm expand port for remote controller
Weight
375g
Dimension
132*104*27mm
Package Contents
Device
ezcap286 HD Video
Others
DC adaptor, USB cable, remote controller, remote expand cable, Manual
Parameters
Storage Media
USB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T, SD / 64G
Note:The exFAT format is not supported.
Resolution
Input / Pass-through:720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Recording:720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note:Upscaling is not supported.
Record Format
Video: MP4, Audio: AAC Stereo
Record Quality
Max: 18Mbps@1080P 30fps
Record File
Max: 2GB / Per File, With RTC (Real Time Clock)
Record Place
Max: 140MB / Minute, 8.4GB / Hour
Power Supply
USB DC 12V / 3A
Applications
Software
Arcsoft Showbiz
Video Editing
Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video Export
Upload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating System
Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPU
Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory
4 GB RAM
Graphics Card
VGA card with support for DirectX 10.0c or above
